2017-2020 Raptor 2.5" Leveling Kit (66-2755)

Fits

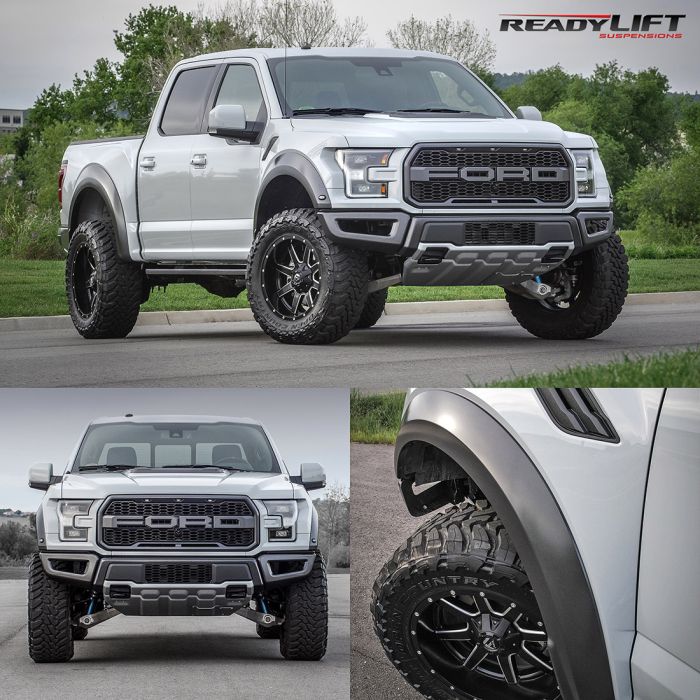

The epitome of off-road performance, these Raptors are formidable machines across any terrain. ReadyLift has engineered this 2.5" SST Leveling Kit to further improve the legendary Raptor platform. Fully bolt-on billet aluminum components work with the factory internal bypass coilovers and won't exceed the manufacturer's maximum recommendation for droop and compression.

Part Number: 66-2755

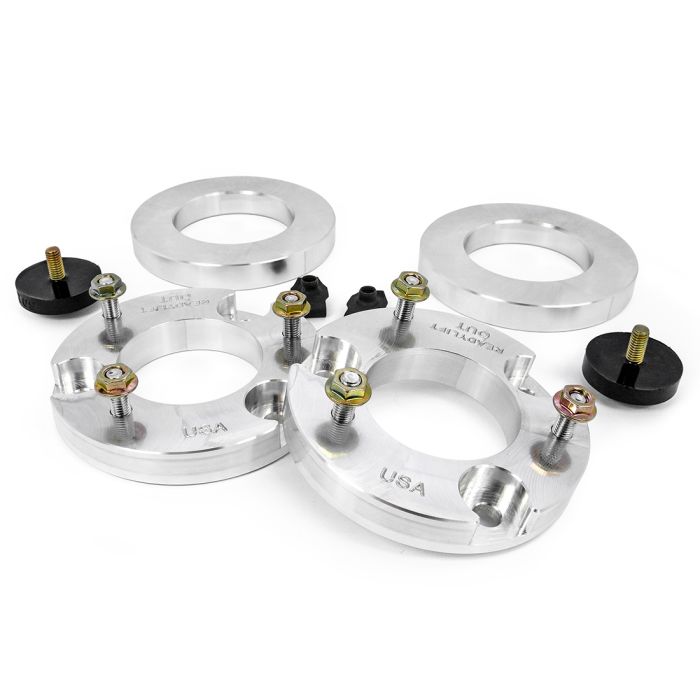

• 2 CNC-machined 6061 T6 billet aluminum construction top mount strut extensions
• 2 CNC-machined billet spring pre-load spacers
• Includes control arm bump stops
• Still maintains a very minor rake
• Maintains factory ride and handling

Tire Fitment:

• 37-12.5 on the 66-2755 and 69-2755 kits with minor trimming
• Wheel offsets: +25 up to 0 on a 20 x 9 wheel
• The factory offset of this truck is a +34 on a 17 x 8.5" wide wheel

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
