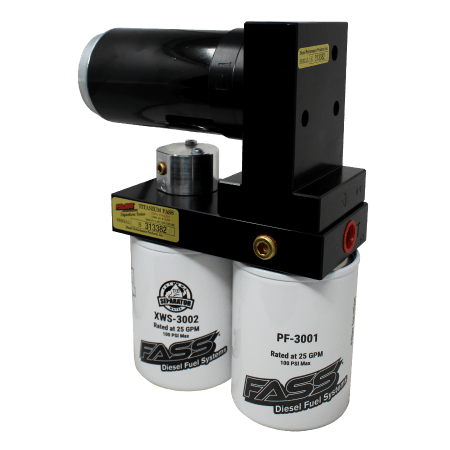

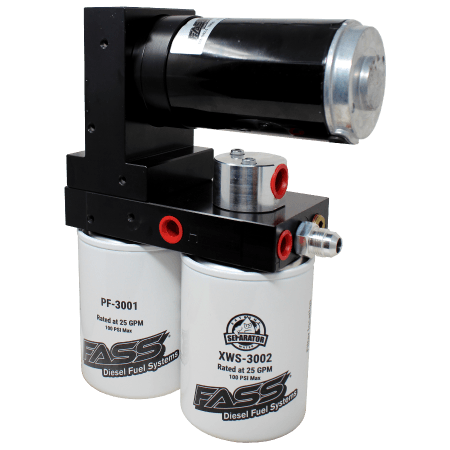

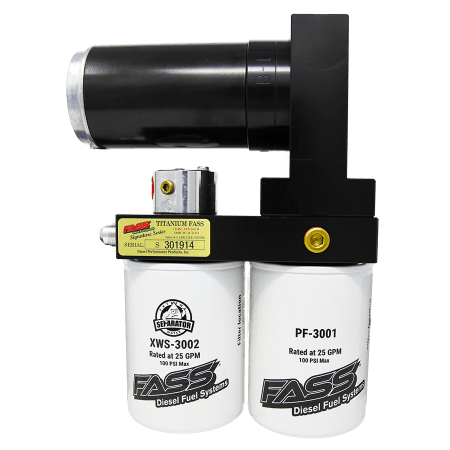

2017-2019 Duramax Titanium Signature Series 240GPH Lift Pump (TSC13290F240G)

Fits

Power Rating: 900 - 1200hp

Flow Rating: 240 Gallons Per Hour (GPH)

Preset Fuel Pressure: 70-75 PSI

Filter Life Expectancy: 30,000 Mile

Filtration Rating: 2 Micron

Warranty: Limited Lifetime Warranty

This Titanium Signature Series diesel fuel lift pump was engineered by FASS Fuel Systems to be the top-performing, longest lasting and most reliable aftermarket filtration system in the diesel industry. Rated at 240 gallons per hour and backed by a limited lifetime warranty this Titanium Signature Series lift pump is capable of supporting your L5P Duramax with enough fuel to support up to 1200hp!

This Titanium Signature Series lift pump also offers advanced filtration benefits that will help protect your injection systems, effectively extending the life of both your Injection Pump and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and FASS Fuel Systems patented air/vapour removal process. Aftermarket lift pumps are important for both daily drivers and high-performance Duramax when looking to improve either fuel economy or increase horsepower/torque.

Part Number: TSC13290F240G

Superseded Part Number: TSC13240G
Previously Superseded Part Number: TS C13 240G

• New Whisper Technology
• New Bolt-on Bracket Installation
• Protects & Extends Injector Life
• Improved Cold Weather Starts
• Quietest Motor on the Market
• Decreases Emissions
• Smoother Idle
• Extends Fuel System Life
• Improved Fuel Mileage & Volume Delivery
• 1/2" Fuel Lines & Ports
• Fuel Mileage Improvement
• Limited Lifetime Warranty
• 1,000,000 Mile Motor
• 30,000 Mile Filter Life Expectancy

WARNING! This System is designed for the 2017-2019 L5P Duramax WITH AFTERMARKET TUNING!! If the truck is not equipped with an aftermarket tune and the ability to delete specific codes, the vehicle will have a MIL after the FASS installation. Contact us before the FASS installation to confirm we are able to delete specific diagnostic codes.

• Click Here

FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.

Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminium housing.  This prevents the reintroduction of air and vapour back into the fuel and to prevent eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System.  This has now been simplified with FASS's new bolt on brackets that utilize your trucks factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series System takes only minutes and all brackets are made from machined steel for superior support and strength.

Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapour, and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help ensure “EXTREME” cold weather operations!
