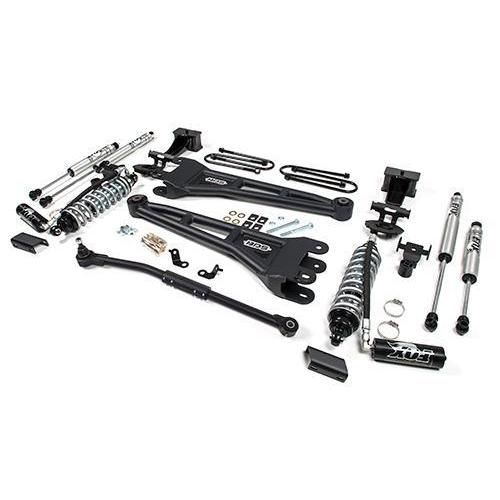

2017-2019 Powerstroke 2.5" Coilover Radius Arm Lift Kit (BDS1543F)

Click here to customize this Kit

Fits

Built to take full advantage of the factory suspension design, these 4" radius arm systems paired with Fox 2.5 Series Remote Reservoir Coilovers correct suspension, steering, and driveline geometry with room for 35" tires. The arms bolt into the factory mounting points and reposition the front axle to correct the caster angle. Only the best quality materials & relevant parts go into BDS Kits; which means less maintenance, less time looking, and less confusion for you. Everything you need to take your new Super Duty to the next level.

Part Number: BDS1543F

• Fox 2.5 Series Remote Reservoir coilovers
• OE-style rubber bushing for quiet operation & no need for maintenance
• BDS radius arms provide strength & caster correction
• HD 1-3/8" solid stock adjustable track bar
• 4" replacement lift block
• Front auxiliary and rear FOX 2.0 performance series IFP shocks
• Bump stop extensions to properly limit up travel
• Sway bar & brake line relocation brackets
• Allows clearance for 35" tires

Tire & Wheel Combinations:

• 35" x 12.50 w/ 17 x 9 and 5"
• 35" x 12.50 w/ 18 x 9 and 5"
• 35" x 12.50 w/ 20 x 9 and 5"

• Coilovers are designed for diesel applications only.
• Mounting larger tires on factory wheels is not recommended due to potential brake line clearance issues.
• Factory track bar mounting bolt requires 405 ft-lbs of torque, plan ahead on how to achieve this torque spec.

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
