2017-2019 Powerstroke 6" Radius Arm Lift Kit (BDS1580H)

Fits

Click here to Customize this Kit

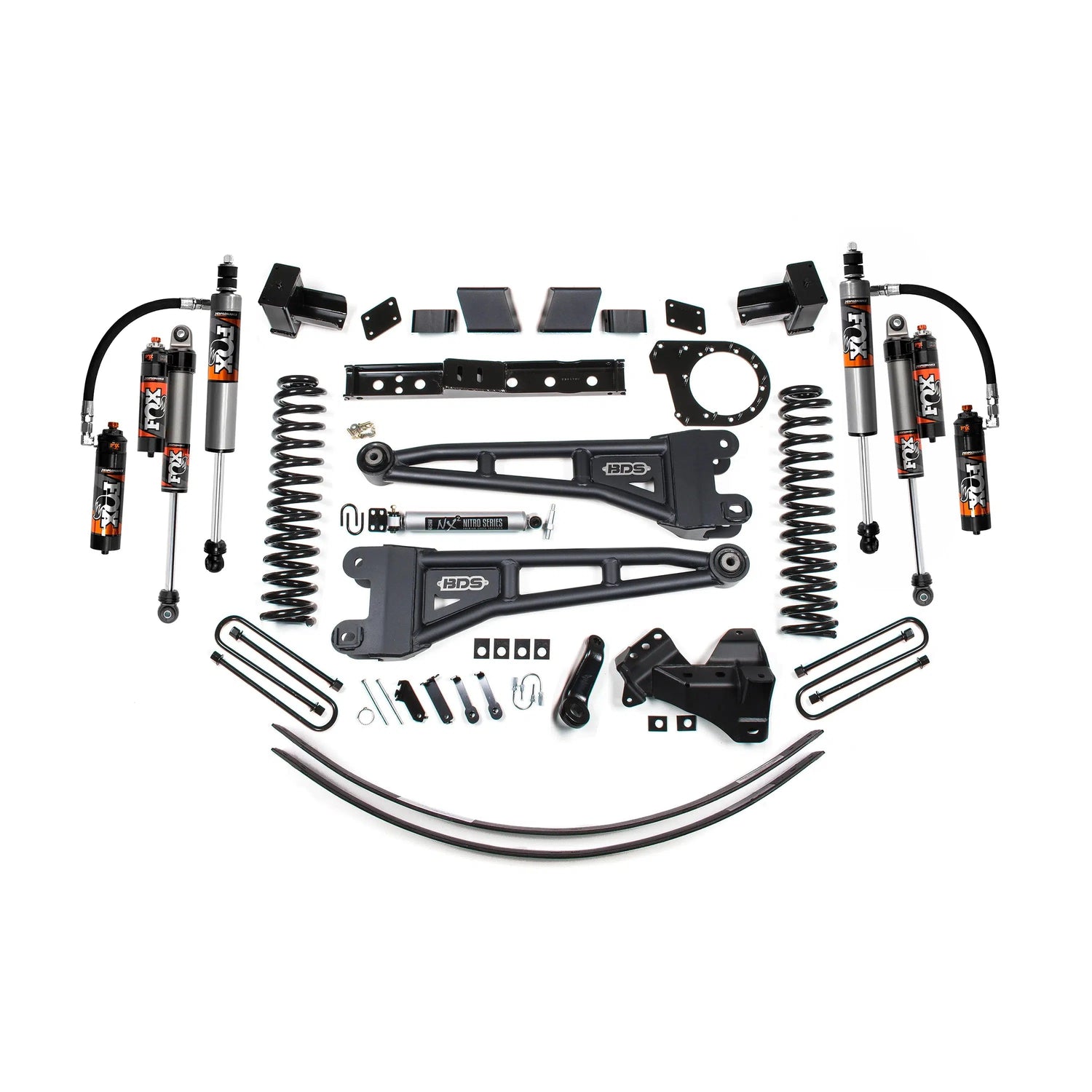

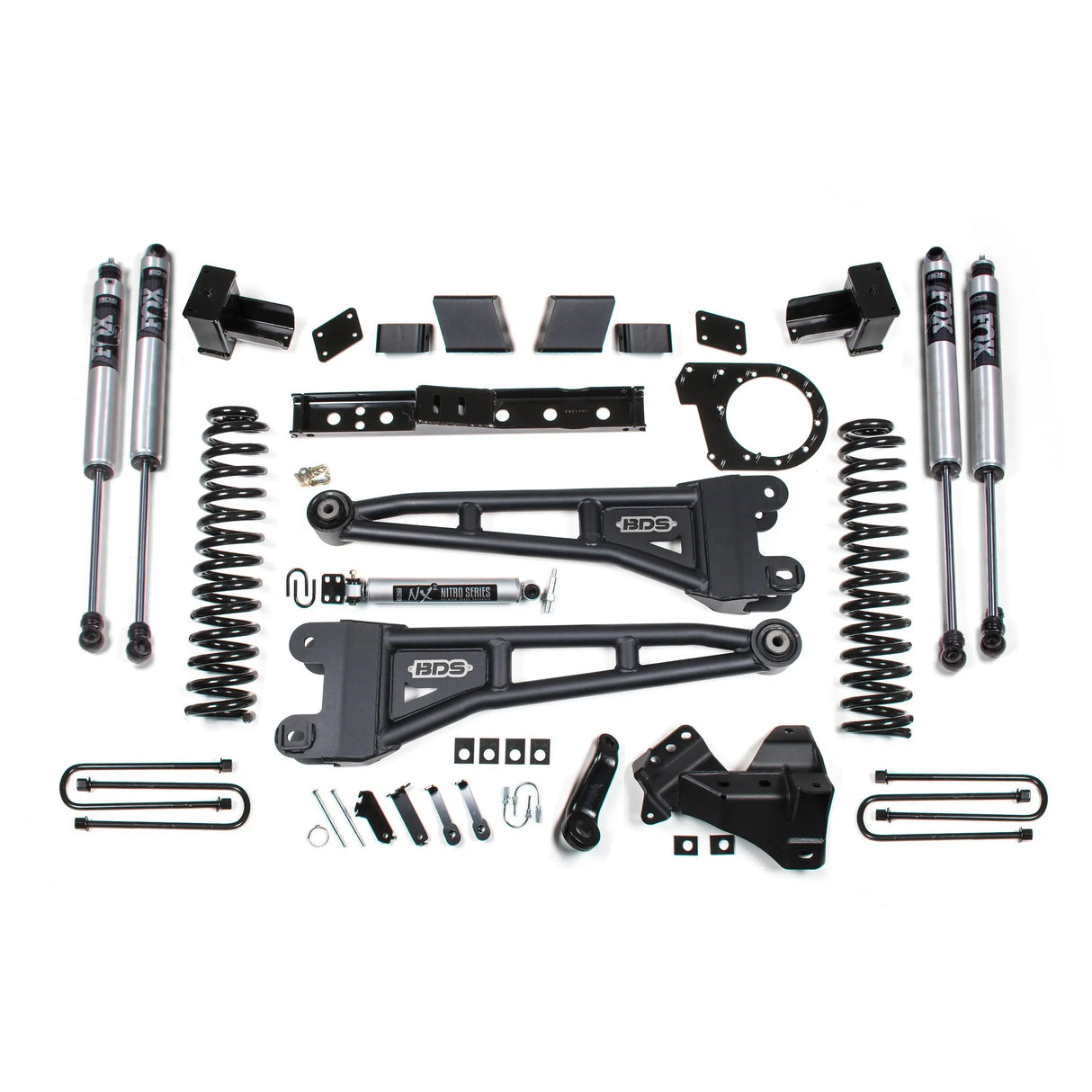

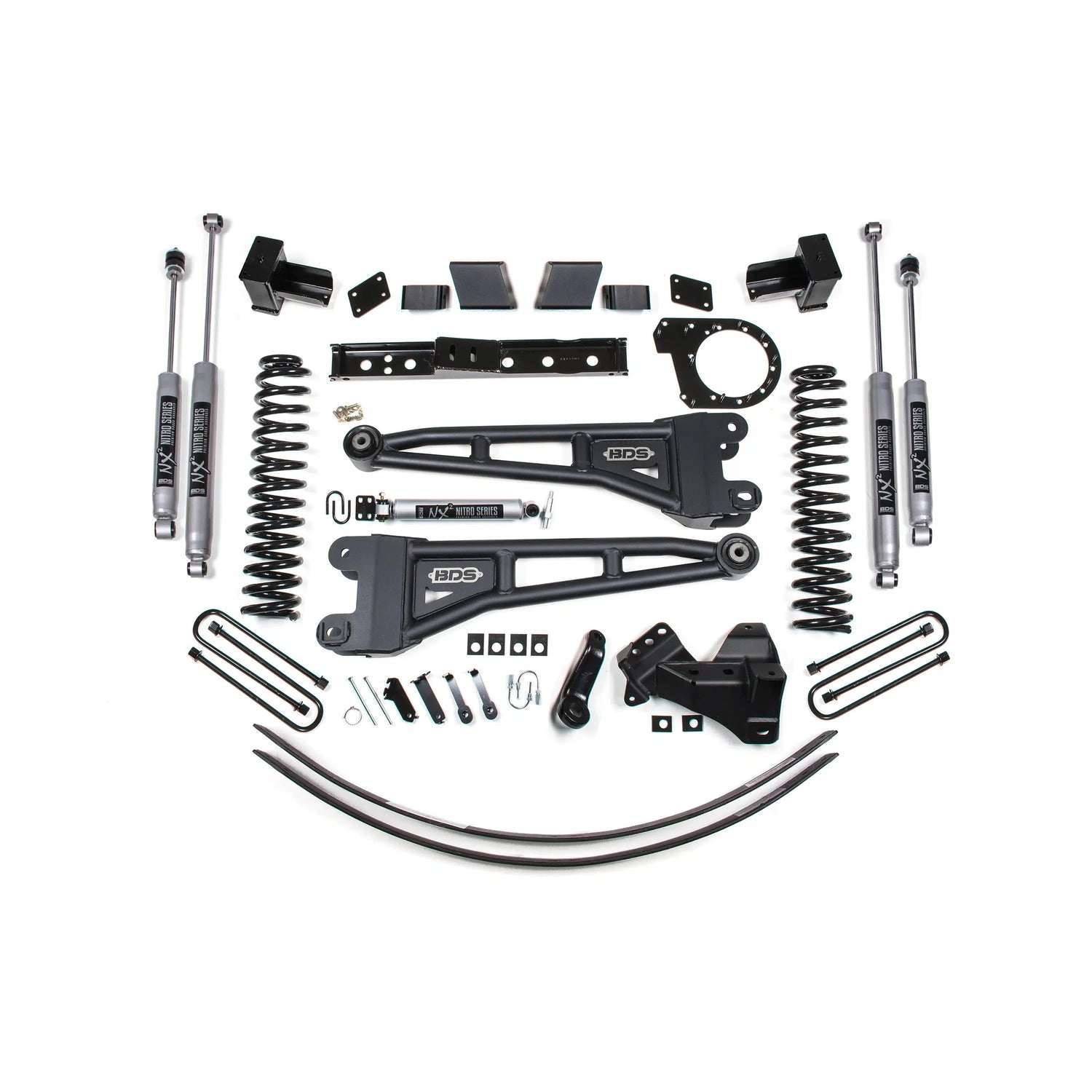

Take your Powerstrokes performance, capability, and stance to the next level with this modest, 6" Radius Arm Lift Kit from BDS, Pro-Ride coil springs, HD replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2, FOX 2.0, or 2.5 nitrogen charged shocks.

Part Number: BDS1580H

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• NX2 Nitro series, Fox 2.0 or 2.5 Performance series shocks


Tire Fitment:

• 38 x 13.5 with 17 x 9 and 5 in. Backspace
• 38 x 13.5 with 18 x 9 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace

Rear Lift Option

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (pn# 123402)
• 38 x 13.50 tires may require minor trimming.
• Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
• The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• If your truck is equipped with a factory rear sway bar add rear sway bar links (pn# 123808)
• The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
