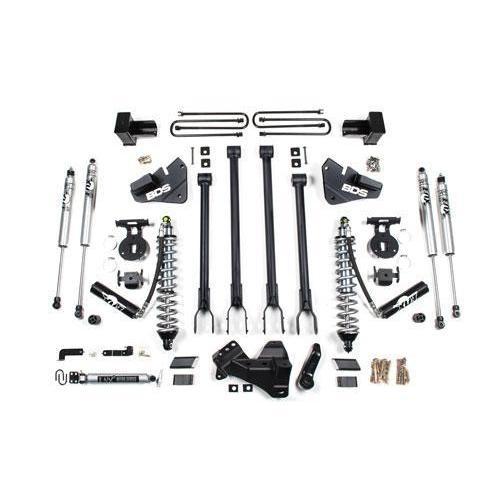

2017-2019 Powerstroke 4" 4-Link Coilover Lift Kit - 2 Leaf (BDS1537F)

Click here to customize this Kit

Fits

Take your new Super Duty to the next level with the tried & true BDS 4-link conversion system paired with Fox 2.5 Series Remote Reservoir Coilovers. A big upgrade for your truck, these high-strength 4-link conversions offer improved handling, stability, strength, & caster control during wheel travel. In the rear of these 4" systems, BDS offers multiple lift options for both the OE 2-leaf main spring pack & OE 3-leaf main spring pack equipped trucks. With Fox 2.0 Series shocks to compliment the front setup for all-around impressive performance.

Part Number: BDS1537F

• Fox 2.5 Coil-Overs
• Track Bar Relocation
• Traditional frame-mounted design to center the axle & put track bar angle in phase with drag link
• Drop Pitman Arm
• Relocates drag link by flipping tie rod position from top-down to bottom-up while also dropping the mount position
• Replacement Single Steering Stabilizer
• Includes mounting kit, a required component since the drag link is now flipped causing the factory stabilizer mount taper to face the wrong direction
• Front Sway Bar Relocation
• Frame-mounted brackets to properly reposition the sway bar
• Front Bump Stop Extensions
• Front Brake Line Drop Brackets
• Relocates lines for proper slack while minimizing the amount the lines need to be reformed
• Full Replacement HD Radius Arms
• Same design as used in the 11-16 model 2.5" lift systems. Repositions axle and sets caster properly for 4" of lift.
• Rear 5" block & u-bolts
• Integrated bump stop wing
• Allows for clearance of up to 37" tires

Tire & Wheel Combinations:

• 37 x 12.50 w/ 17 x 9 and 4.5" - 5"
• 37 x 12.50 w/ 18 x 9 and 4.5" - 5"
• 37 x 12.50 w/ 20 x 9 and 4.5" - 5"

• Diesel Model Only
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• 37 x 12.50 tires may require minor trimming.
• Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
• If your truck is equipped with a factory rear sway bar add: 123005
•  For trucks equipped with 2-Leaf main rear leaf pack only. Click here to view an example

• Click Here For Installation Instructions
• Difficulty: 4 (where 1 = easiest and 5 = complicated)
