2017-2024 Powerstroke 1-pc DS 2.5"/2.0" SST Lift Kit (69-2740)

Fits

The ReadyLIFT 69-2740 SST Lift Kit gives you everything you need to raise your Superduty 2.5" in the front and 2.0" in the rear. This kit will allow the installation of up to 37" tires while maintaining a slight rake for towing or hauling.

This kit will utilize Readylifts popular 2.5" coil spacers and sound isolators which retain that great OEM ride and quiet sound. Their shock extensions allow you to retain the use of those great riding brand-new front shocks rather than having to replace them with aftermarket versions. ReadyLIFT includes sway bar drop mount spacers to put the sway bar in the correct location. Then their bump stop extensions allow you to keep the factory distance between the bump stop and axle while a provided carrier bearing spacer allows you to adjust your driveshaft angle as needed. They have thrown in their popular track bar relocation bracket for improved steering quality.

Part Number: 69-2740

• Maintains your factory ride
• Allows for the installation of up to 37" tires
• 2.5" front lift
• 2" rear lift

Tire Fitment:

• 35" Maximum tire diameter
• 35x12.50 for no rub on a 9" wide wheel with +25 offset
• 17" - 35X12.5R17
• 18" - 315/70R18
• 20" - 295/65R20 / 325/60R20
• 22" - 35X12.5R22

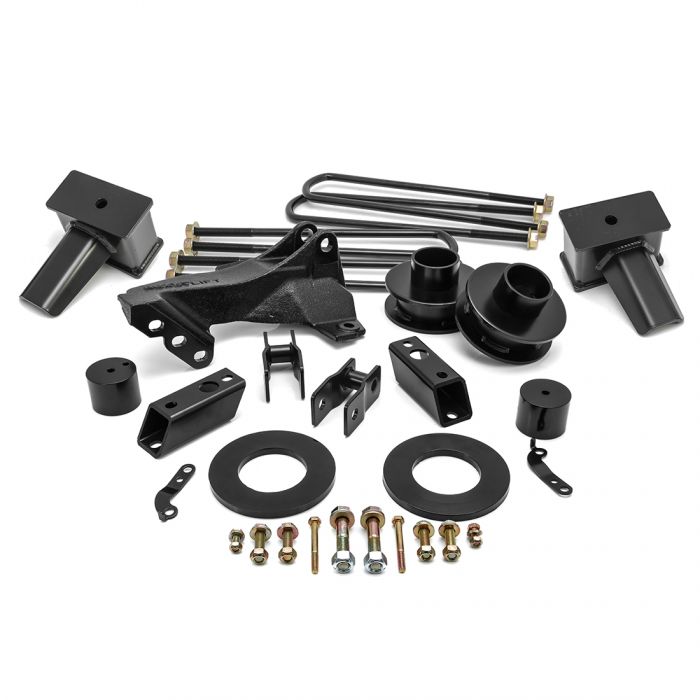

Includes:

• 2.5" coil spring spacers with sound isolators
• Fabricated steel rear lift blocks with longer u-bolts
• CNC machined billet carrier bearing spacer
• OEM-style front track bar relocation bracket
• Longer sway bar end links, brake line bracket, bump stop extensions
• Front shock extensions

• For use on 4WD Single Rear Wheel (SRW) trucks with a 1-piece driveshaft only. This kit will not work on Tremor edition trucks.
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. The use of this type of airbag system will void all block warranties and can cause the failure of the block bump stop tang.
• 2020 MY Super Duty may sit slightly taller in the rear than prior model years due to block height variations from the Ford factory. The additional rake works well visually with the vehicle's body lines.
