2017-2022 Powerstroke 1-pc DS 3.5"/1" SST Lift Kit (69-2735)

Fits

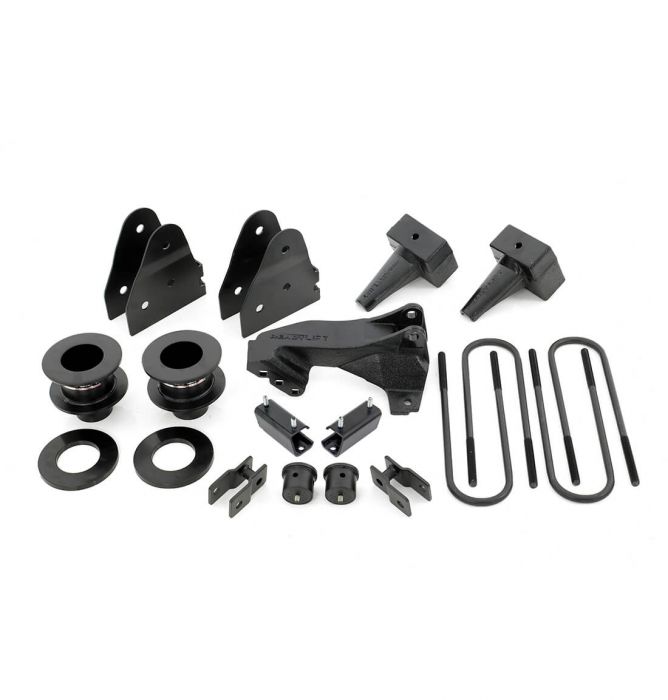

The ReadyLIFT 69-2735 3.5"/1" lift kit allows for wheel and tire combinations up to 37" while keeping the smooth OEM ride and drivability. This is a complete lift kit that includes 4" OEM-equivalent rear blocks with integrated bump stop landings, 3.5" coil spring extensions with sound isolators, an OEM-style Panhard drop bracket, front bump stops OEM shock extension brackets, a pair of radius arm drop brackets, and all needed hardware. When used with the maximum size tires, the F250 truck body is raised over 6". ReadyLIFT Smart Suspension Technology is used to make this kit very user-friendly to install, requiring no cutting or drilling!

Part Number: 69-2735

• (2) coil spring spacers with poly sound isolators
• (2) front shock extensions.
• Radius arm drop brackets
• (2) front sway bar mount spacers.
• (1) front track bar relocation bracket
• (2) OEM style cast rear lift blocks with longer u-bolts and hardware.
• (2) Bump stop extensions.
• Extended length front brake line brackets.

Tire Fitment:

• Recommended tire size: 37x12.5
• Recommended wheel: 17" and up x 9" wide, +25 offset / 6" backspacing (minor trimming of the front valance may be necessary)

• For use on 4WD Single Rear Wheel Supderduty trucks with 1-piece drive shaft only. This kit is not compatible with Tremor edition trucks.
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. The use of this type of airbag system will void all block warranties and can cause the failure of the block bump stop tang.
• 2020 MY Super Duty may sit slightly taller in the rear than prior model years due to block height variations from the Ford factory. The additional rake works well visually with the vehicle's body lines.
