2017-2022 Powerstroke 8.5" Lift Kit w/ Radius Arms (49-27851)

Fits

Now that your dream of owning a Powerstroke has come to fruition, it's time to get that big lift you've been thinking about! This 8.5" Lift Kit from ReadyLift isn't called "The Baller" for nothing. Featuring Tubular Radius Arms to strengthen the longitudinal movement of the axle, providing you with better handling and stability with increased camber control to minimize wheel hop and maintain proper wheel alignment. Effectively increasing your truck's handling predictability and giving you that neck-breaking ground clearance that dominates any road or terrain with ease.

Part Number: 49-27851

• All-new and improved Driveline Indexing System preserves driveline angles
• Custom-tuned Falcon 1.1 Monotube shocks
• Increased ground clearance

• Tubular Radius Arms help to correct the caster angle and camber control
• Maintains appropriate geometry

Tire Fitment:

• 38" Maximum tire diameter
• 37x12.50 for no rub on a 9" wide wheel with 0 offset
• 38x13.50 on 10" wide wheel with +12 offset
• 18" - 37X12.5R18
• 20" - 37X12.5R20
• 22" - 325/60R22

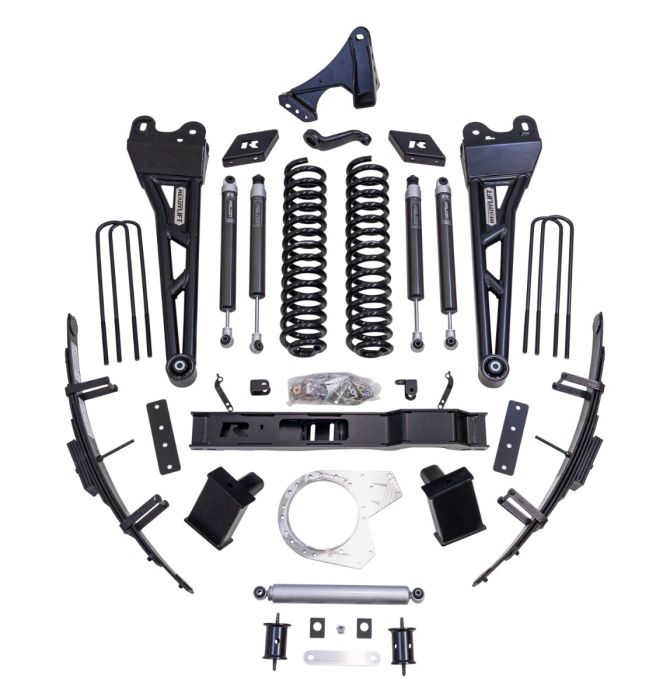

• Lift Spring
• Drop Pitman arm
• Track bar bracket & washer
• Front bump stop extension
• Driver & passenger front sway bar bracket
• Driver & passenger radius arm
• Radius arm crush sleeve
• Driver & passenger brake line bracket
• Steering stabilizer bracket frame & tie rod
• Steering stabilizer cone washer
• Rear sway bar bracket
• Driver & passenger rear block
• U-Bolts & hardware
• Front & rear shocks
• Steering stabilizer
• Transfer case clocking ring
• Transmission cross member
• Carrier bearing spacer
• Add-A-Leaf pack
• All necessary hardware

• Single rear wheels only
• Diesel trucks only -not compatible with gas engine trucks

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
