2017-2024 Powerstroke 0-6" Lift Recoil Traction Bar 4.5" axle Mounting Kit (BDS123426)

Fits

Important: The mounting kits DO NOT include the Recoil Traction Bar, they need to be purchased separately. (BDS123409)

Must measure axle - this kit fits trucks with a 4.5" axle tube diameter


BDS Suspension's revolutionary spring-loaded, full-floating RECOIL traction bar system is engineered to improve traction and limit axle wrap without limiting suspension travel or decreasing ride quality.

Part Number: BDS123426

• Compatible with 0-6" of Lift
• The bars are fabricated from 2" OD x 3/16" wall steel tubing with a threaded bung welded in toward the axle
• CNC machined end at the frame
• Adjustable axle wrap control utilizing dual-stage resistance springs
• Full-floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Adjustments can be made for optimum performance over a wide range of uses/terrain.
• (On-Road, Unloaded, Towing/Hauling, Off-Road, Competition pulling)
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.
• These traction bars can be used on stock height or lifted trucks and work with both lift blocks and replacement leaf spring kits
• 1-piece flex ball for up to 15-degrees of misalignment in either direction.
• Forged flex ends use a forged housing with a large 1-1/4'' -12 threaded shank
• Durometer-specific polyurethane bushing installed that free floats in the traction bar utilizing dual-stage internal compression springs
• UHMW polyurethane bearings.

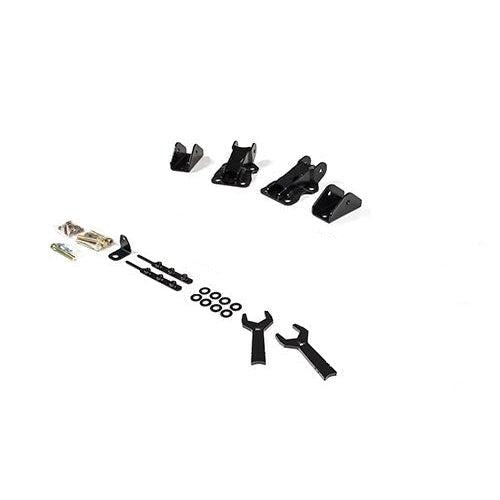

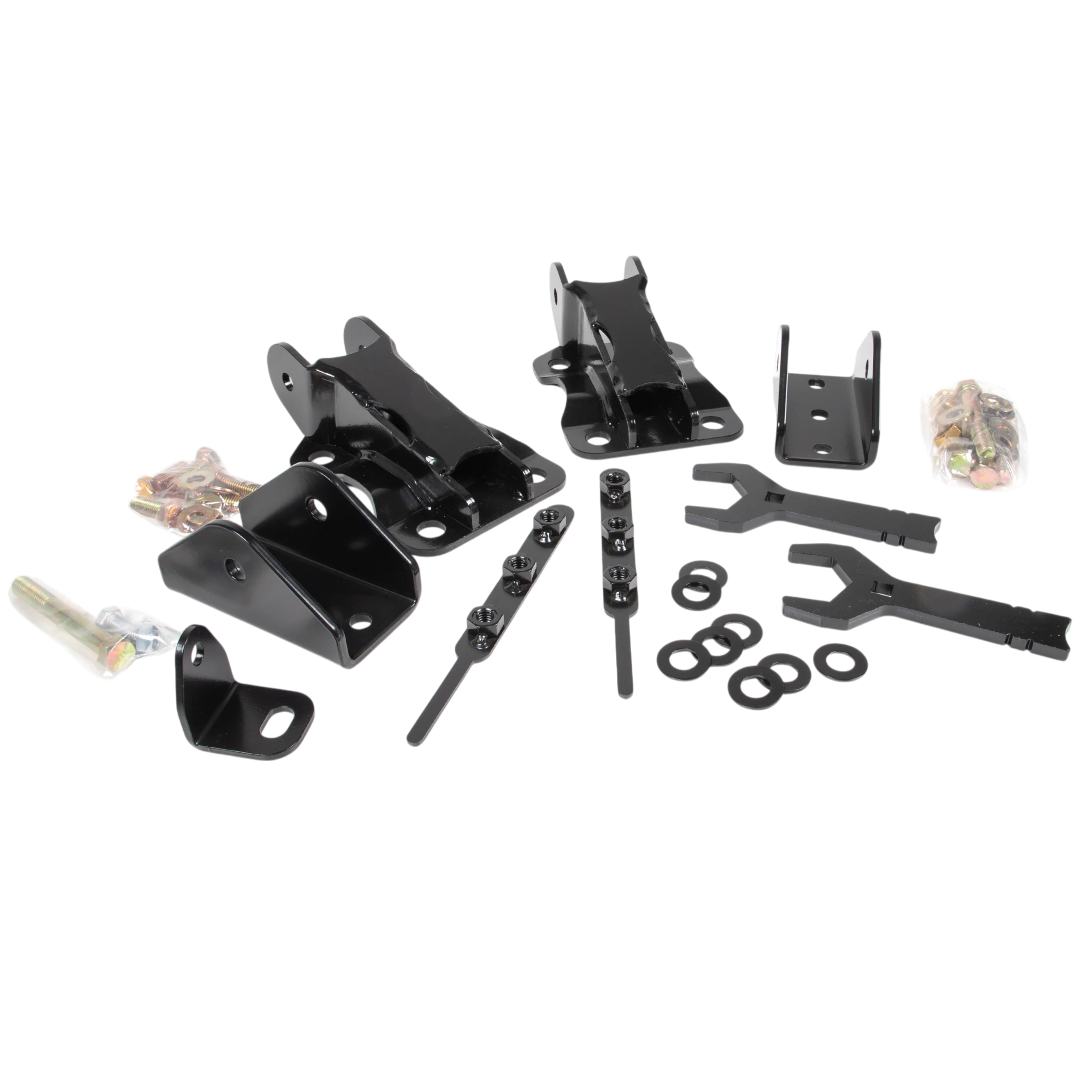

Includes:

• Two Frame Mount Nut Tab

• Two Super Duty Frame Mounts
• Two Jam Nut Wrench
• Skid Plate Support
• One Bolt Pack (Frame Mount)
• One Bolt Pack (Traction Bar Hardware)
• One Bolt Pack ( Rivet Nut Installation)
• Two Traction Bar Assemblies
• ...And more ( See instructions for full list)

• Fits 0-6" of rear lift
• Includes (1) 123409 Traction Bar Box Kit & (1) 123416
• Mounting Kit Does not fit regular cab models
• Must measure axle - this kit fits trucks with a 4.5" axle tube diameter

• Click Here For Installation Instructions
