2018-2023 Ecodiesel Wrangler JL/Gladiator JT Sealed 7 Headlights (LF518)

Fits

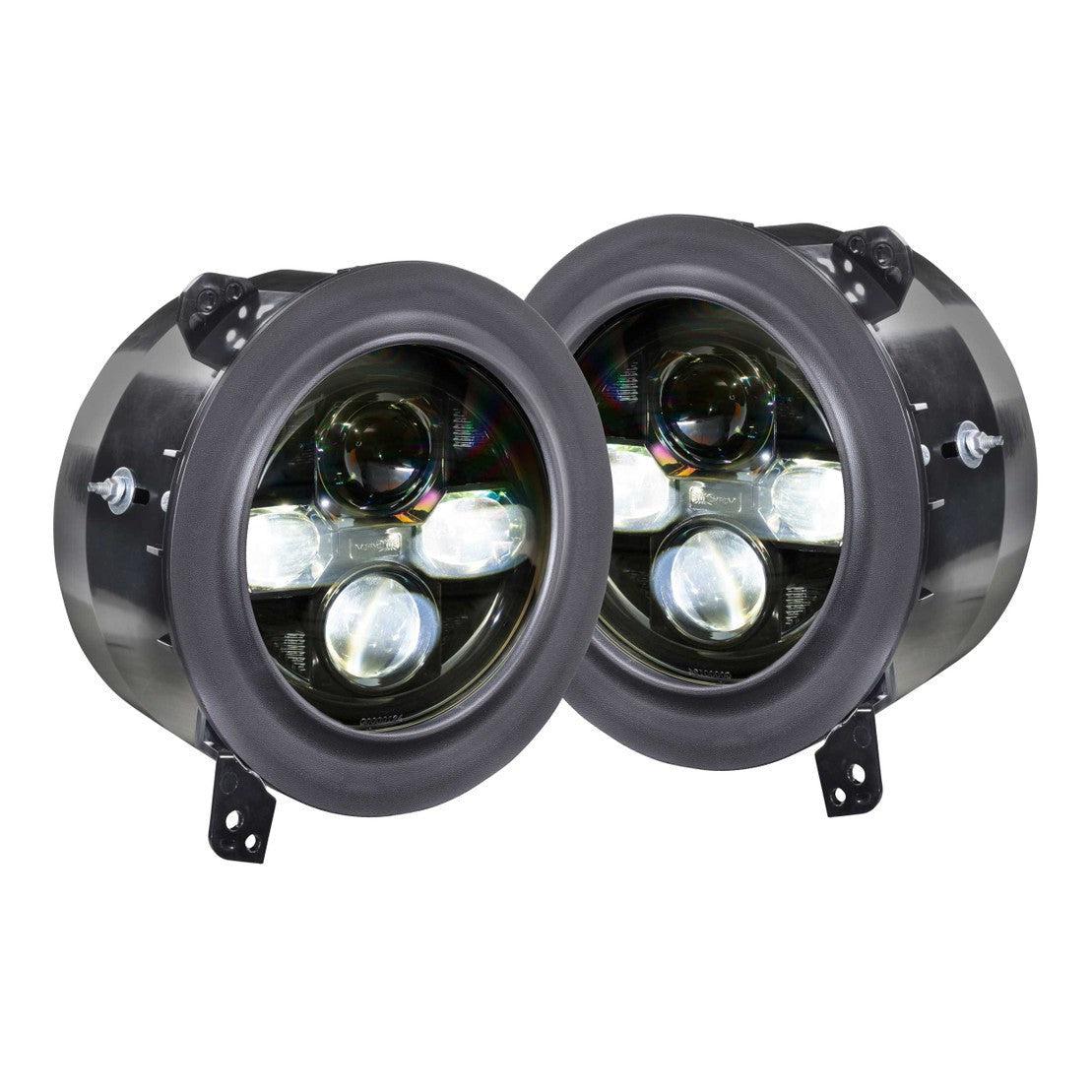

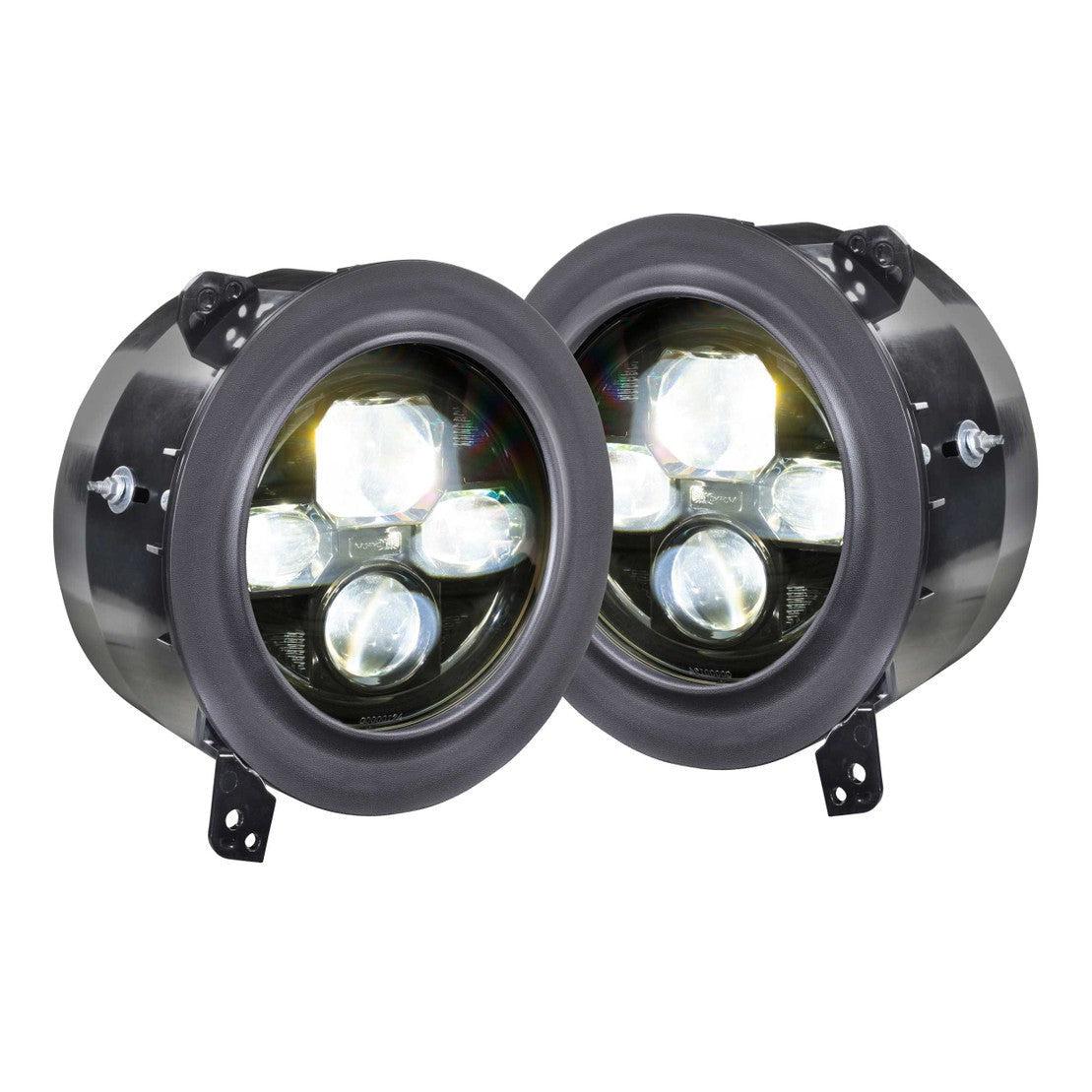

The Morimoto LF518 Sealed 7 Headlights for Wrangler JL and Gladiator JT is the ultimate lighting upgrade. These OEM replacement headlights are powered by high-quality Japanese LEDs from Nichia and Philips-Lumileds, resulting in outstanding style, performance, and quality. . The Morimoto Sealed7 boasts a unique quad-optic setup, acting as a high-intensity white daytime running light and a switchback turn signal, seamlessly enhancing both safety and aesthetics. With UV-coated shatterproof polycarbonate lenses and heavy-duty die-cast housings doubling as heat sinks, durability is paramount.

To top it off, the integrated anti-flicker LED driver ensures consistent performance. Illuminate the road with approximately 3000 lumens in a properly LHD-stepped beam pattern, intensified to nearly 4000 lumens in high-beam mode. Installation is a breeze with a 3-wire DRL/Signal input, compatible with Wrangler turn signals and parking lights. Elevate your Wrangler's lighting game with the Morimoto Sealed7 Headlights – the ultimate choice for discerning JL/JT owners.

Part Number: LF518

• High-Quality LEDs: Nichia and Philips-Lumileds LEDs for brightness and longevity.

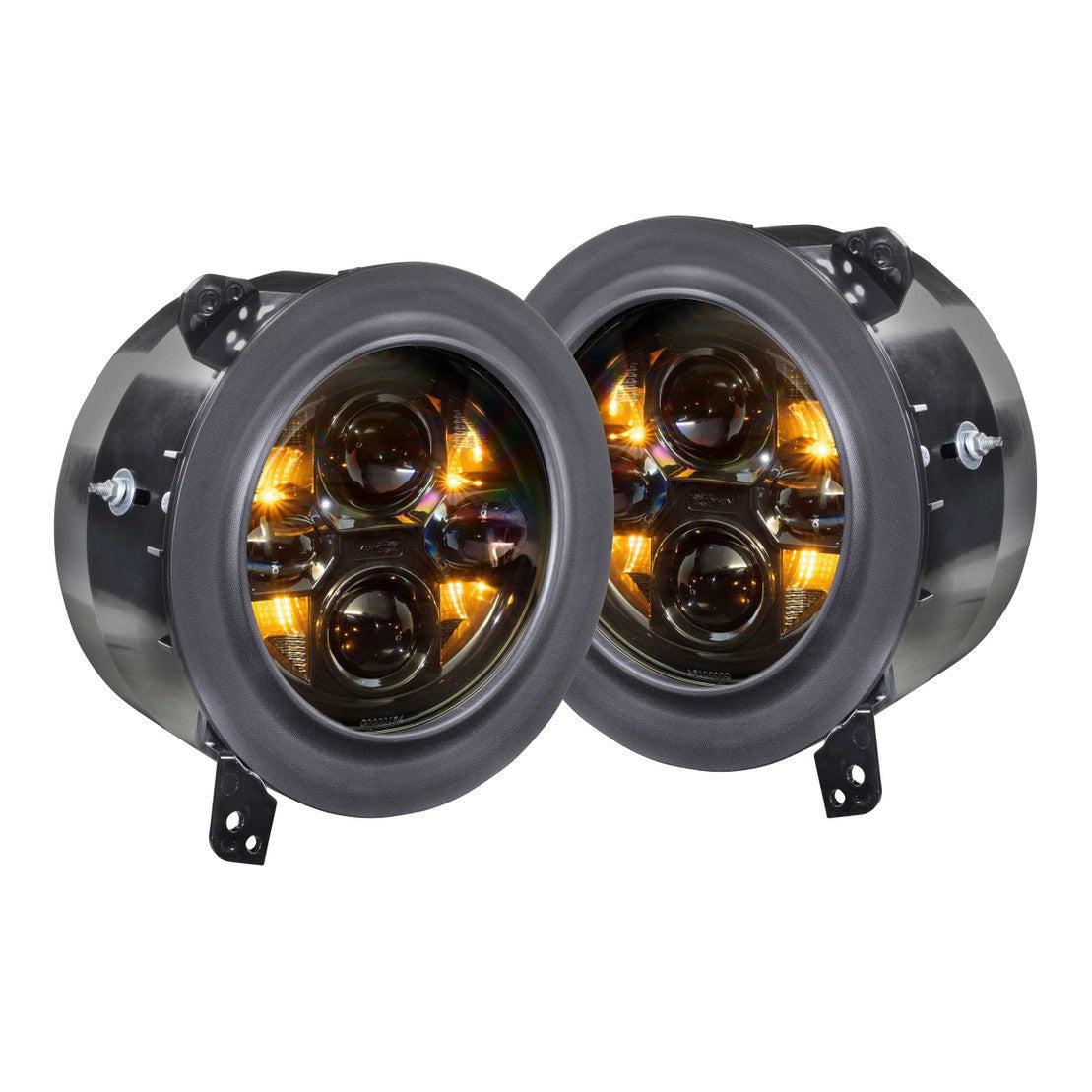

• Quad-Optic Design: High-intensity white DRL and switchback turn signals.
• Durable Build: UV-coated, shatterproof lenses, and robust die-cast housings.
• Intense Illumination: 3000 lumens in a stepped beam pattern, 4000 lumens in high beam.
• Easy Installation: 3-wire DRL/Signal input for seamless setup with Wrangler lights.
• DOT, SAE, FMVSS108 Standards

• Traffic Pattern: LHD Only
• Input: Delphi Multi-Pin OE Connection
• Functions: Low and High Beam
• Material: Power-coated Die-Cast Housing, UV-Treated Polycarbonate Lens
• Optic: Kuria Optic Hi/Lo
• Intensity: 2,860 Lumens (Low), 1020 Lumens (High)
• LED: Nichia NCSW170C, Philips Luxeon 3535L
• Kelvin Rating: 6300K
• UV Coating: Momentive UVHC3000

• Headlights: 2x (One Pair) 2018+ Jeep Wrangler/Gladiator Sealed7 Headlights
• Wiring: Plug and Play Wire Harness
• Taps: For DRL/Turn Signal Operation

Click here to view installation instructions
