2019-2024 Cummins High Output 4.5" Coil Spring Lift Kit (49-19430)

Fits

Note: NOT compatible with factory air suspension systems or Standard Output models

The Cummins can be a tricky truck to lift sometimes, as often times, there are small components that need to be upgraded that a lot of cheaper lift kits dont include, and you only realize this till you're neck deep in suspension parts. What are these parts, and what would happen if you didn't have them installed? ReadyLift's innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission cross-member, ensures correct transmission and pinion position so you never get that irritating driveline vibration.

So at the end of it all, you get a killer combination of menacing aesthetics, superior suspension handling, and articulation for one badass ride, on or off-road.

Part Number: 49-19430

• Maintains factory suspension geometry and articulation
• Maintains factory turning radius without rubbing when using the recommended wheel and tire size
• Bump stop extensions prevent over-compression
• CNC-machined 6061-T6 billet DIS re-clocks the transfer case, aligning the front output shaft for improved driveline angles


Wheel & Tire Fitment:

• Maximum fitment: 37x12.50 tire

• 20'' x 9" wide wheel -18 offset

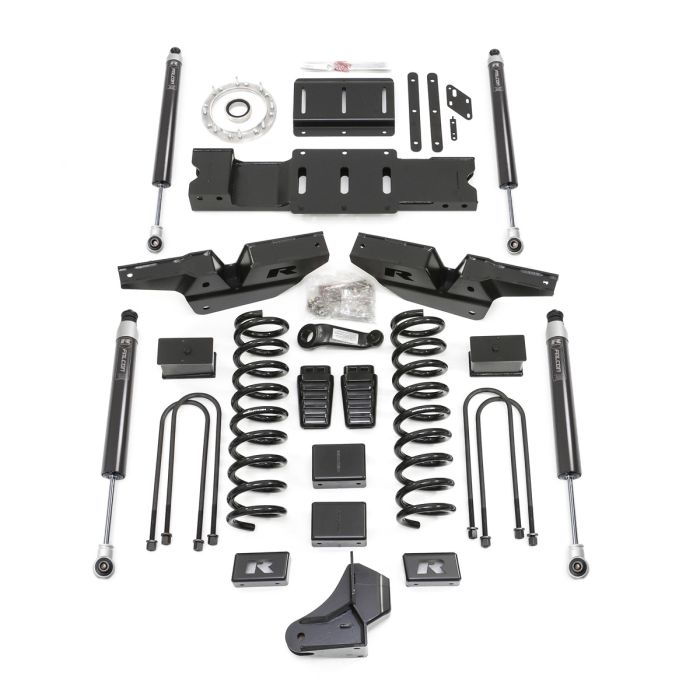

Includes:

• 4.5" Front Lift Spring

• 3-Inch Fabricated Block

• 19-21 Ram 3500 U-Bolt for 4.5-Inch Kit

• Falcon Shock, Front

• Falcon Shock, Rear

• Radius Arm Drop, Driver

• Radius Arm Drop, Passenger

• Front Track Bar Bracket

• Driver, Sway Bar Drop Bracket

• Passenger, Sway Bar Drop Bracket

• Replacement Front Bump Stop

• Rear Bump Stop Extension

• Pitman Arm, Drop, Replacement

• Transmission Connector Bracket

• Transmission Crossmember

• Transmission Harness Bracket

• Transmission Mounting Plate
• Transmission Mount Spacer

• 8 Bolt Clocking Ring

• Front Brakeline Bracket

• Rear Brakeline Bracket

• E-Brake Extension

• Pinch Clamp

• Transfer Case Spacer

• Auto Trans Extension Housing Seal (MOPAR)

• Hardware Pack

• Kit will not fit any models with the standard output 6.7L diesel motor, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models
• Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.
• Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Recommended driveline for the 68RFE Adams Drive Shaft SKU: ASDRAM-1350F-5GEN.
