2019-2024 Cummins 0-6" Lift Recoil Traction Bar Mounting Kit (BDS122407)

Fits

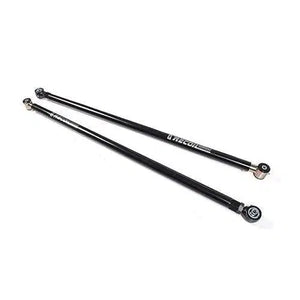

Important: The mounting kits DO NOT include the Recoil Traction Bar, they need to be purchased separately. (BDS123409)

 BDS Suspension adds to its lineup of vehicle-specific mounting solutions for revolutionary RECOIL traction bar setups with new mounting kits. These RECOIL traction bars can be bolted in place offering improved traction and the freedom to adjust the internal spring tension for optimal performance on-road, off-road, towing, or competition pulling. High strength construction of brackets and bars ready to handle any abuse, adjustable design allows bars to be preloaded for various driving situations.

Part Number: BDS122407

• Compatible with 0-6" of Lift
• Bolt-on Installation
• High strength 1/4" Steel
• Gloss Black Powder Coating
• Dual-stage internal compression springs
• Durometer specific polyurethane bushing
• UHMW polyurethane bearings
• Improved Traction
• Better overall Performance
• Used with Stock Height or Lifted
• Full-floating design that won't bind
• Full range of wheel travel without limiting articulation
• Length: 60"
• Greaseable design for long-lasting, quiet performance
• Fabricated 2" OD x 3/16'' wall steel tubing
• CNC machined end at the frame
• 3000LB Spring rate

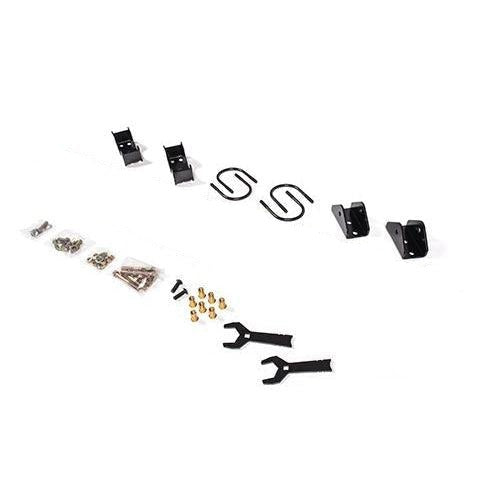

Includes:

• Two Frame Brackets
• Two Axle Brackets
• One Bag Kit
• Two Jam Nut Wrenches
• One Bolt Pack - (Axle Mount)
• One Bolt Pack - (Frame Mount)
• One Bolt Pack - (Traction Bar)
• One Bolt Pack - (Rivet Nut)
• Seven Rivet Nuts
• Four 1/2” x 4” x 5-3/4” Round U-bolt

• If equipped with DEF tank skid plate, modification of skid plate may be necessary for Recoil frame bracket installation.
• This installation should be done with the weight of the vehicle on the rear axle.

• Click Here For Installation Instructions
