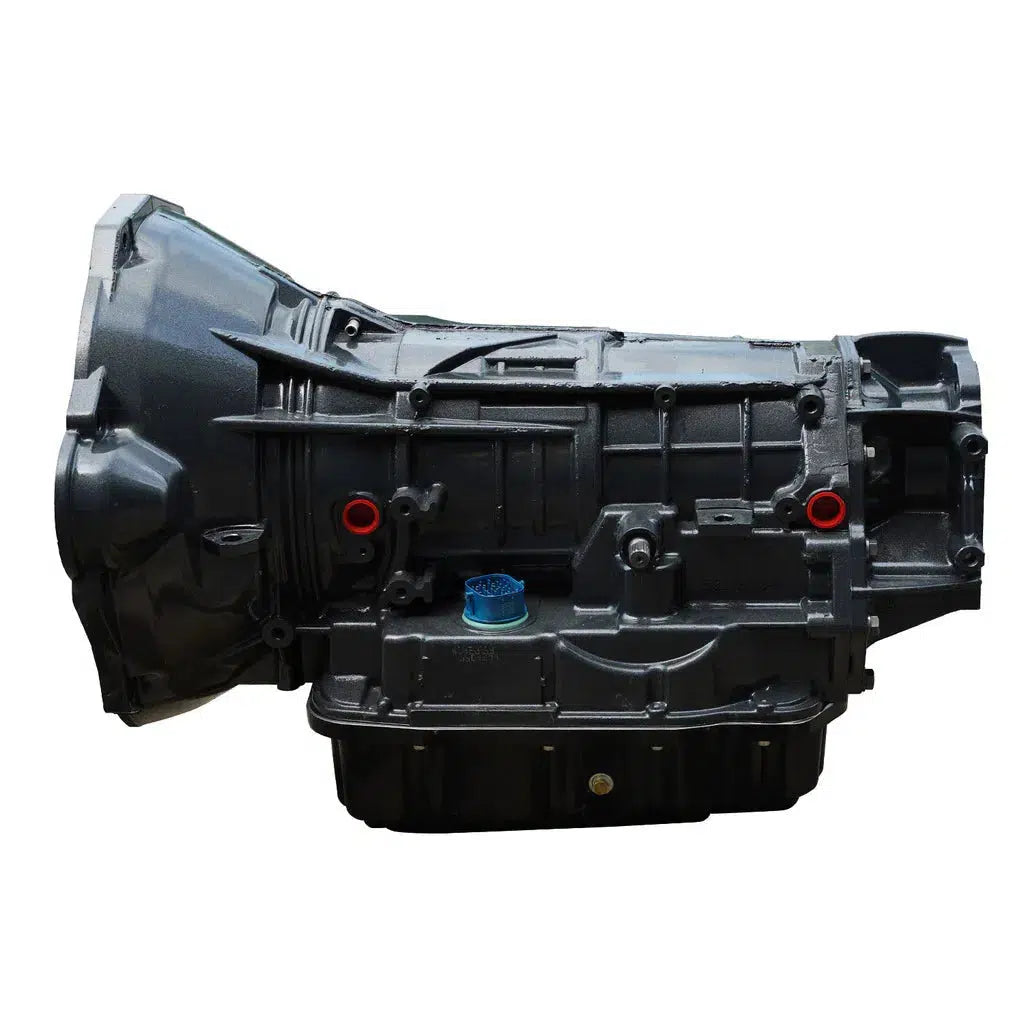

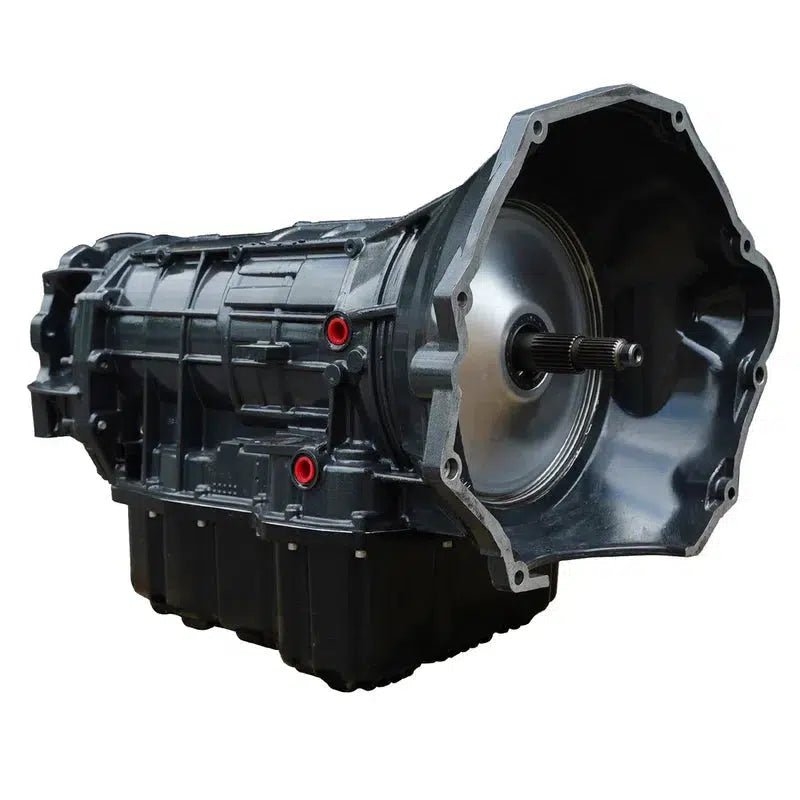

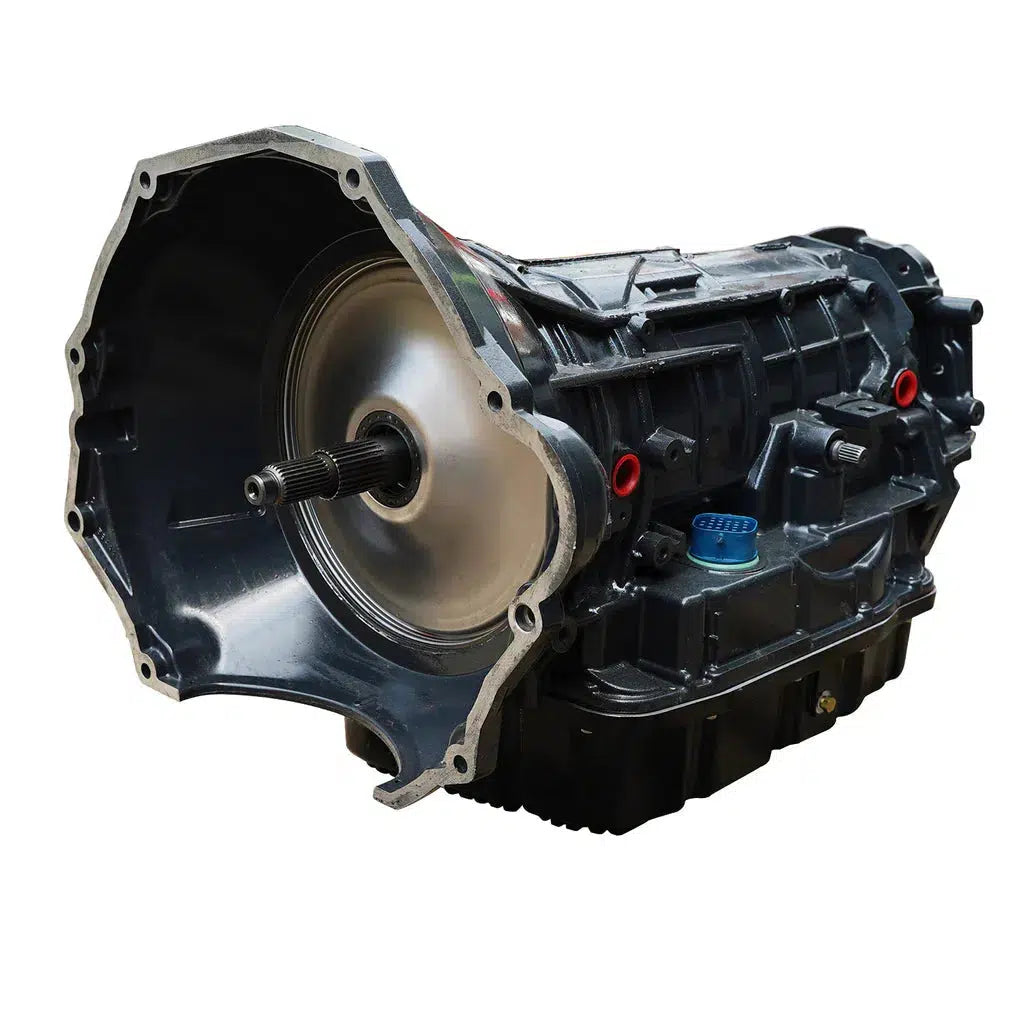

2019-2024 Cummins TowMaster 68RFE Transmission (2WD) (1064292)

Fits

BD's 68RFE is the top-of-the-line transmission. BD has tackled the typical issues seen with the stock 68RFE. Say goodbye to burnt out overdrive clutches, thanks to custom billet QT100 reaction plates, a longer "Big Stack" spline OD shaft, and 16 frictional surfaces.

Part Number: 1064292

• Hard anodized valve body and new solenoid pack installed in every unit
• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Heavy duty cam & roller design low reverse one way clutch
• New 4C billet spring retainer
• Steel girdle added to 2C piston to allow for more clutches and broader apply area
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Over Drive clutches 33% increase & 2C clutches 33% increase

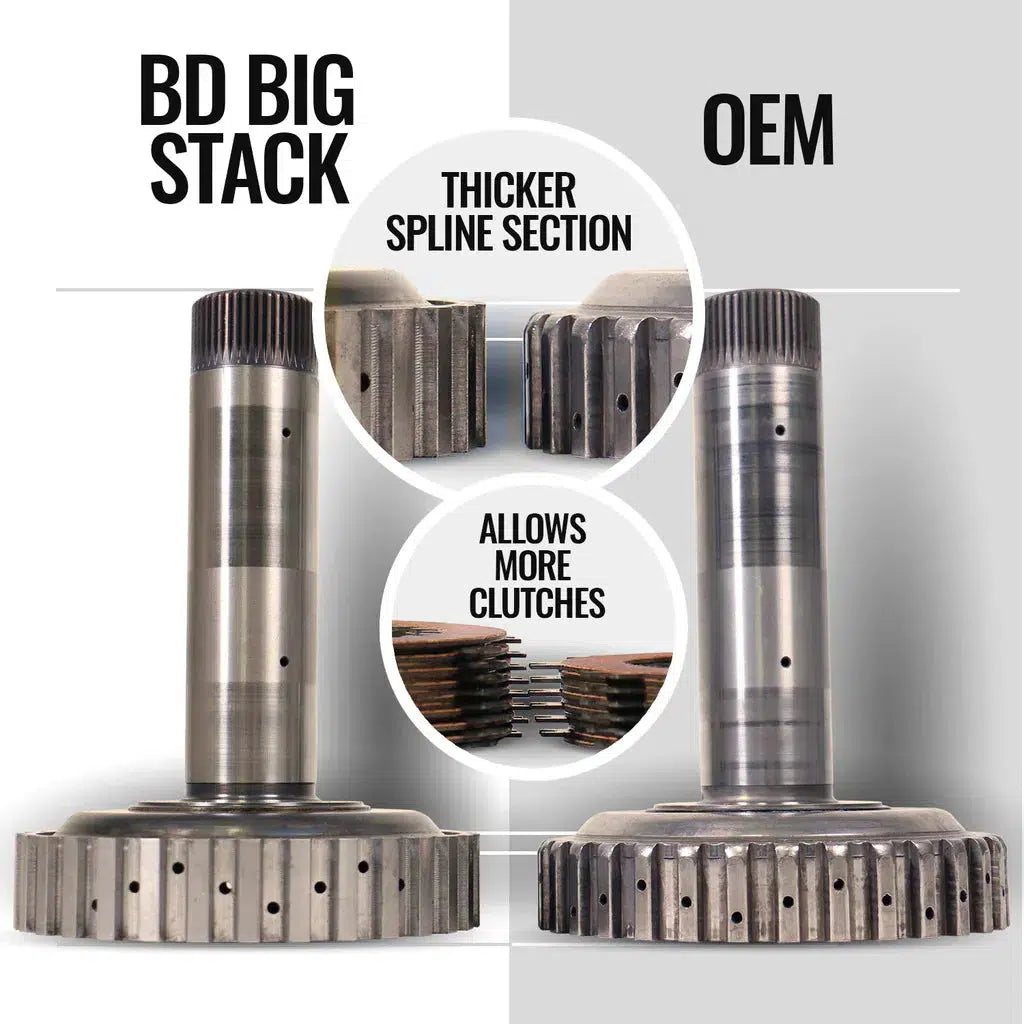

• Custom Big Stack overdrive shaft
• BD reinforced accumulator plate
• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex


• Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.


• 9 Hours
• Install Click Here

Parts Only - No Race or Sled Pull abuse covered.

• 36 Months
• 150,000 Miles
• Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
• BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty.
• Warranty Form
