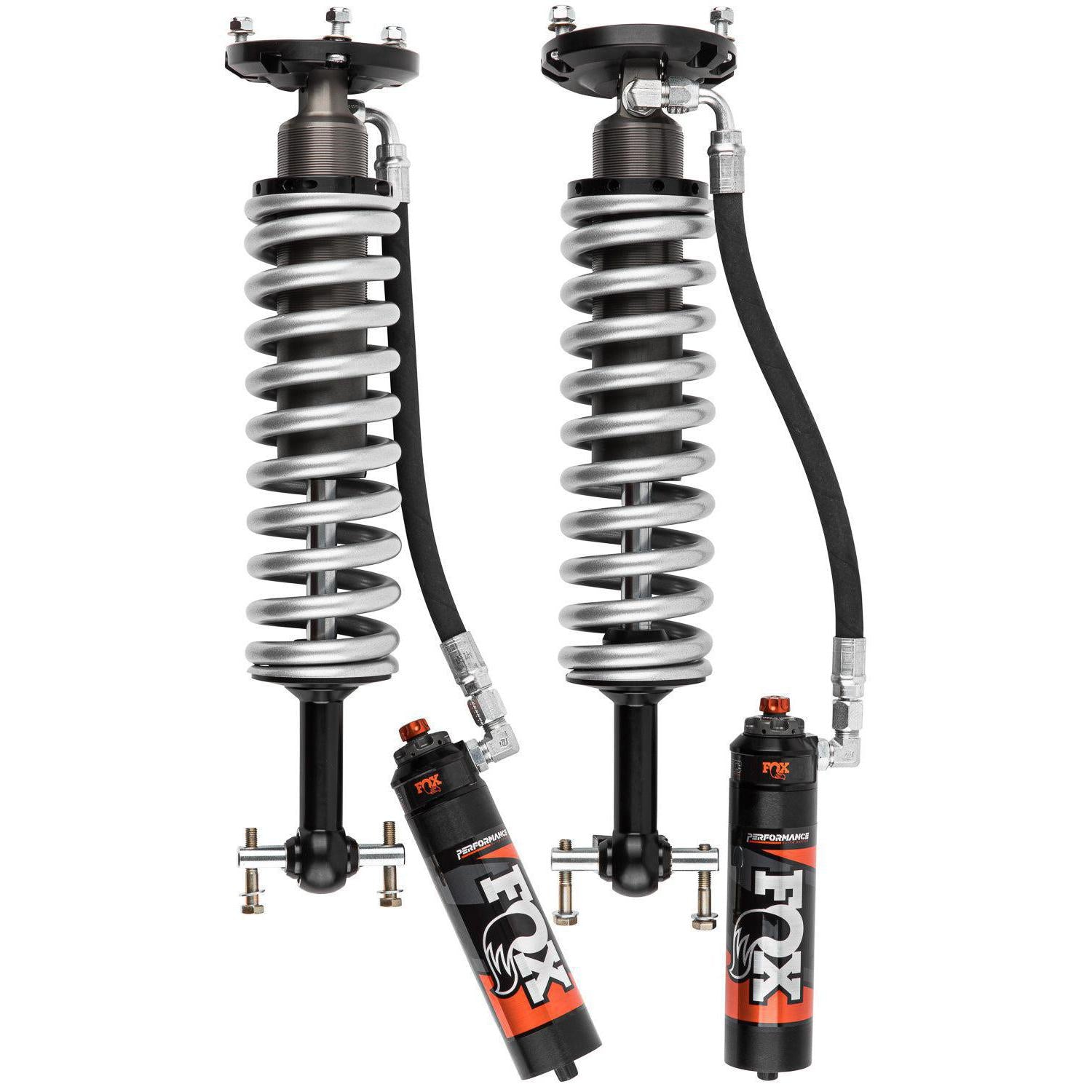

2019-2024 GM 1500 2.5 Elite Series 3.5" Front RR Coilover

Before any of our shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. We push the boundaries to give you that same precise control and race-proven performance you can feel.

Our bolt-on Performance Elite Series Coil-over Reservoir shocks provide improved damping in any terrain.

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box.

Experience for yourself the incredible performance and precise control that Performance Elite Series Coil-over Reservoir shocks deliver.
Features

• Performance Tuned For Vehicle Specific Application, Durable Zinc Plated Seamless Alloy Body, External Reservoir System Dissipates Heat Fast, Black Anodized CNC Machined Aluminum Components
• SeriesPerformance Elite
• Travel 5.87
• Front Lift Height 3.5
• Body 2.5 Inch Impact extruded and CNC machined 6061-T6 hard anodized aluminum Body resists rust over time
• Body Plating Hard-anodized for a durable finish
• Components Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft 7/8 Inch hard chrome plated steel Shafts
• Piston 6061-T6 hard-anodized, high flow aluminum Piston
• Valving Application specific Valving to maximize performance
• Seals Redundant sealing pack system main seal, wiper seal, scraper seal
• Bearings PTFE-lined, heat-treated, alloy steel spherical
• Extended Length 22.81
• Compressed Length 16.94
• Top Mount TM

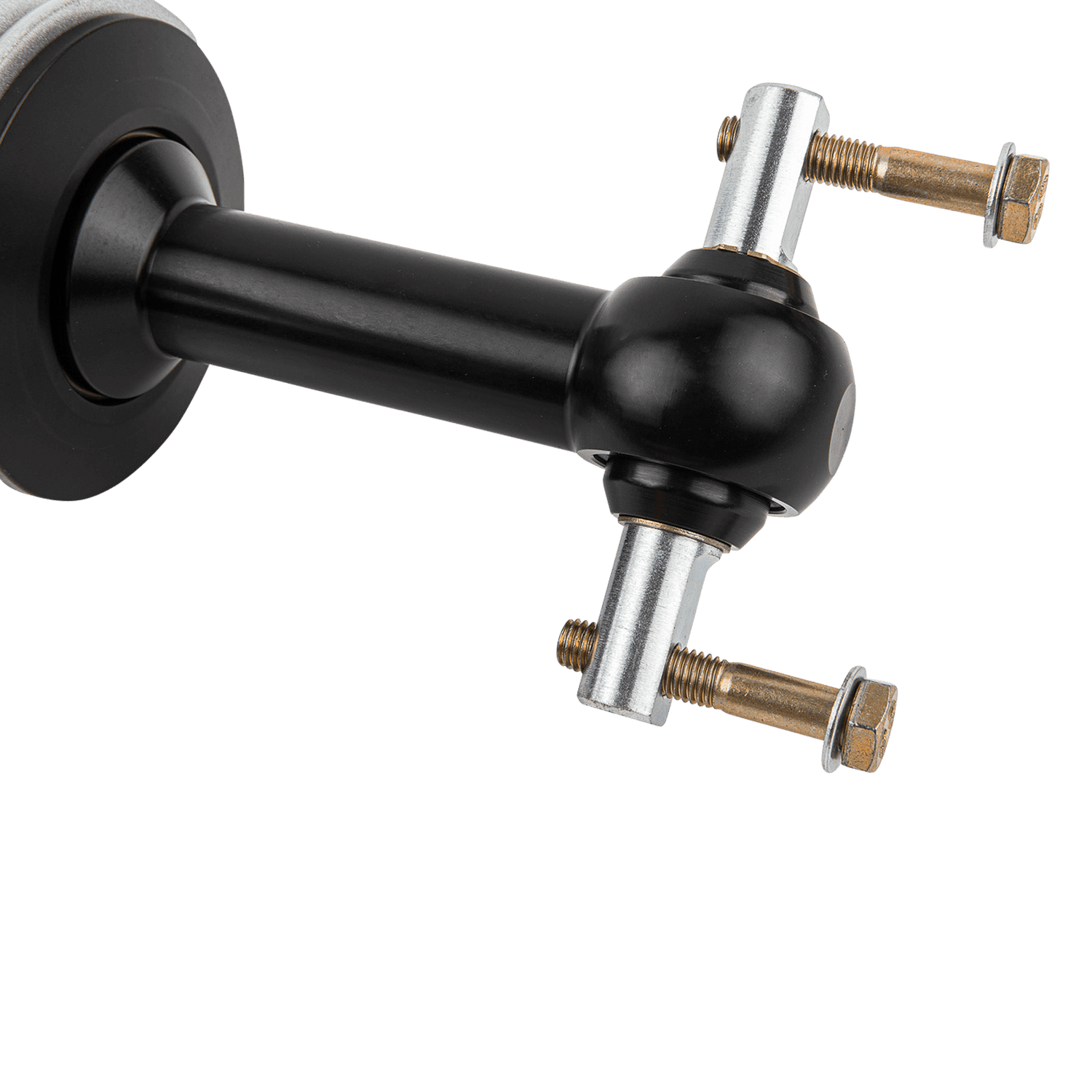

• Bottom Mount BP7
• Fitment Notes Requires Upper Control Arm Includes Reservoir Bracket Trail Boss Models Fit 1.5 Inch Lift Only
