2019-2024 RAM 1500 6" MAX3.3 Suspension System (42-19640)

Fits

Elevate your off-road experience with the 2019-2024 RAM 1500 6" MAX3.3 Suspension System by ReadyLIFT. This innovative system features a 6" lift, improved control, and high-performance Falcon 3.3 series struts and shocks. Strengthened with upgraded DOM tube steel upper control arms with corrected ball joint angles this suspension will take your Ram 1500 to new heights.

The Falcon 3.3 Fast Adjust struts are coupled with adjustable piggyback shocks in the Ram 1500 MAX3.3 system. These new Falcon dampers have two separate knobs for customizing to your liking and a wide range of adjustability for different terrain and handling preferences. Enjoy improved performance and comfort regardless of the terrain you encounter with Falcon Performance Shocks. This 6" lift kit is perfect for everyday driving, off-roading, and towing duties, incorporating premium elements for a remarkable ride and drive. With longer rear sway bar end links, heavy-duty cast iron knuckles, and durable steel skid plates, this kit can accommodate up to 37 x 12.50 tires on 9" wide wheels with 0 offset.

Part Number: 42-19640

• Unmatched control and performance
• Provides 6" lift
• Falcon 3.3 series struts and shocks
• Fast Adjust Dampers
• Upgraded DOM tube steel upper control arms with corrected ball joint angles
• 3.3 Fast Adjust struts with rear adjustable piggyback shocks
• Ideal for daily driving, off-road excursions, and tow/haul duties
• Longer rear sway bar end links
• Heavy-duty cast iron knuckle
• Unusually robust steel skid plates
• Fits up to 37x12.50 tall tires on 9" wide wheels with 0 offset

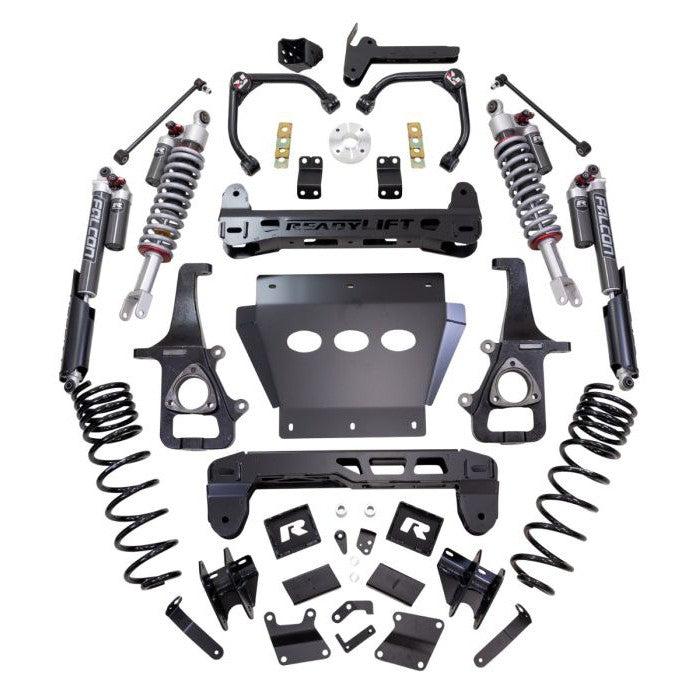

Includes:

• Front Cross Member
• Driver Knuckle
• Passenger Knuckle
• Rear Cross Member
• Rear Coil Spring
• Hardware Pack
• Component Kit
• RL 19+ RAM1500 FALCN 3.3 COILOVER FR LFT
• RL 19+ RAM1500 FALCN 3.3 COILOVER FRT RT
• RL 19+ RAM1500 FALCON 3.3 DAMPR REAR LFT
• RL 19+ RAM1500 FALCON 3.3 DAMPR REAR RT
• RAM 1500 UCA KIT

• Estimated Install Time: 12 Hours +/- 1 Hours  (excluding alignment and wheel/tire assembly)
• Click Here

Notes:

Installation Alignment Note:  Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.

Installation Headlamp Aim Note:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.

 Installation Advanced Driver Assistance Systems (ADAS) Note:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

•  RAM 1500 with factory 22" wheels requires a larger bore knuckle assembly due to larger wheel bearing assembly. Vehicles with 22" factory wheels should use #44-1961 or install replacement standard wheel bearing assemblies (not included). If installing this kit any Off-Road Group Package‚ equipped truck, ReadyLIFT recommends foregoing the front preload spacer installation - the lifted vehicle will sit about 1/2" front high with the preload spacer installed or 3/8" low without the preload spacer. This kit is NOT compatible with (1) adjustable models equipped with air suspension- or (2) Ram TRX.

• 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.

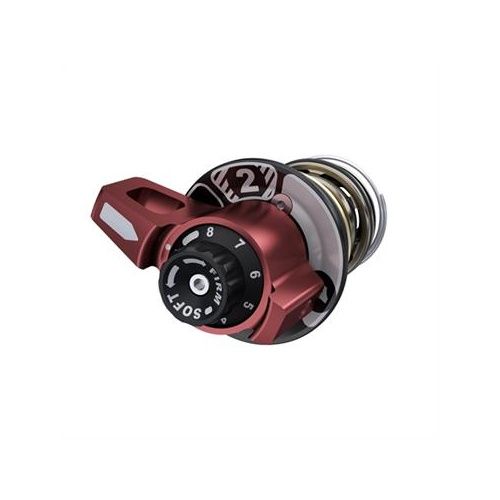

• 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride
• 8-Position Micro Adjust Dial offers refined damping adjustments
• Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.
• Hard Anodized Large Bore 6061-T6 Aluminum Shock Body for impact and corrosion resistance as well as increased oil volume for consistent performance.
• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up for reduced body roll and an overall increase in damping to reduce bottom out when pushed to the limit.
• Red Line high VI shock oil for consistent performance across all temperatures from -50F to 450F with anti-wear and lubricity agents.
• DOM tube steel upper control arms with Proprietary Heavy-Duty High-Angle Ball Joint.
• Heavy-duty fabricated steel components utilizing 3/16″ and 1/4″ steel plate
• Full-coverage differential skid plate constructed from 3/16″ steel plate
• Tire size 37 x 12.50R20 with a 20 x 9” with a 0 offset wheel
• Max tire with trimming 37 x 12.50” with a 20 x 10” with a -18 offset wheel

Tire Fitment

Recommended max tire with no trimming: 20 x 9 0 offset - 37 x 12.50 tire.

Max with trimming: 20 x 10 -18 offset - 37 x 12.50

Note: Not for use on Ram 1500 with factory 22" wheels. Not for use with 18" wheels.

Trimming requirements for larger than recommended wheel/tire include front valance, front felt liner edge, rear felt liner edge and front rear well edge mud flap.

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.
