2019-2024 Cummins 3500 6" Radius Arm Lift Kit (BDS1682H)

Click here to customize this Kit

Fits

BDS Suspension expands its listings for the late model 2019+ RAM 3500 4WD Diesel trucks; Designed to improve the looks and performance of your new RAM, these kits include everything necessary to correctly lift them for improved offroad capability with room for larger tires while maintaining on-road handling.

Part Number: BDS1682H

• HD tubular radius arms improve strength, offer more ground clearance & correct caster
• High strength 6" progressive-rate front coil springs for a great ride on any terrain
• Extended polyurethane bump stops to limit up travel
• Brake line brackets to allow full droop
• HD track bar relocation bracket to re-position front axles under the truck
• Forged drop pitman arm to correct steering angles
• Sway bar correction to maintain handling performance
• HD transmission crossmember
•  5" Rear block
• Transfer case indexing ring to correct front driveline angles
• BDS NX2 gas shocks to improve ride & offroad performance
• Allows clearance for up to 37" tires
• Indexing rings for both the 6-bolt & 8-bolt equipped trucks

Tire & Wheel Combinations:

• 37x12.50 w/ 20x9 and 4.5-5.625"
• 37x12.50 w/ 20x9 and 5.625

• Will not fit rear air-ride equipped models
• Will not fit chassis-cab models
• Will not fit dually models

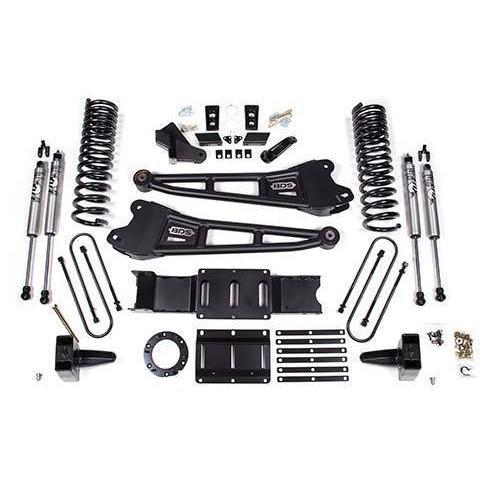

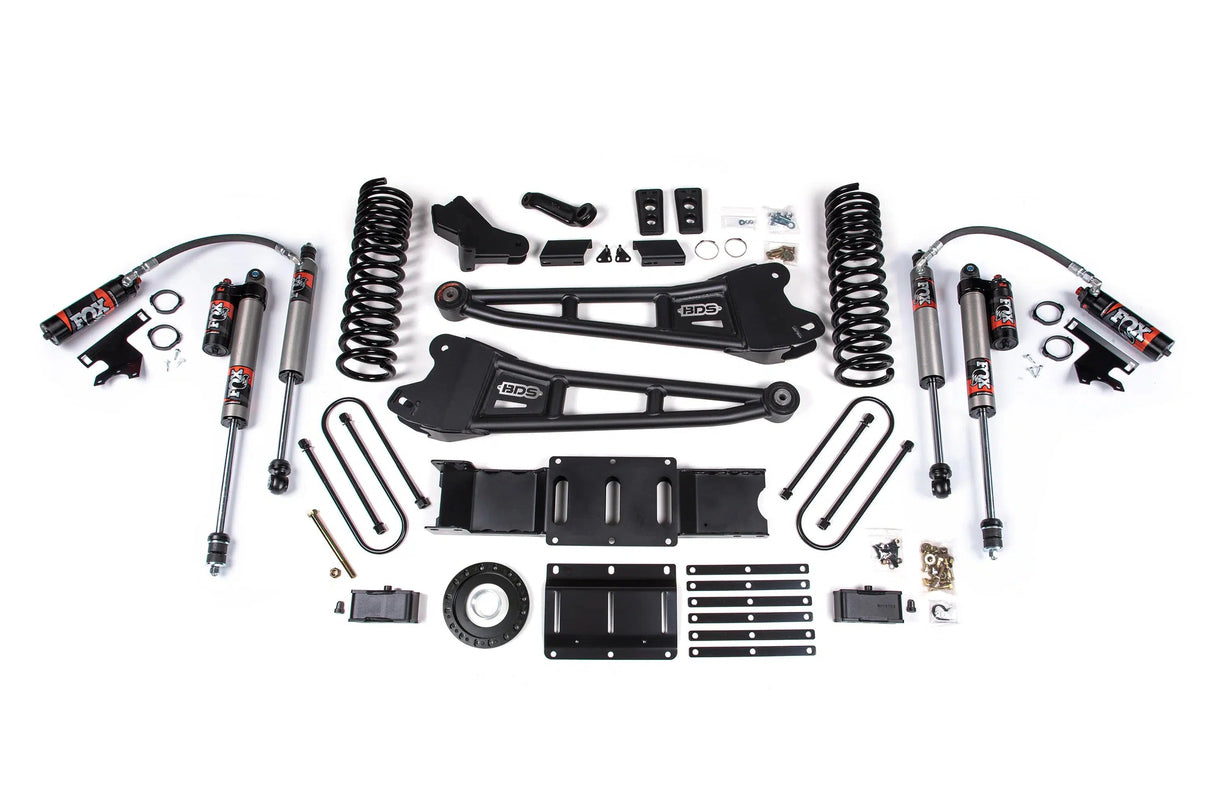

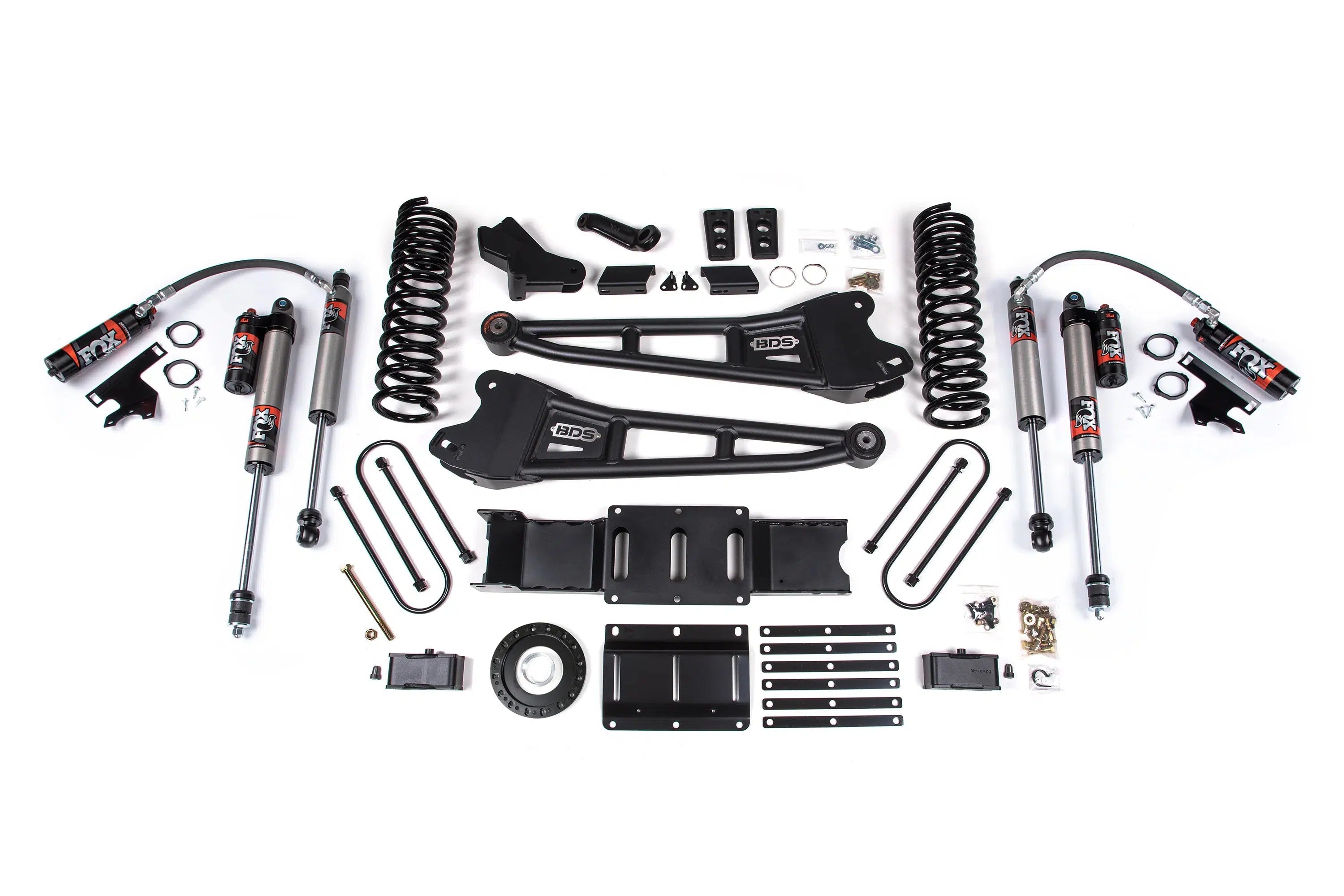

• Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
