2020-2022 Powerstroke 5" 4-Link Lift Kit (BDS1972FPE)

Fits

Click here to Customize this Kit

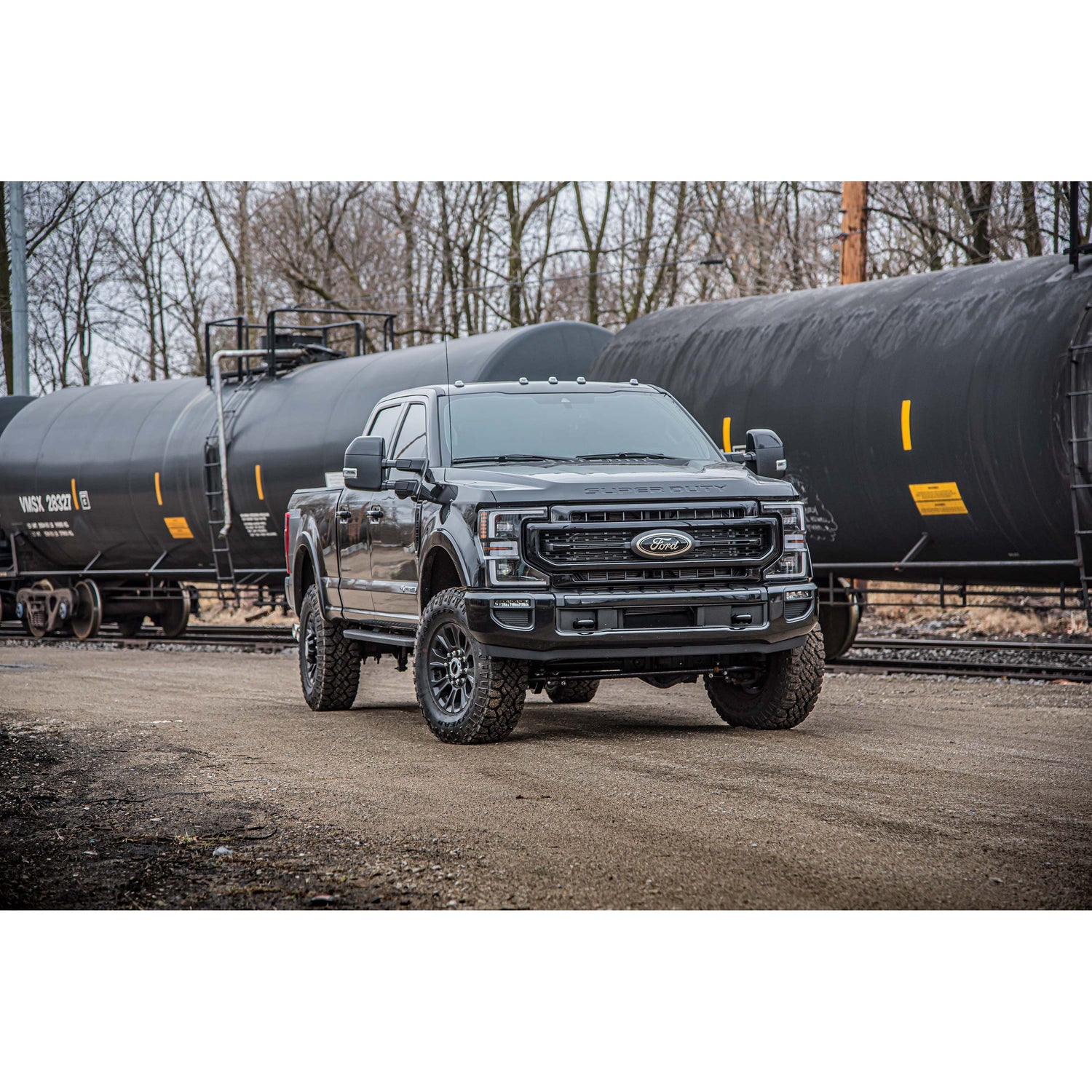

Crank your Powerstrokes suspension and handling up to 11 with the BDS 5" 4-link lift kit, this kit has everything you need to safely and properly lift your truck effectively improving your stance and off-road capabilities without compromising ride quality. And with Fox 2.5 Elite Series coilovers; your truck can handle any abuse you throw at it, on, or off-road.

Part Number: BDS1972FPE

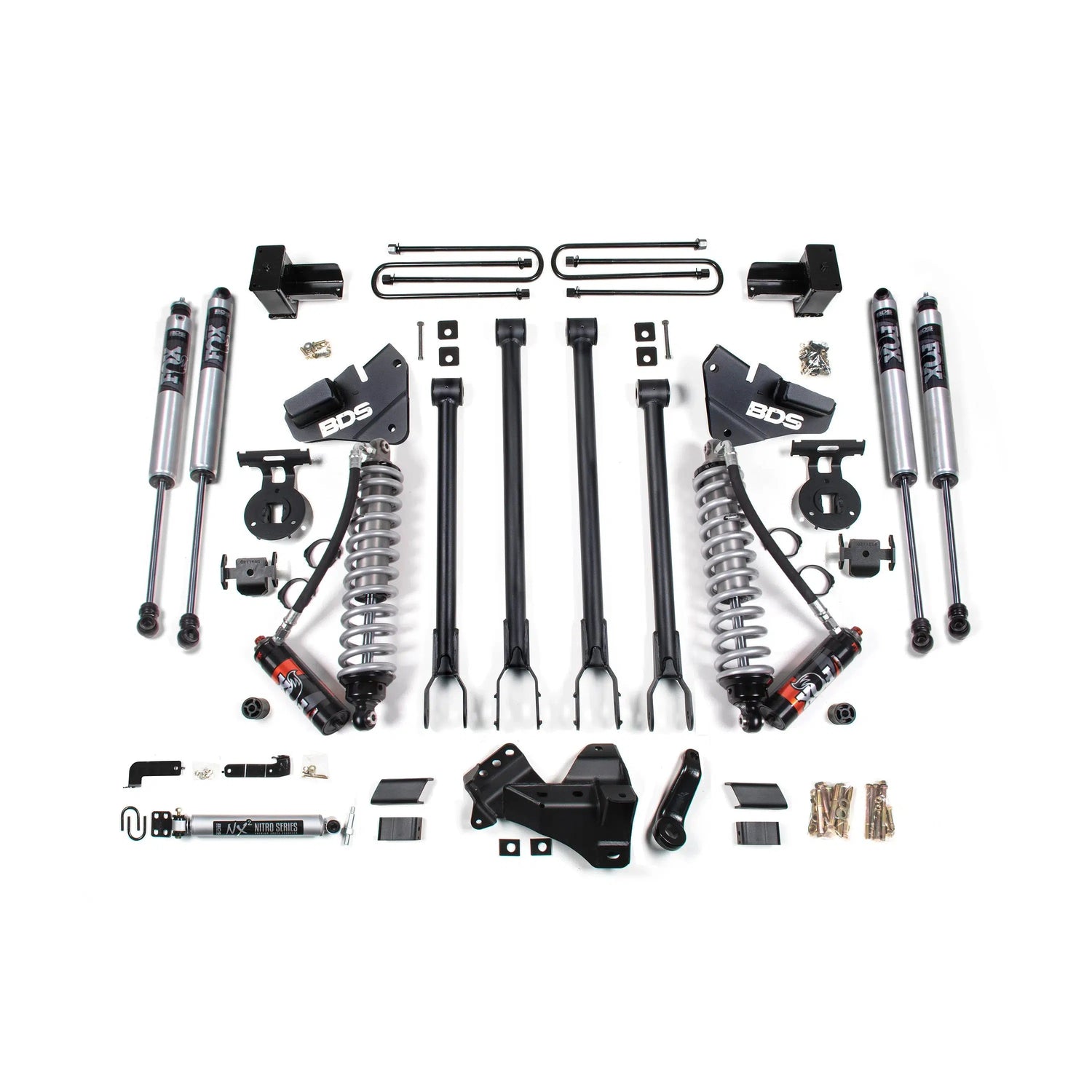

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Tire Fitment:

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

Rear Lift Option

Block Kit

• Included in the base system.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

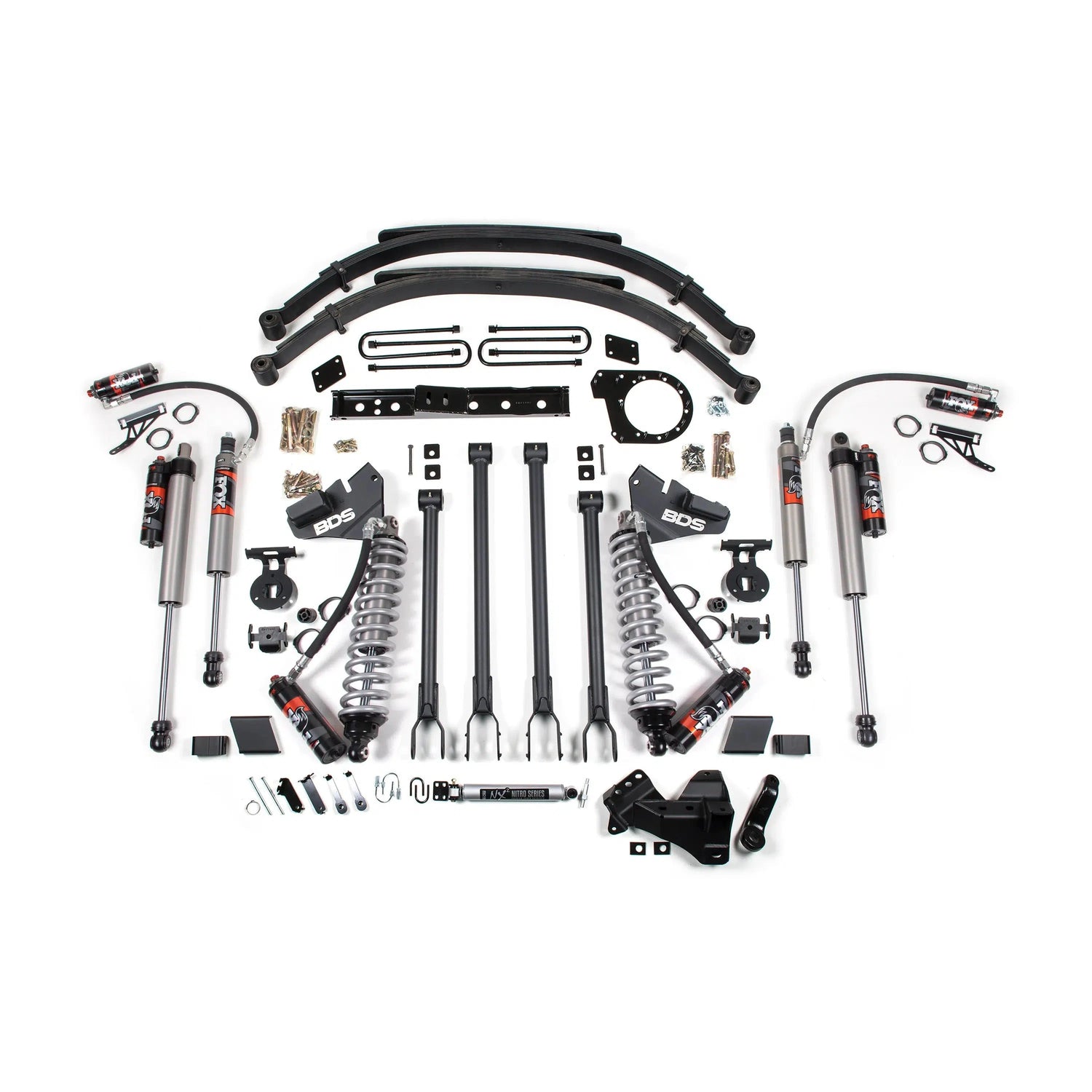

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

• Ford recommends the replacement of the pitman arm nut after each time it has been removed.
• If installed on a truck with a top-mounted overload spring, with an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) is required.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
• Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use the recommended specs listed in the wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
