2020-2024 Duramax 60" Traction Bar Kit RCLB/CCSB/ECSB/DCSB (WCF100826)

Fits

Stock trucks can benefit from traction bars with the animals these Duramax's are from the factory. But once you throw some mods at these trucks then it's almost necessary! Curb axle hop and twist with these Wehrli traction bars and let's be honest.....traction bars look sweet too!

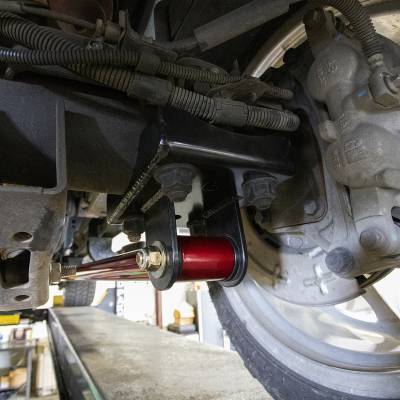

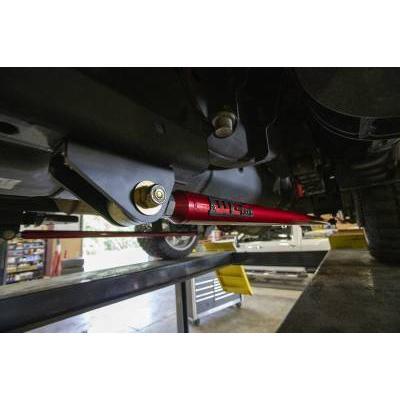

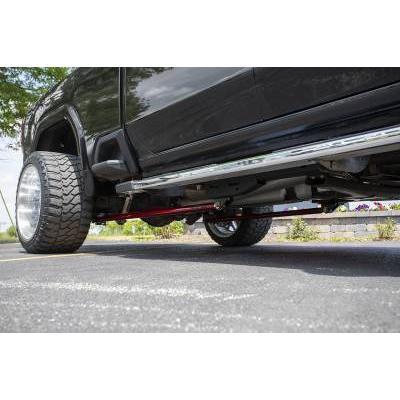

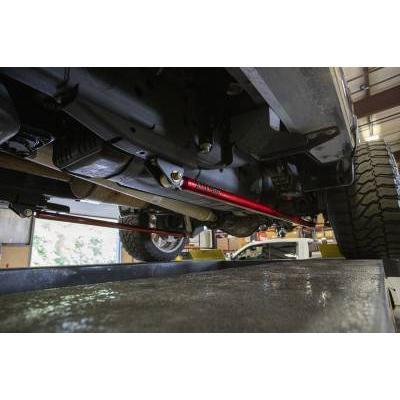

Traction bars are a necessary upgrade when increasing the horsepower on your diesel truck to prevent the axle from twisting which can lead to broken u-joints, driveshafts, and even twisted axle housings. Our traction bar brackets bolt onto the bottom of the axle tube via the axle u-bolts and weld to the frame on the front end. We use a high-quality RockJock rebuild-able and grease-able “Johnny Joint” heim connection at the frame to allow for adjustment of torsion on the axle or if you raise/lower the rear of your truck.

Part Number: WCF100826

• LIFETIME WARRANTY against bending or breaking (to the original purchaser)

• 60" Heavy Duty Bars

• HD Poly Bushings w/ solid heims on both ends

• RockJock Johnny Joints

• Frame side weld on mounts

• Axle side bolt-on mounts

• Grade 8 Hardware

• Powder Coating with zinc primer base coat

• If you have a Double Cab Long Bed or Crew Cab Long Bed truck use part number WCF100876
• If you have a Lift Kit and your U-Bolts face up instead of down like factory, use Traction Bar Kit WCF100854
• If you have a Lift Kit and your REAR lift Block is taller than 5" or your total lift height is 6" or greater, use part number WCF100876
• If your truck is on a big lift, please measure from your axle mounting point to your frame mounting point to ensure the bar length will work properly for your application.
