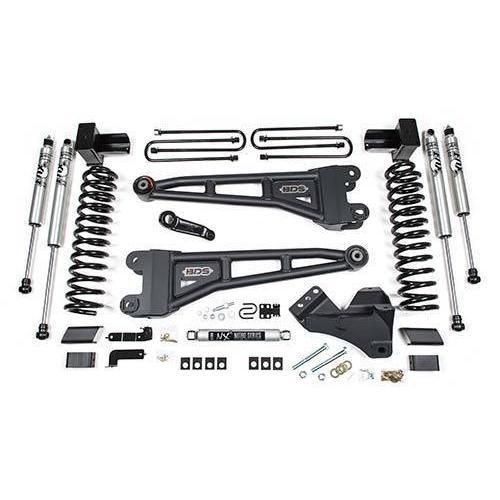

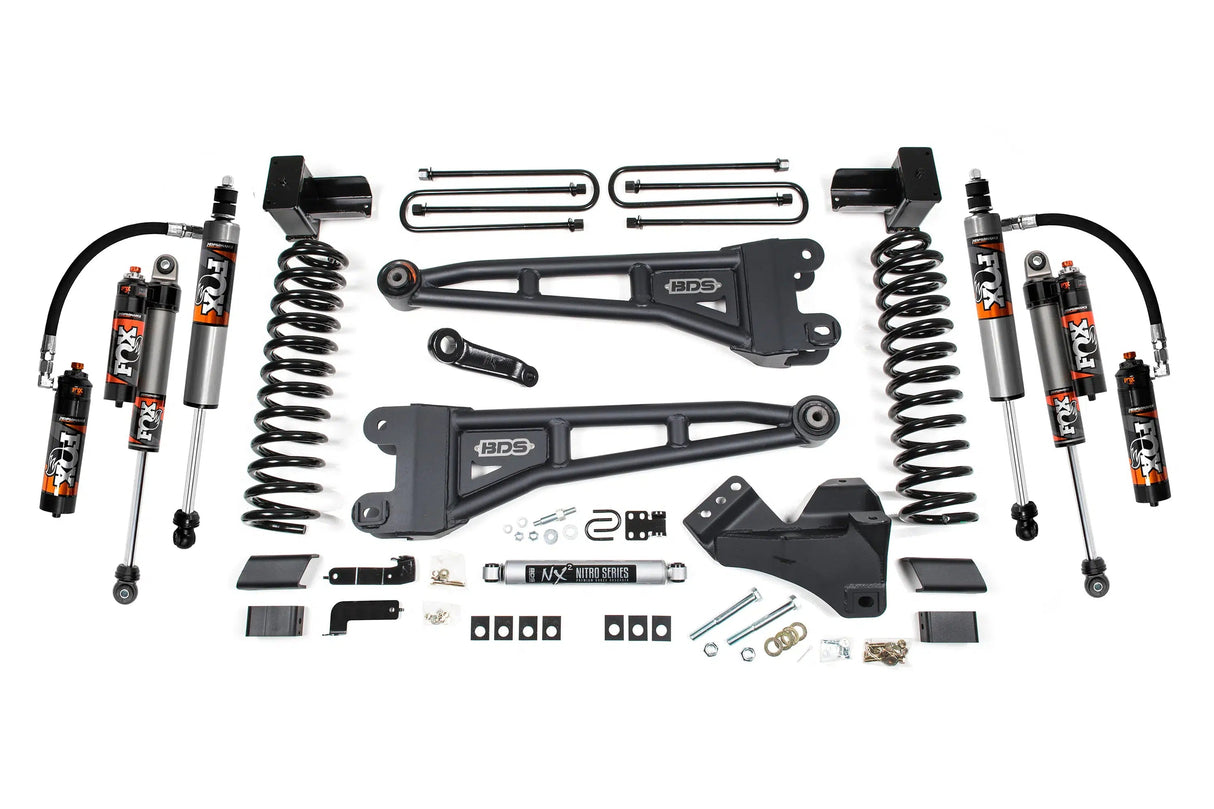

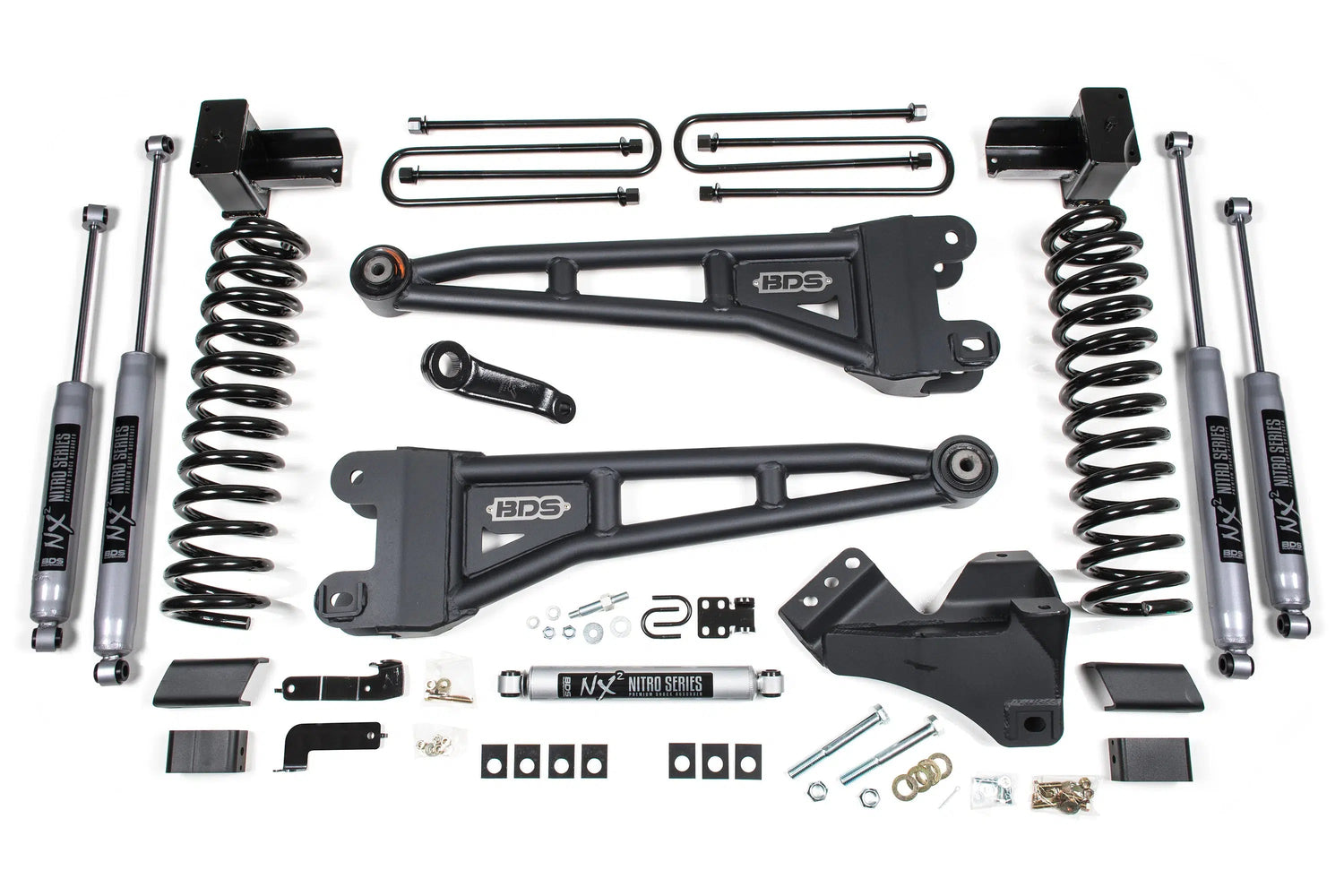

2020-2022 Powerstroke DRW 4" Radius Arm Lift Kit (BDS1563H)

Click here to customize this Kit

Fits

BDS 4" radius arm lift systems with BDS NX2 Series shocks for your Ford Super Duty offer improved performance, capability, vastly superior damping capability to soak up the harshest terrains offroad while offering comfort for your daily commute, & quiet operation. Only the best quality materials & relevant parts go into BDS Kits; which means less maintenance, less time looking, and less confusion for you. Everything you need to take your new Super Duty to the next level.

Part Number: BDS1563H

• Forged Drop Pitman Arm with integrated drag link flip
• HD Radius arms
• E-coated u-bolts
• Sway bar & brake line relocation brackets
• bump stop extensions
• 4" ProRide coil springs
• 4.5" fabricated block with an integrated bump stop
• 1/4" thick HD Trackbar Drop Bracket made with 1-3/4" OD -10GA DOM tubing with support gussets
• HD Radius Arms
• OE Style 3-1/4" rubber bushings
• Maintenance-free bushing life
• BDS NX2 Shocks
• Allows Fitment of 37" Tires

Tire & Wheel Combinations:

• 37x12.50 w/ 17x9 and 4.5"-5"
• 37x12.50 w/ 18x9 and 4.5"-5"
• 37x12.50 w/ 20x9 and 4.5"-5"

• Removal of the factory leaf spring block required.
• Net rear lift will vary depending on the height of the factory block but will result in a level stance.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• Front exhaust modification may be required to clear the front driveshaft (Gas Only)
• Torque wrench capable of 405 ft-lbs required.
• 37 x 12.50 tires may require minor trimming.


• Installation Instructions 1
• Installation Instructions 2
• Difficulty: 4 (where 1 = easiest and 5 = complicated)
