2022-2024 Tundra 6" Lift Kit (44-52660)

Fits

Engineered for easy installation, retention of suspension geometry & proper driveline angles, this 6" ReadyLift kit has everything to ensure you get excellent driving and handling out of your suspension system, no matter what you put it through.

Part Number: 44-52660

• Retains factory turning radius
• Works with the auto adjust headlights
• CNC bent, welded, and boxed sub-frame drop assemblies maintain suspension geometry
• Increase in ground clearance
• Minimal trimming required
• Sub-assembly correctly positions the differential to maintain CV axle & driveline angles

Tire Fitment:

• Allows for 5.75" backspace (18-20mm Offset) on 20x9 with 35" tires
• Max tire with trimming 5.5" backspace (10-13mm Offset) on 20x9 with 37" tires

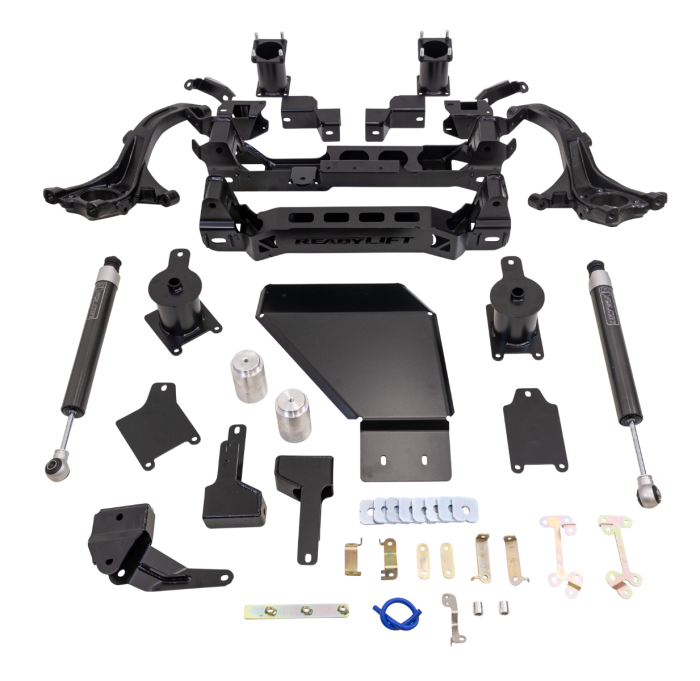

• Front & Rear Crossmember
• Skid Plate
• Front Brake Line Bracket - Right
• 2 Front Brake Line Bracket - Right
• 1 Front Brake Line Bracket - Left
• 1 Front Brake Line Bracket - Left
• 2 Driver & Passenger Knuckle
• Front Strut Spacer
• Driver & Passenger Front Sway Bar Drop
• Cam Block Off Plates
• Headlight Sensor Bracket Sleeve and HSB-Left
• Driver & Passenger Front Bump Stop
• Rear Crossmember Nut Plate
• 1/4" Front Differential Vent Hose
• Rear Trackbar Bracket
• Driver & Passenger Rear Sway Bar Drop
• Driver & Passenger Rear Bump Stop
• Rear ABS Relocator
• Rear ABS Bracket
• Falcon 1.1 Rear Shock
• Hardware pack

• Not for use on 2022+ Tundra TRD Pro w/ Bilstein coilover shocks, the TRD rear sway bar option or trucks equipped with Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS)
• Kits only work with factory 20" wheels - will not work with factory 18" wheels
• Most aftermarket wheels at 20" or larger are compatible (confirm fitment prior to installation)
• For Tundra with Rear Coil Spring use part number 44-52620.
• Toyota OEM lift kit cv shafts PT362-3432B and PT362-3431B are recommended by Toyota on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer.
