2023-2024 Powerstroke 4" Coil Spring Lift Kit (49-23420)

Fits

For those looking for that perfect mid-level lift kit without the hefty price tag, you've found it! ReadyLift's 4" Coil Spring Lift Kit. Engineered to be a direct bolt-on kit for easy installation. It features Radius Arm Drop Brackets to lower the mounting points of the radius arms, this helps to correct caster angle and improve vehicle geometry, especially for vehicles with a solid axle front suspension. Providing you with better handling and stability with increased camber control to minimize wheel hop and maintain proper alignment. Effectively increasing your truck's handling predictability and giving you that neck-breaking ground clearance that dominates any road or terrain with ease.

Part Number: 49-23420

• Radius Arm Drops for correct caster angle in kit
• Bolt-on lift kit, no structural modifications required
• Increase in tire size & ground clearance
• Ideal alternative to a full lift kit

Tire Fitment:

• Recommended tire size: 37" - 12.5"
• Recommended wheel: 17" and up x 9" wide, +25 offset / 6" backspacing (minor trimming of the front valance may be necessary)

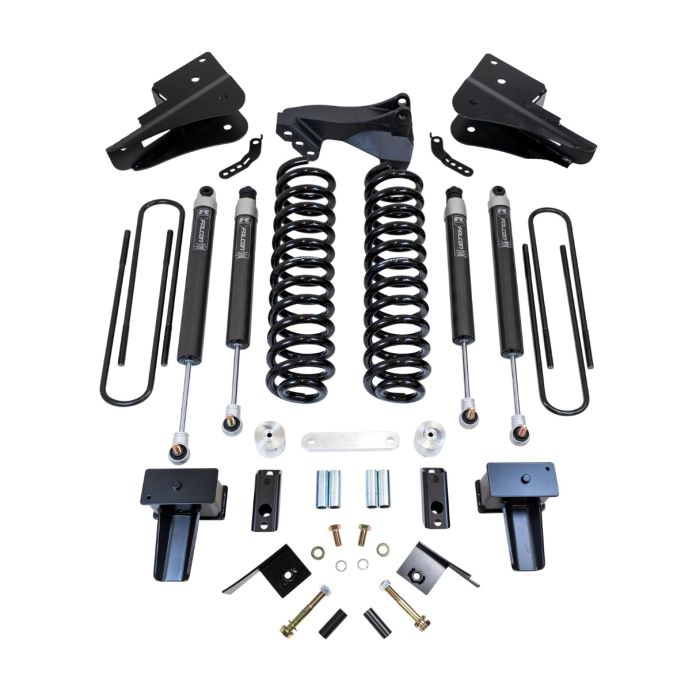

Includes:

• 4" Lift Springs
• Falcon 1.1 Monotube Front and Rear Shocks
• Track Bar Relocation Bracket
• Radius Arm Drops
• Sway Bar Drops
• Bump Stop Extensions
• Carrier Bearing Drop
• Front Brake Line Brackets
• Fabricated Rear Lift Blocks
• Hardware Pack

• Trucks equipped with the "Onboard Scale" option will require the Auto-Leveling Headlight Bracket PN: 67-23410
• Tremor versions will not gain the full 4" over stock ride height
• Not recommended for 2WD or gas trucks
• Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT
• New auto headlight brackets are only for stock radius Arms

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
