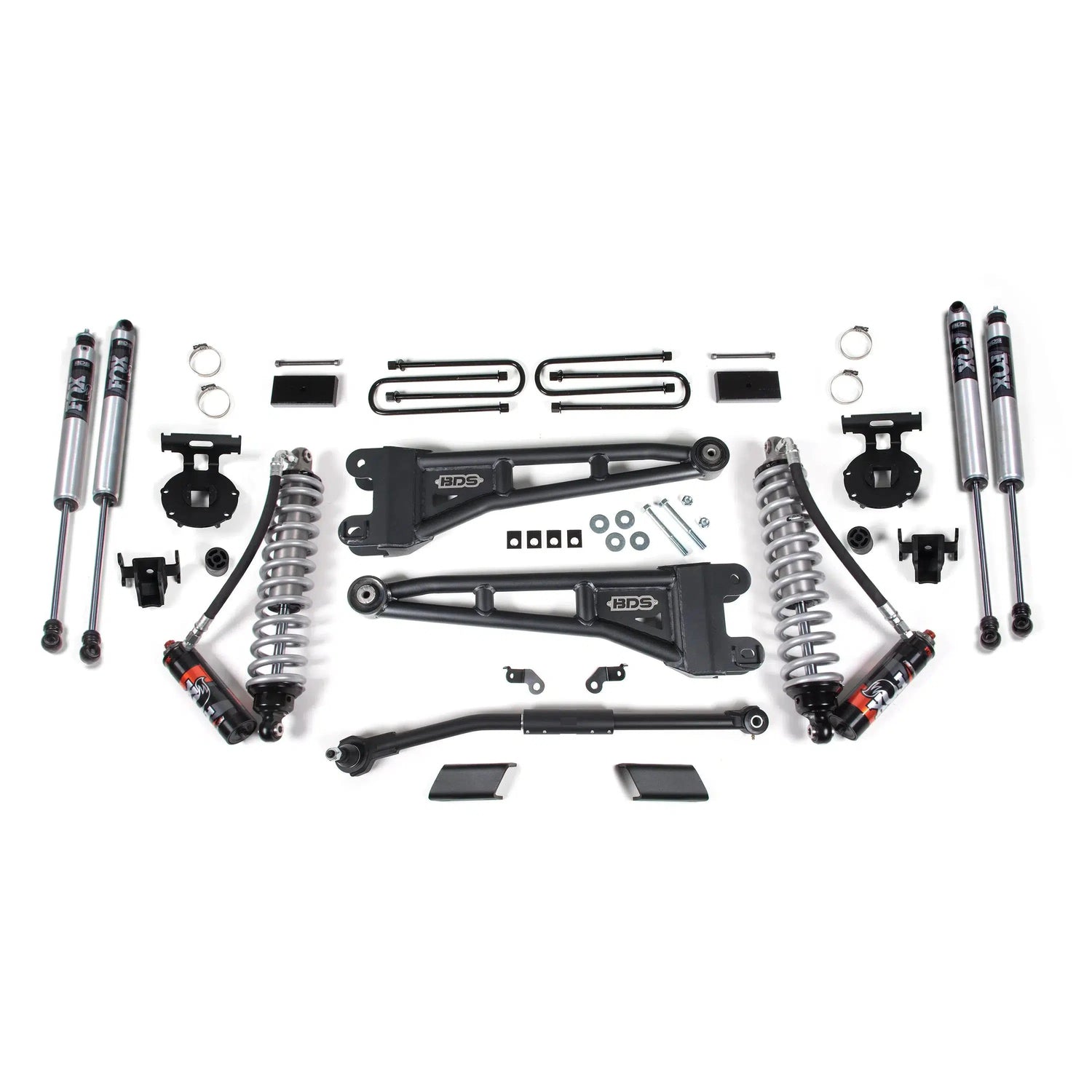

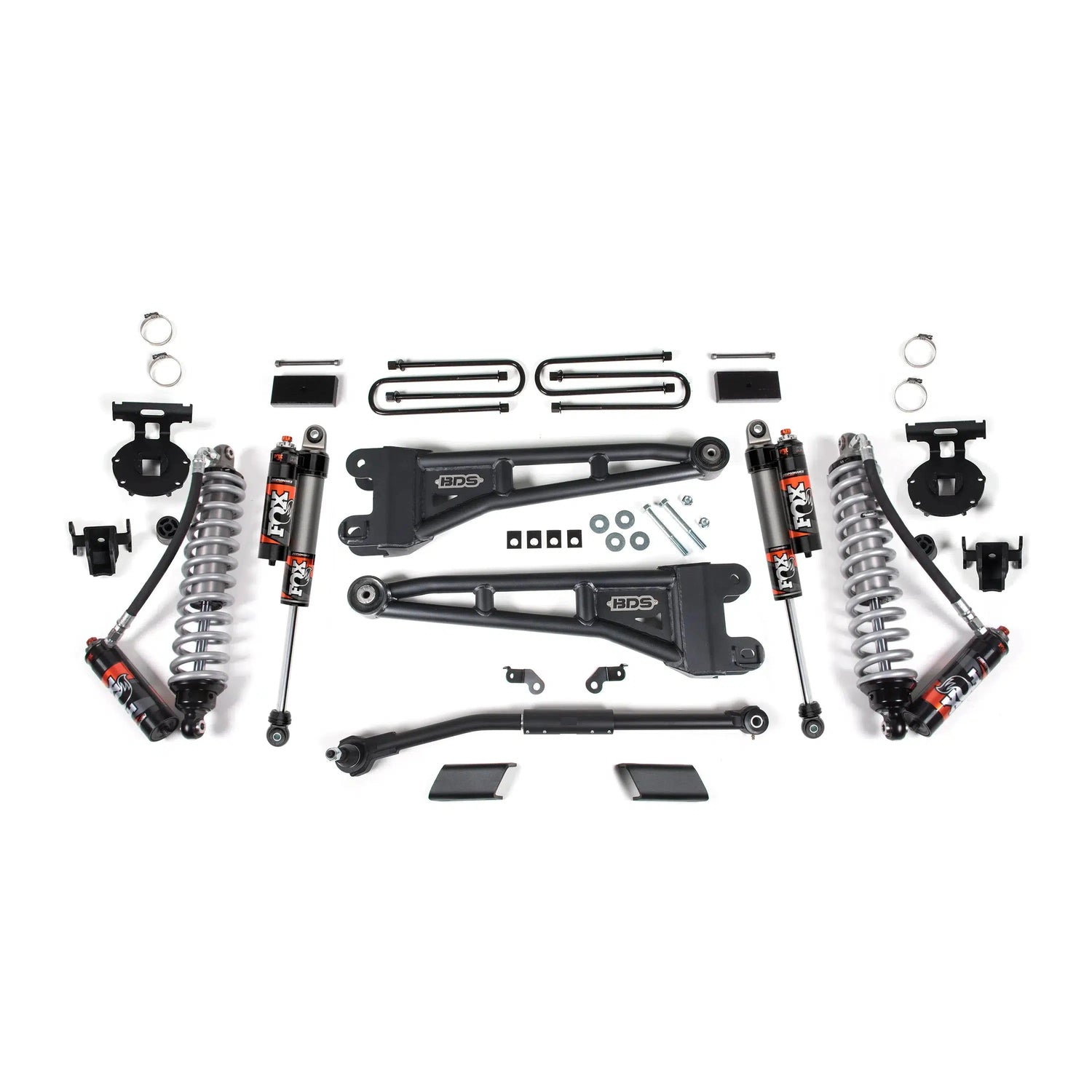

2023-2024 Powerstroke 3" Coilover Conversion Radius Arm Lift Kit (BDS2201FPE)

Fits

Built to outperform; this 3" radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Part Number: BDS2201FPE

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Tire Fitment:

• 35 x 12.5 with 17 x 9 and 5 in. Backspace
• 35 x 12.5 with 18 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 5 in. Backspace

• Vehicles with radius arm mounted ride height sensors will require BDS123303.
• Designed for use on diesel models, but can be installed on gas trucks, will achieve additional 1/2 inch front ride height
• Installation requires a torque wrench capable of 406 ft-lbs.
• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
• Trucks without top mounted overload spring will require (x4) UBT4031 available to purchase separately.
