2023+ Powerstroke HO Hot Side Intercooler Pipe (SPE-S100222)

Fits

Note: Exclusively for the high-output models

SPE meticulously engineered and rigorously tested the new Hot Side Intercooler pipe for the 2023+ Powerstroke HO Engine. Beginning with the compressor outlet; SPE introduced a billet 3” adapter sealed to the turbo via a 5mm o-ring. This thick o-ring ensures consistent sealing across temperature variations. The outlet also maintains the factory snap/quick connect ring, simplifying installation. The 3” intercooler pipe, crafted from robust T6 aluminum, is bent to minimize angles, enhancing airflow and visual appeal.

Part Number: SPE-S100222

• Specifically tailored for the 2023+ HO 6.7L Powerstroke.
• Mandrel bent heavy wall aluminum tubing.
• Includes the hot side retainer clip for enhanced stability.
• A welded bung for the hot side pre-intercooler temperature sensor ensures precise temperature readings.
• A larger pipe size ensures enhanced airflow.
• Available in a polished finish for a clean, sleek look.
• Billet 3” turbo adapter with a substantial 5mm o-ring outclasses the competition.
• Eliminates the old factory o-ring issues.
• Compatible with both factory and aftermarket turbo kits, including most non-vgt applications.
• 5-ply silicone couplers are superior and more robust than the standard design.
• Seamless installation process even for those new to the task.
• No need for additional tuning!

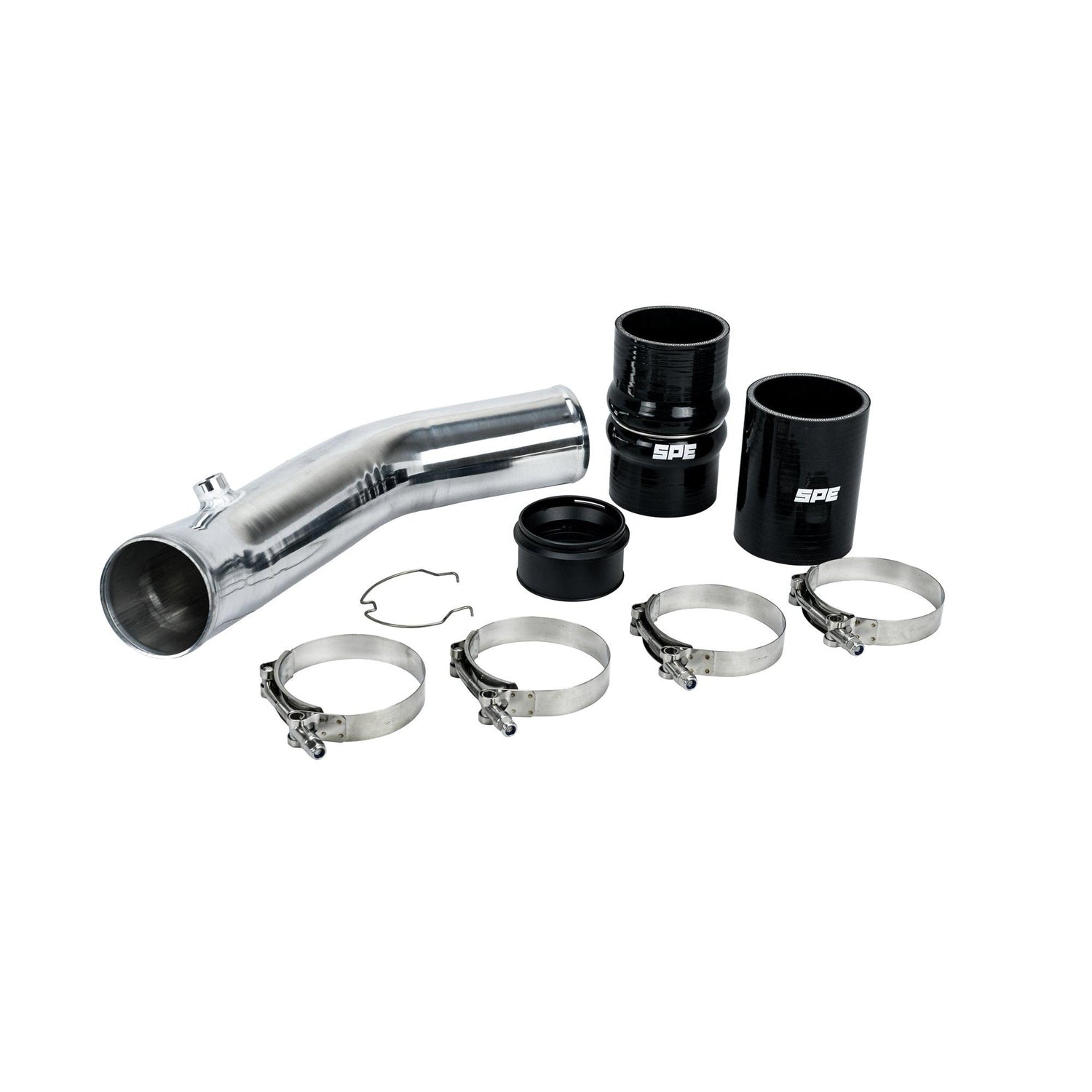

Includes:

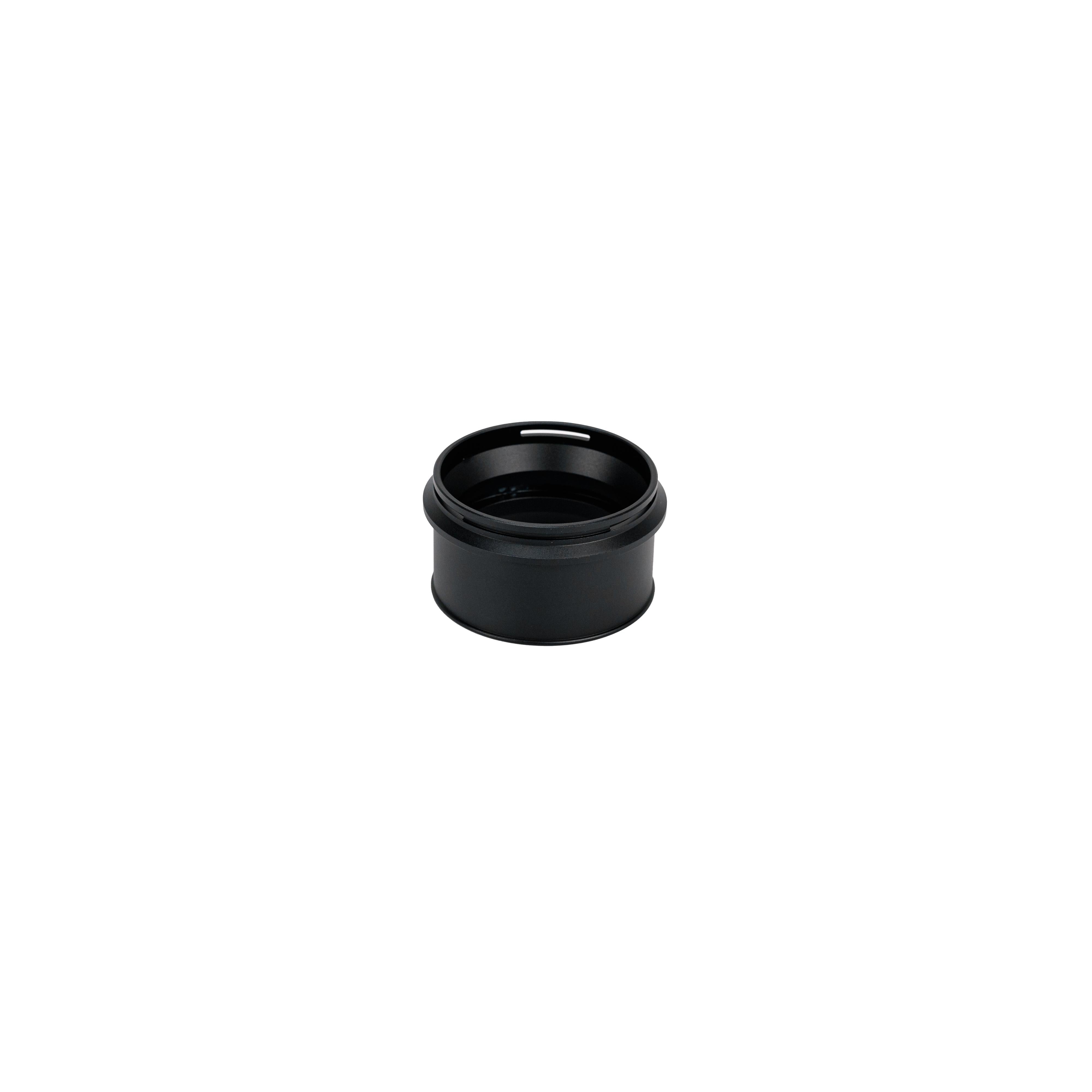

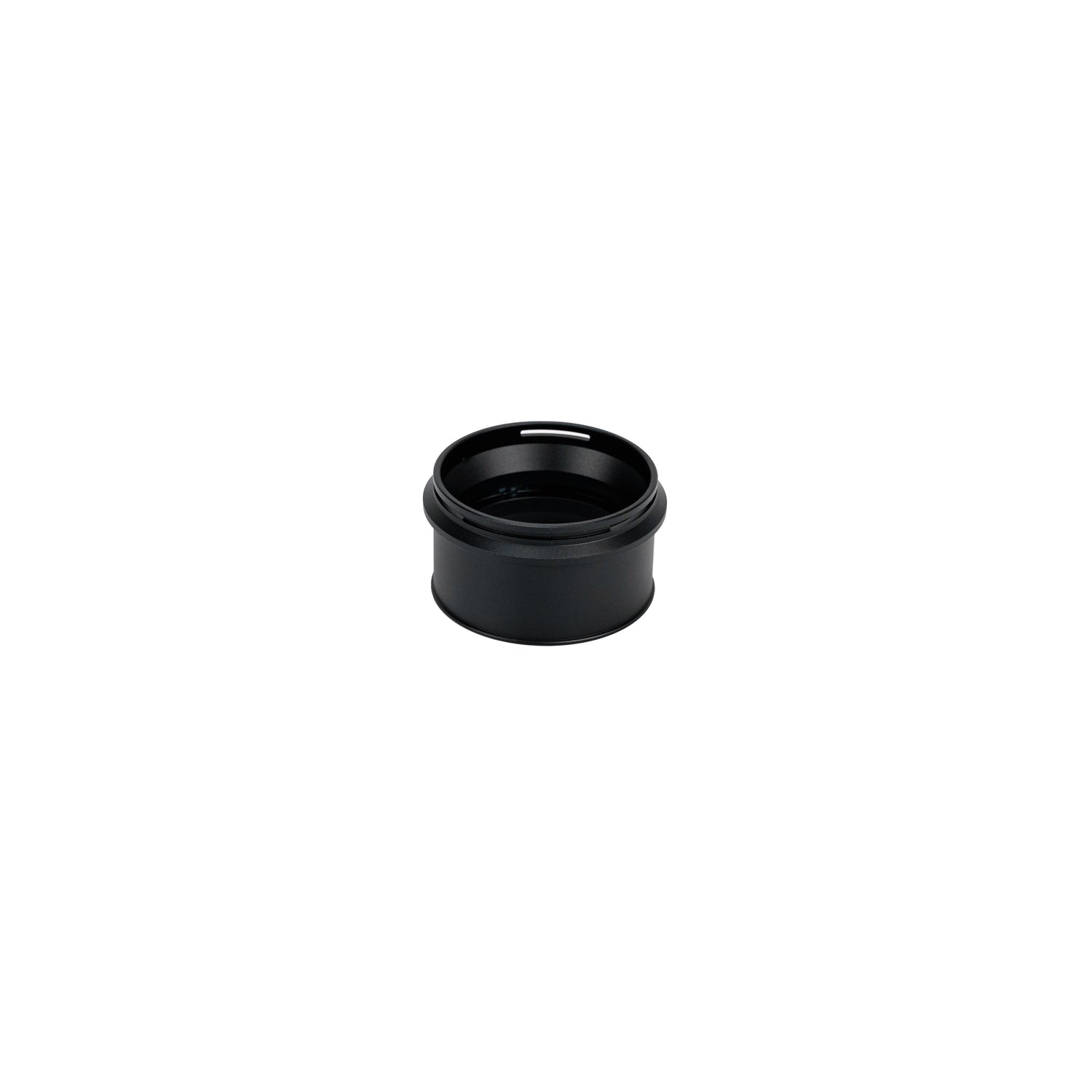

• 1- Billet aluminum adapter (black anodized).
• 1- SPE designed hot side retainer clip

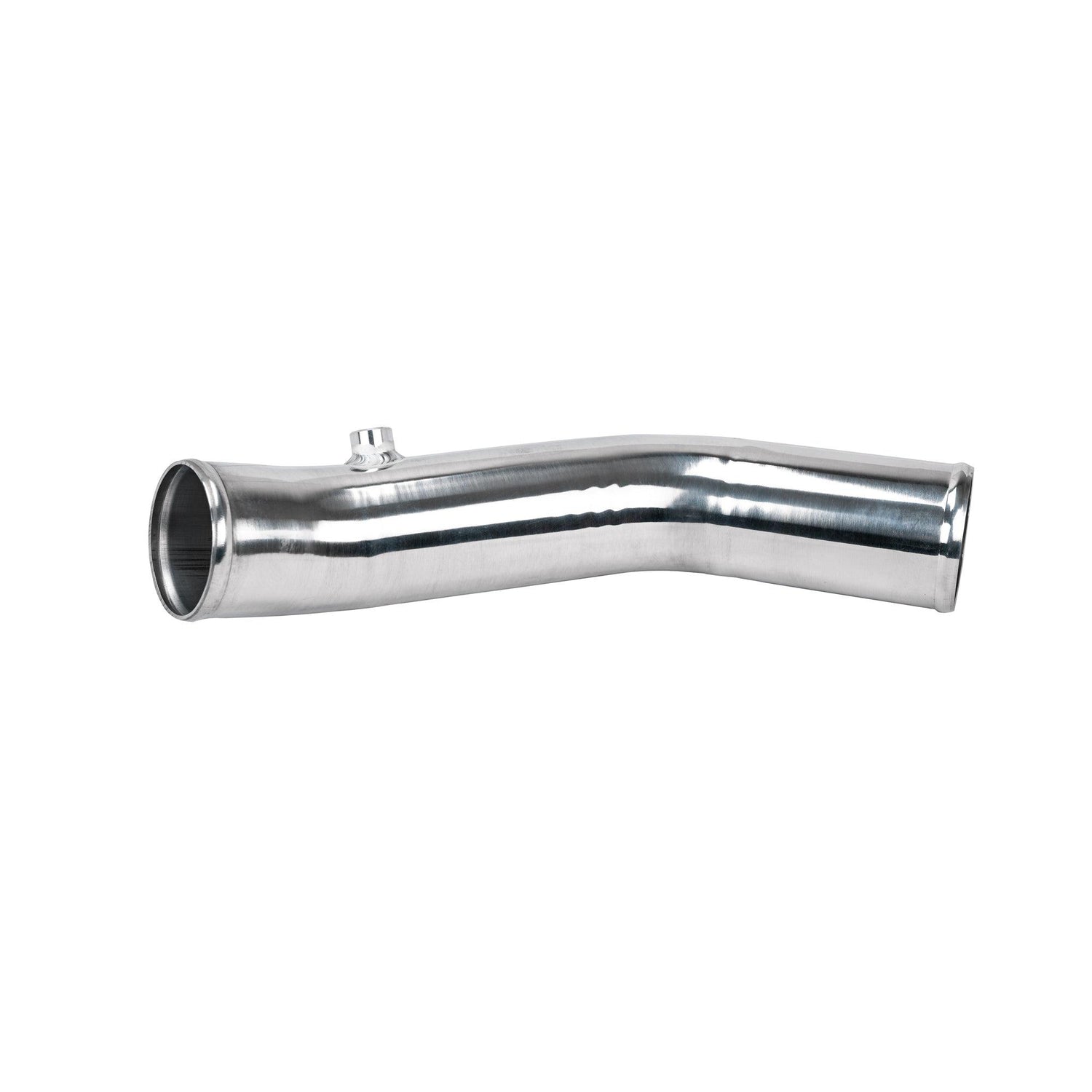

• 1- 3” mandrel bent intercooler pipe.
• 1- 5mm o-ring.

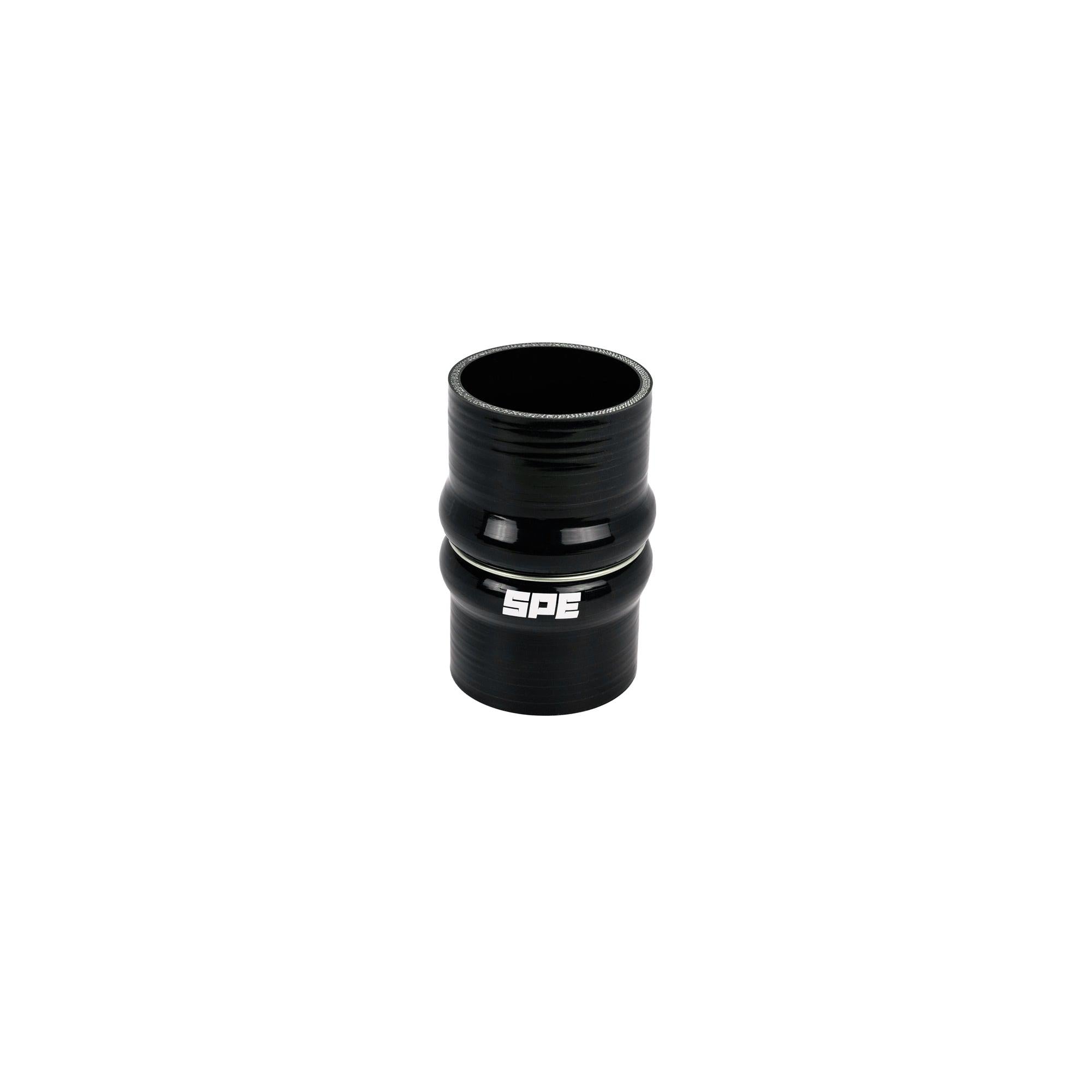

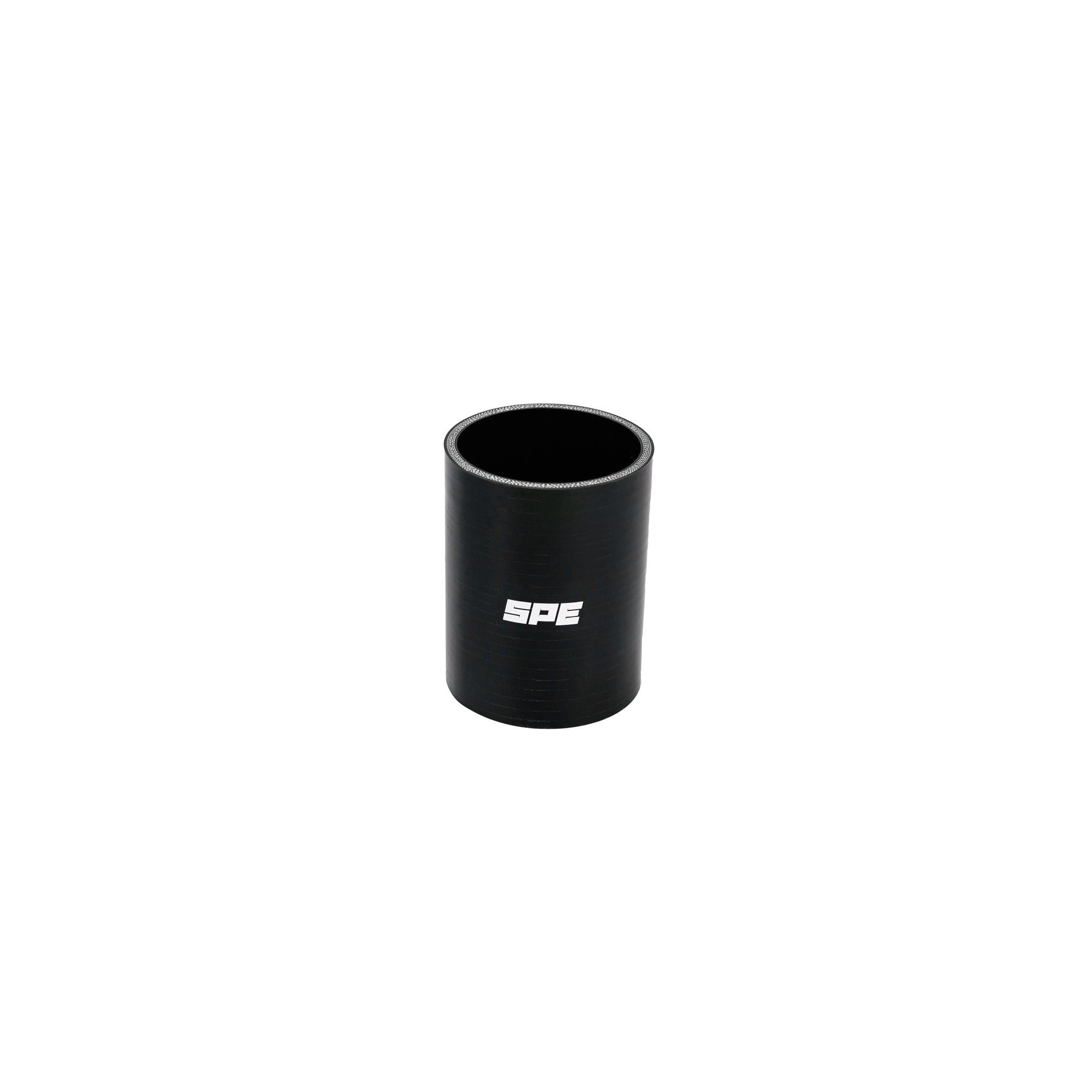

• 2- 5-ply silicone couplers.
• 4- T-bolt clamps.
• 1- Detailed instructions
