2023+ Powerstroke Oil Filter Housing (SPE-S100244)

Fits

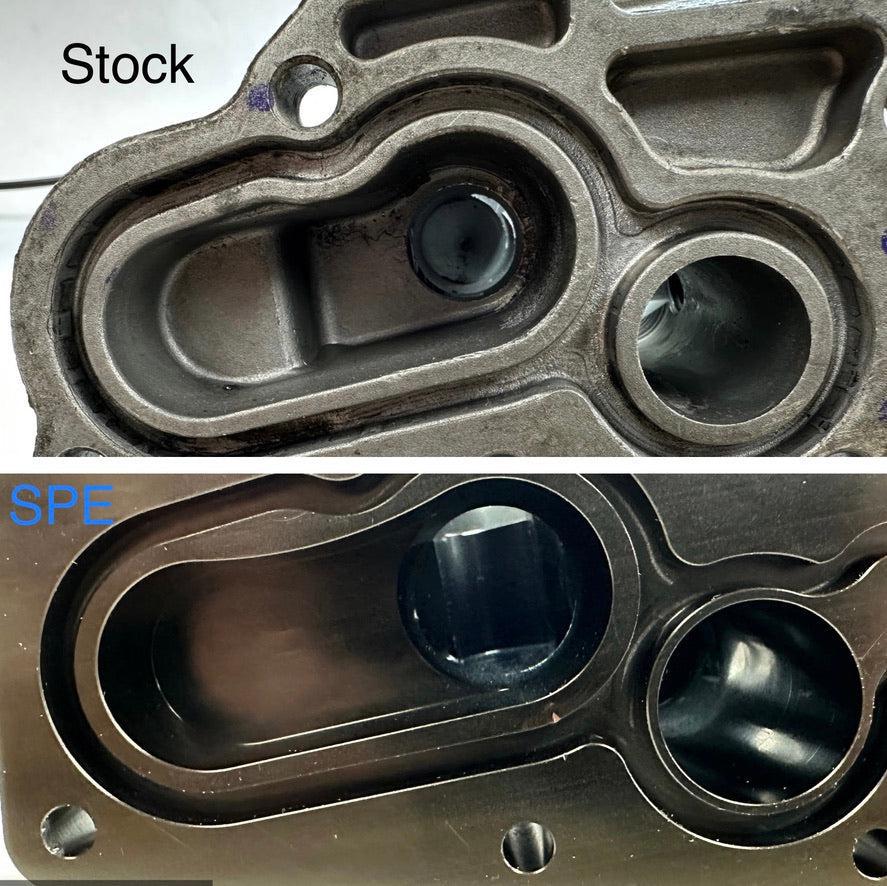

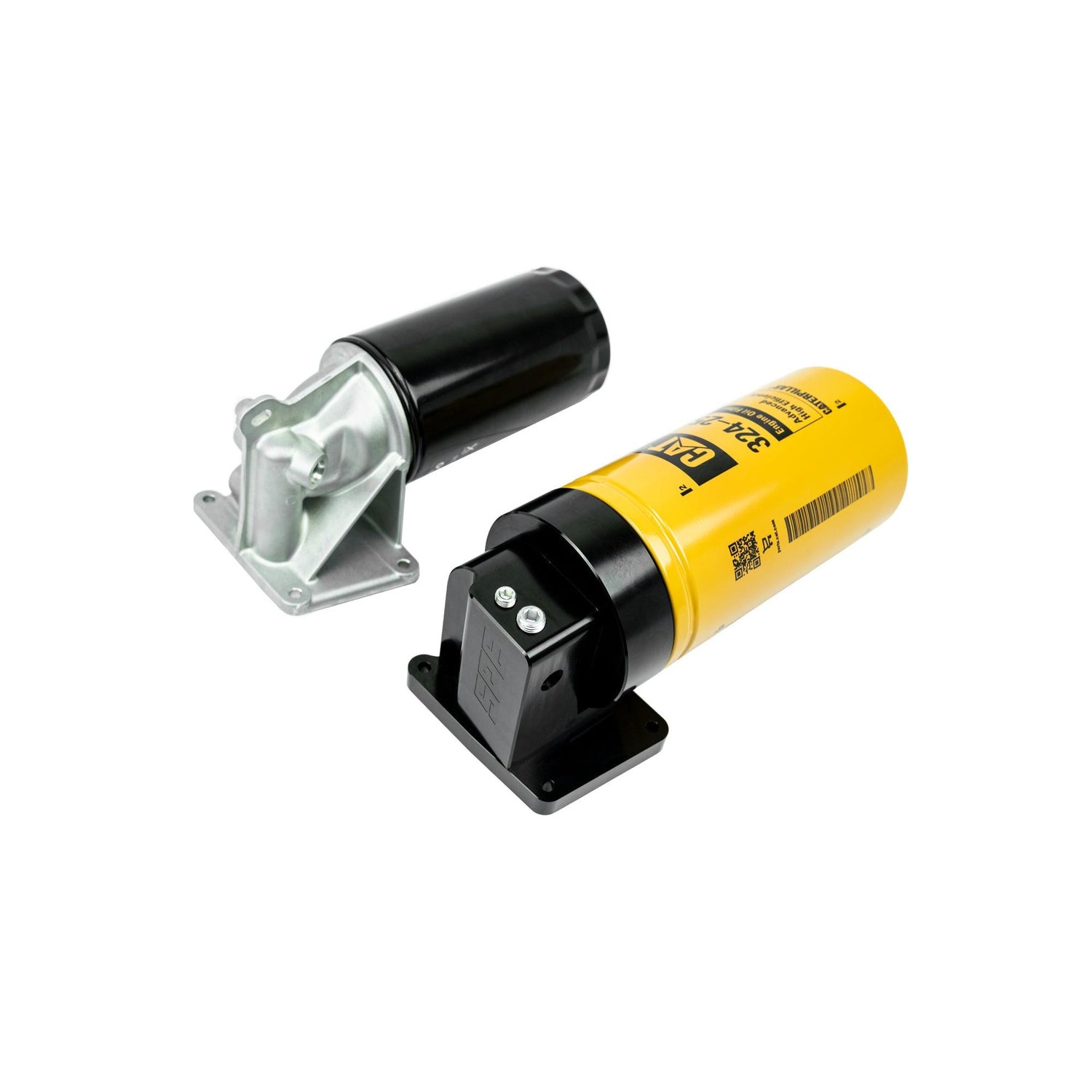

The absolute best oil filtration and flow for your 6.7L Powerstroke is now available. SPE has developed an oil filter housing that not only utilizes CAT filtration but also adds the huge flow needed to keep these engines alive under extreme conditions. This kit uses the CAT 1R-1807 or CAT 324-2598 filter. Both filter options are 100% efficient at 20 microns and 20% efficient at 4 microns, with 1R-1807 having the most oil capacity and the housing design increases flow by 30%!

Part Number: SPE-S100244

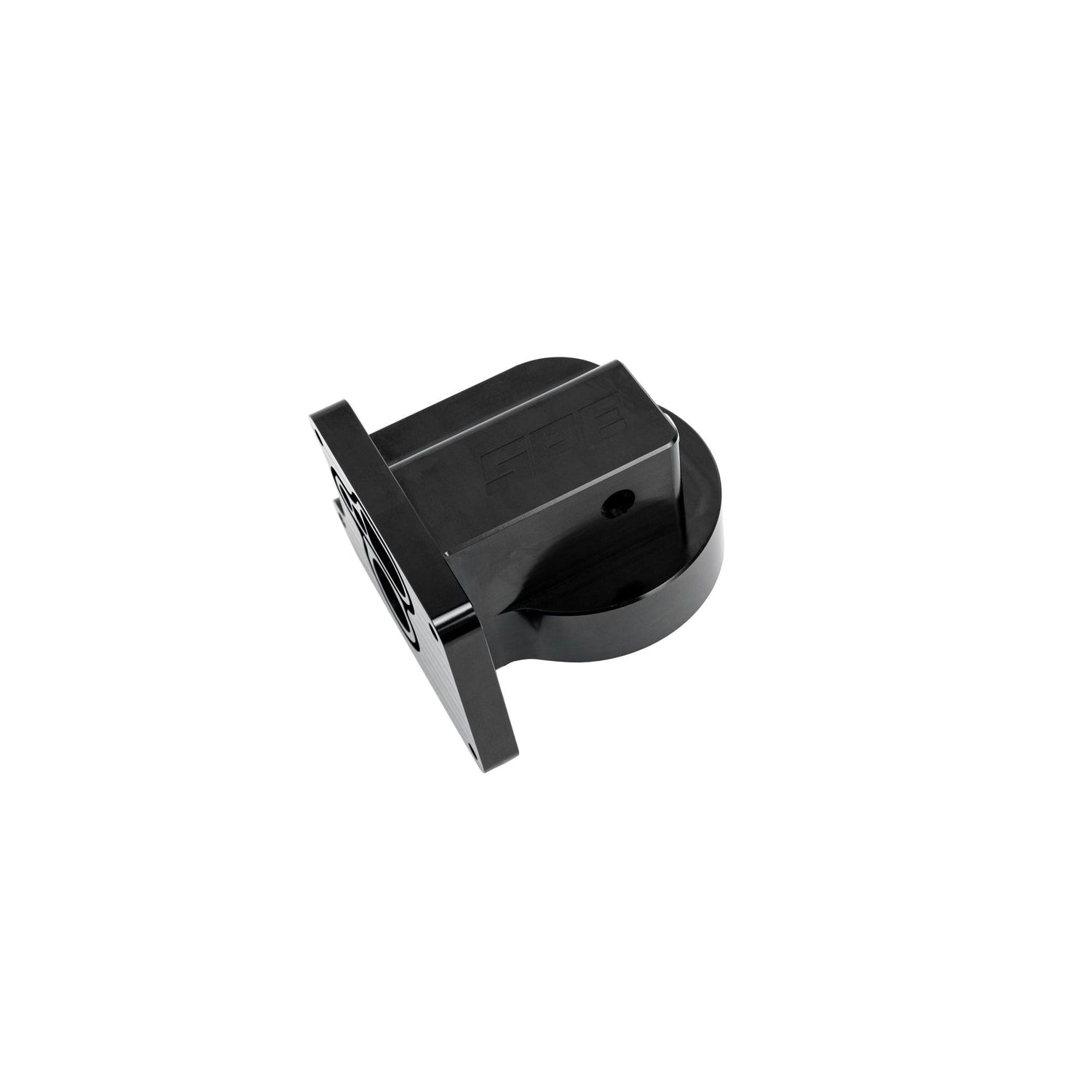

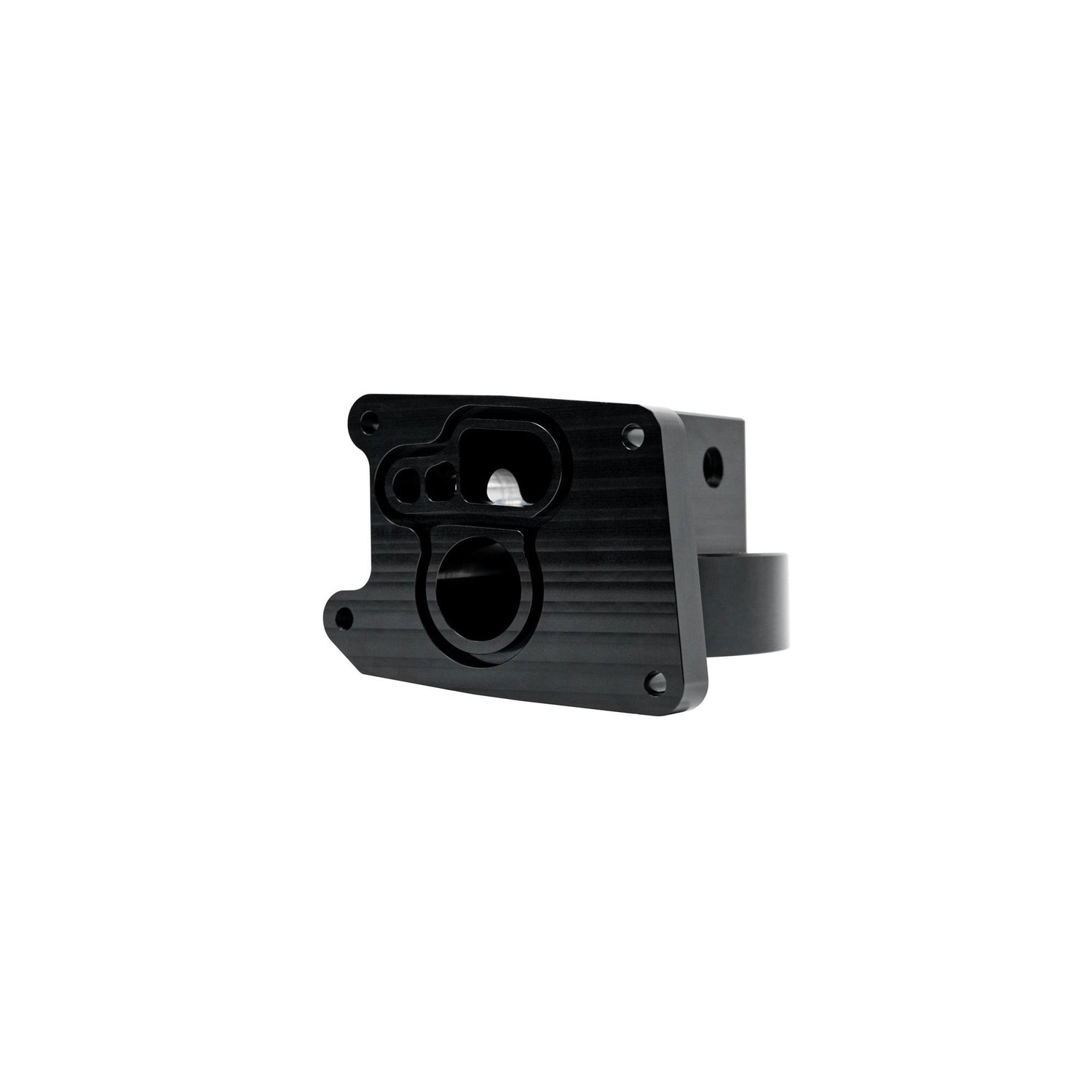

• Black anodized CNC machined billet aluminum housing

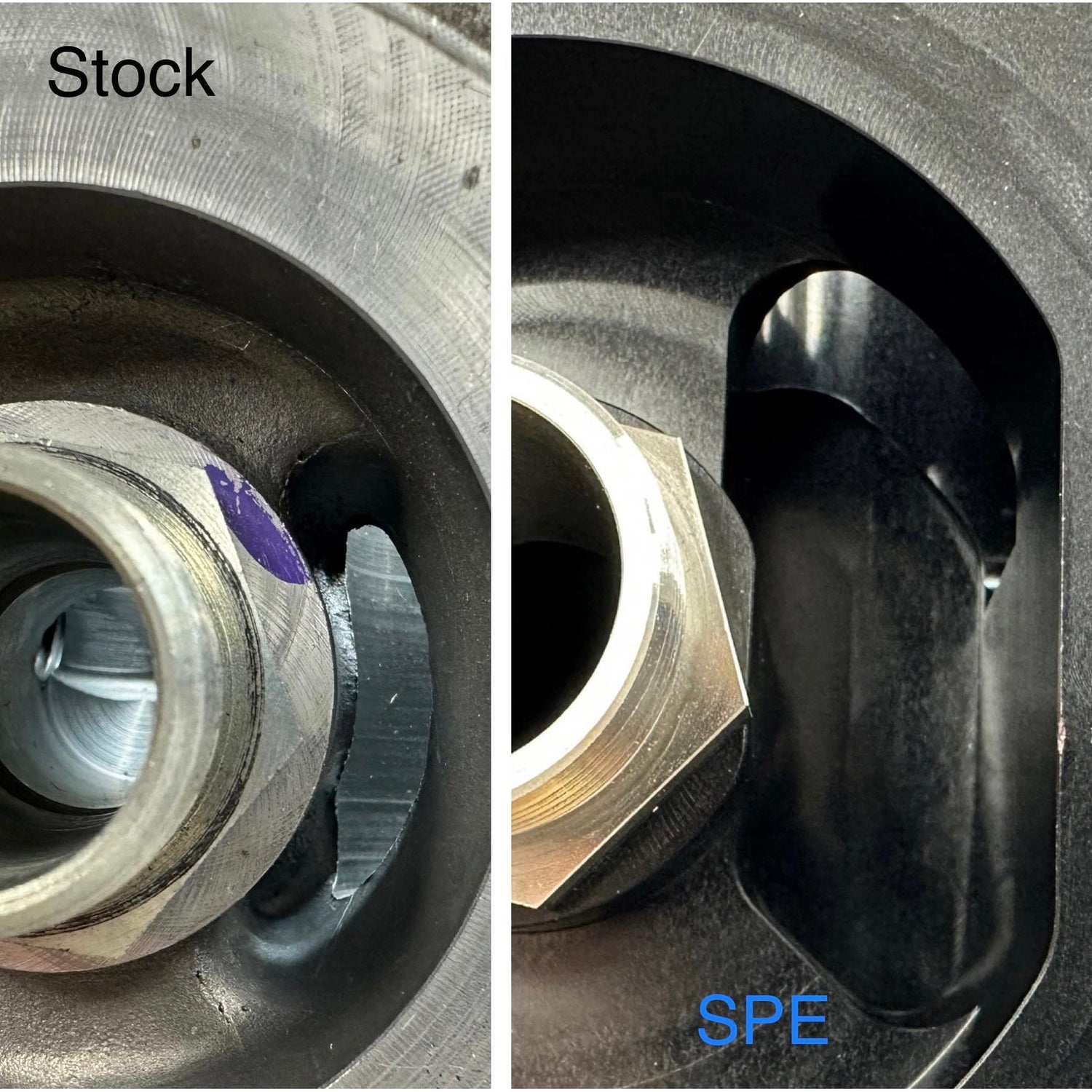

• 30% overall flow increase
• Stainless steel hardware

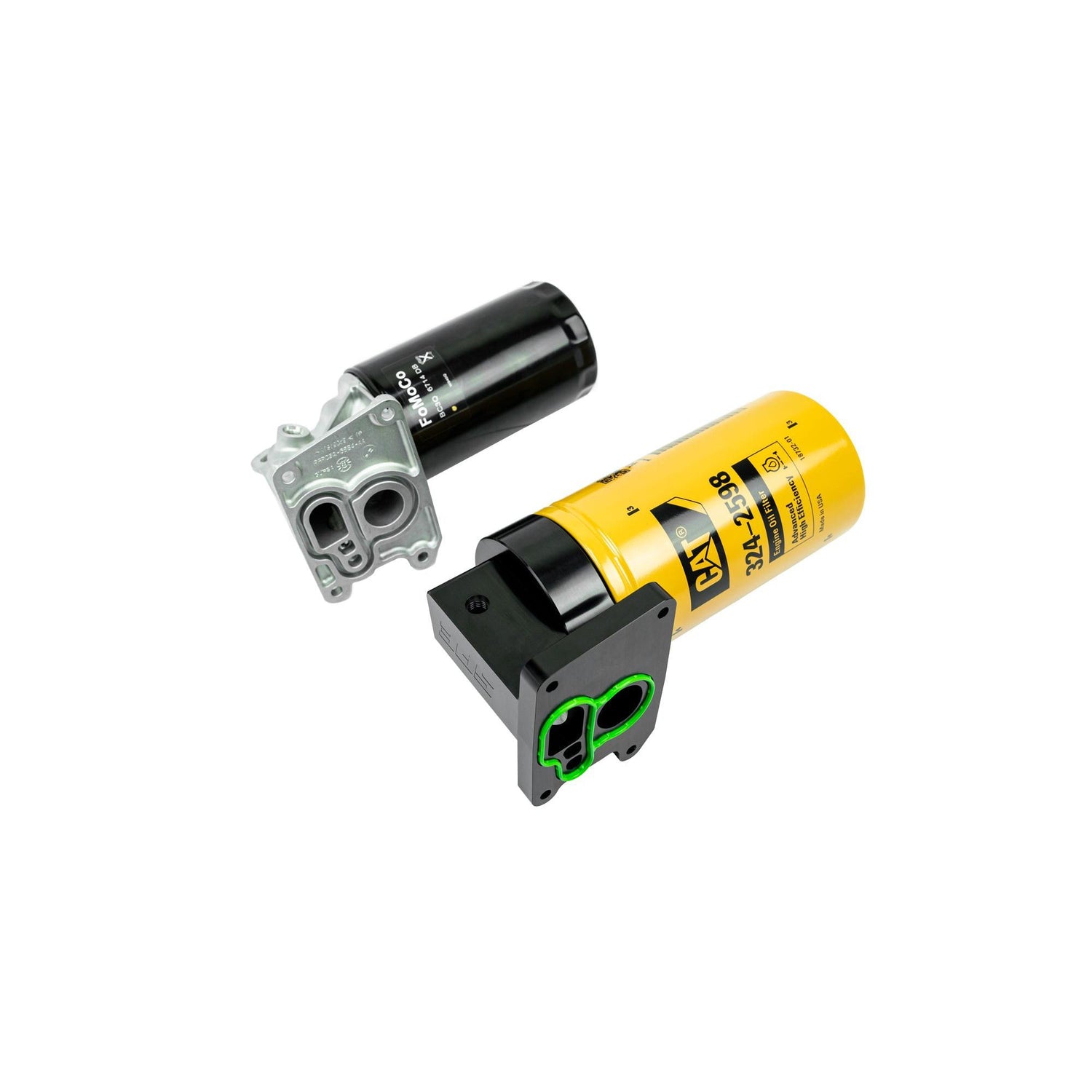

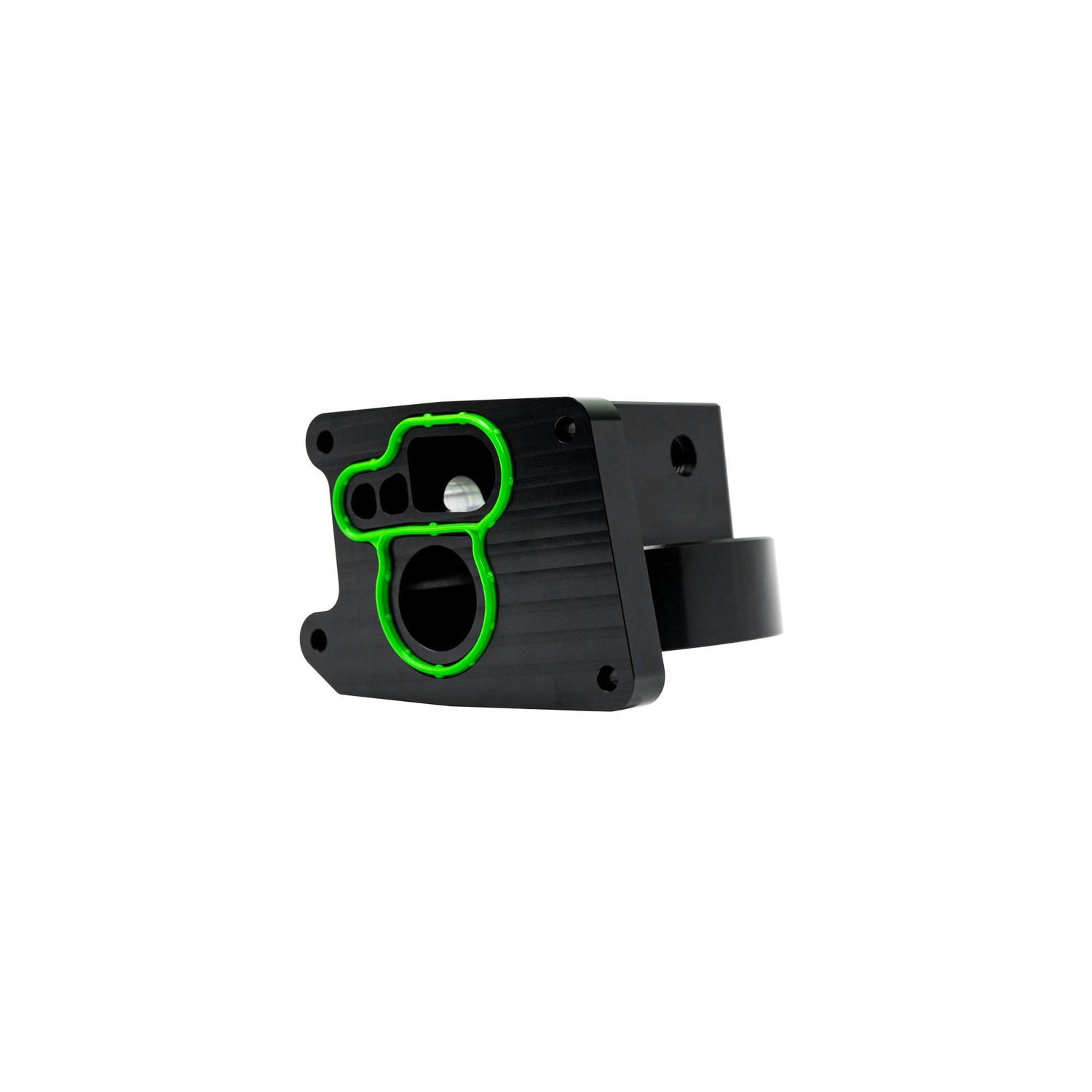

• Factory-style SPE green injection molded gasket
• Retains factory sensor locations
• 2 auxiliary oil ports in  ⅛ NPT and ¼ NPT (plugs include)
• Works with the SPE cast lower oil pan (heater and drain back bungs are accessible)
• Extends service intervals
• Increases flow and filtration

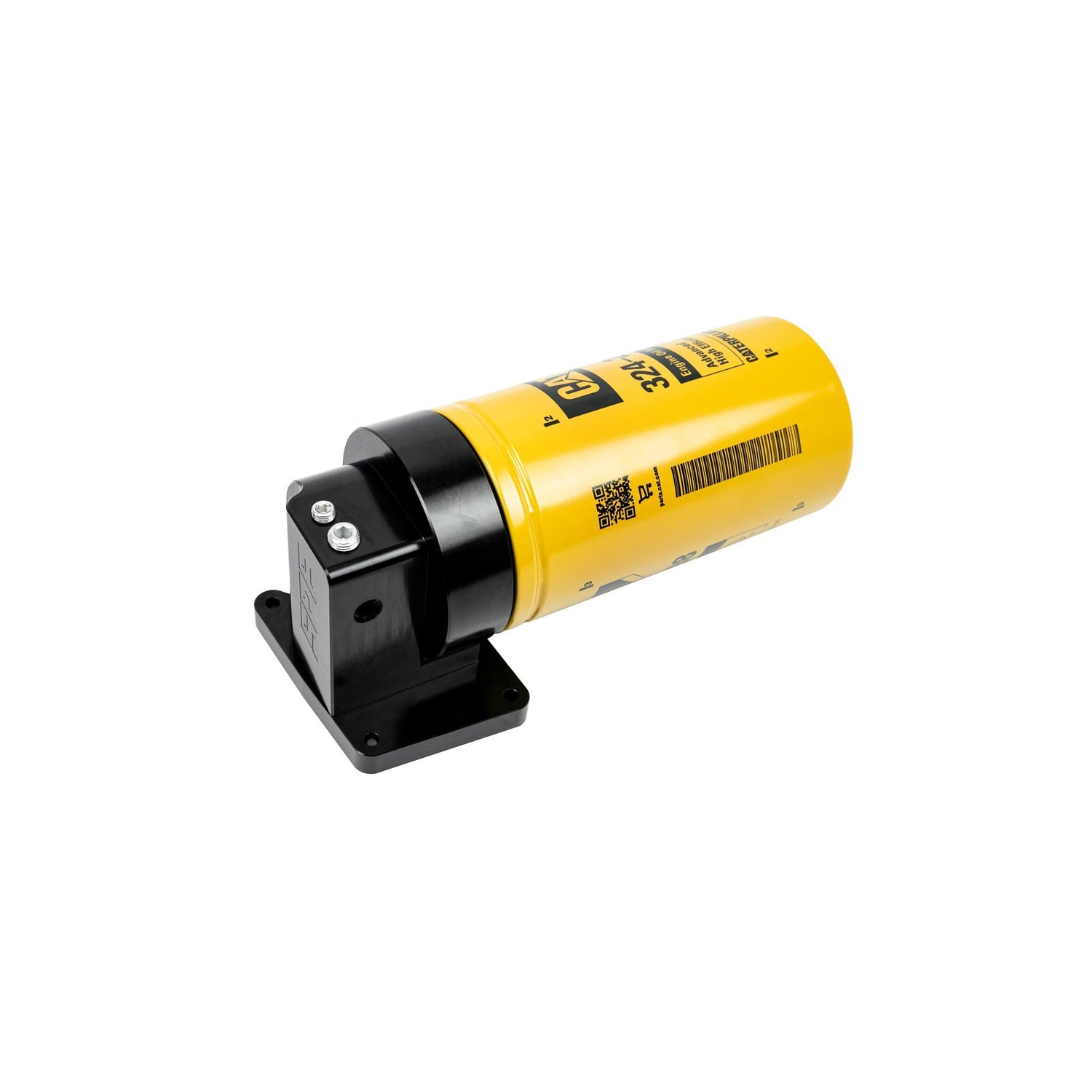

• Two CAT filter options

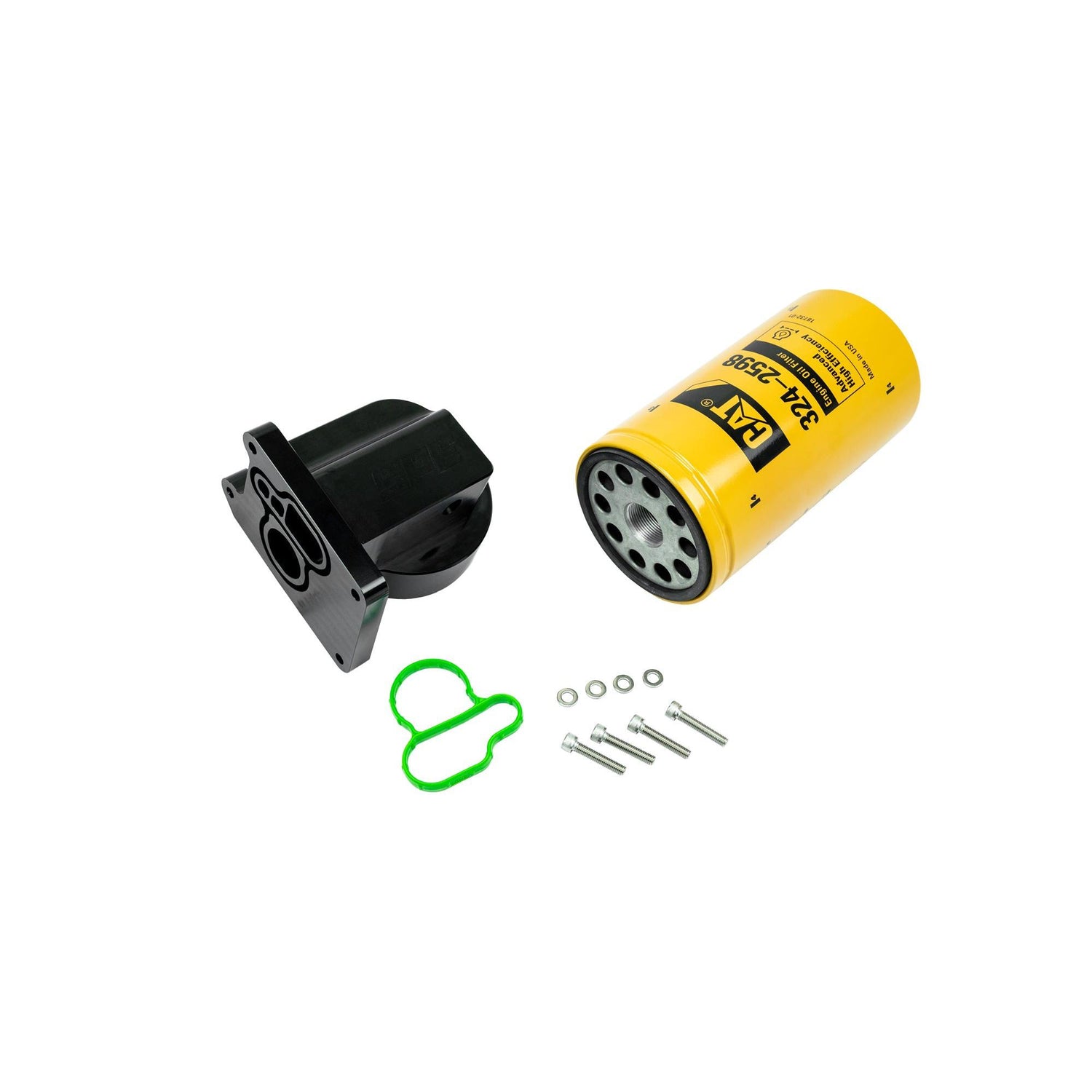

Includes:

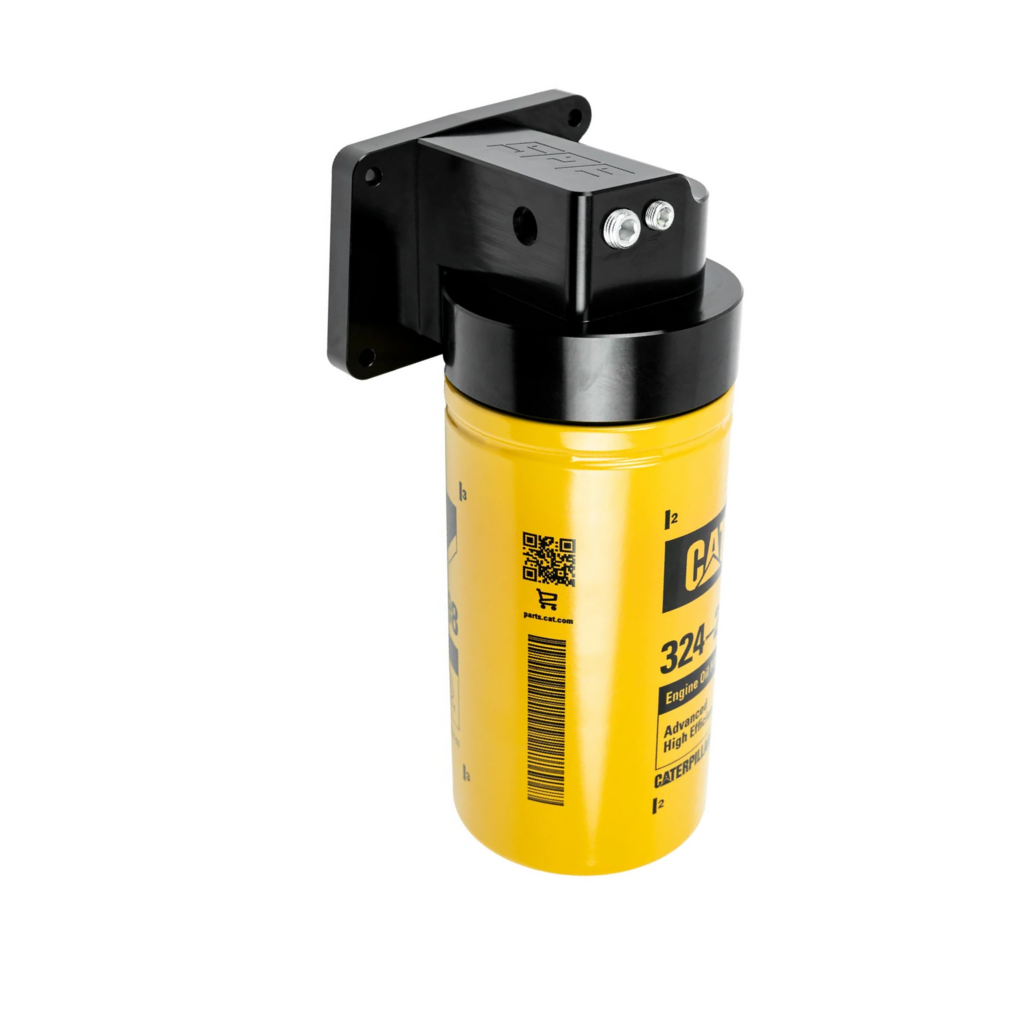

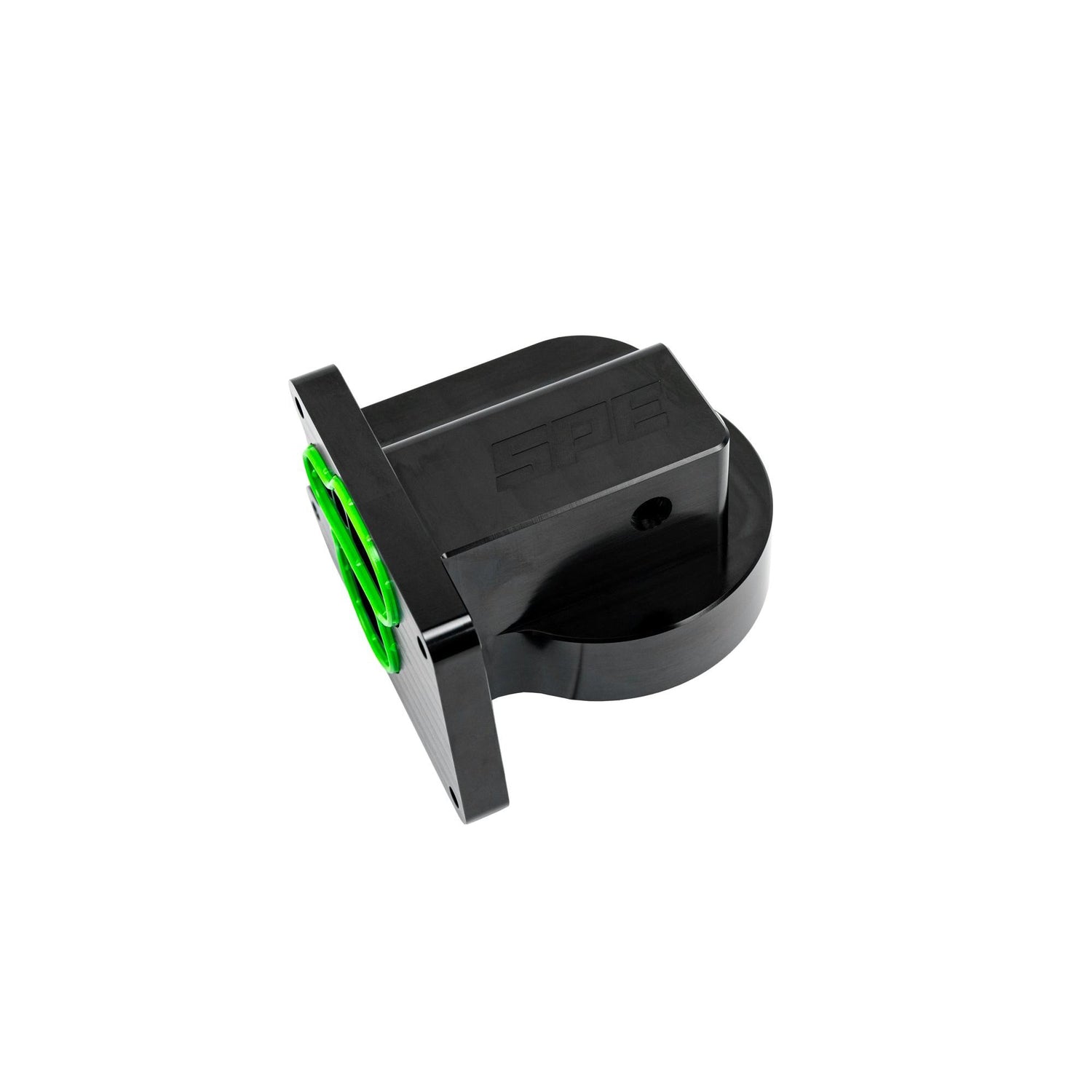

• Billet oil filter housing
• Factory-style SPE green injection molded gasket

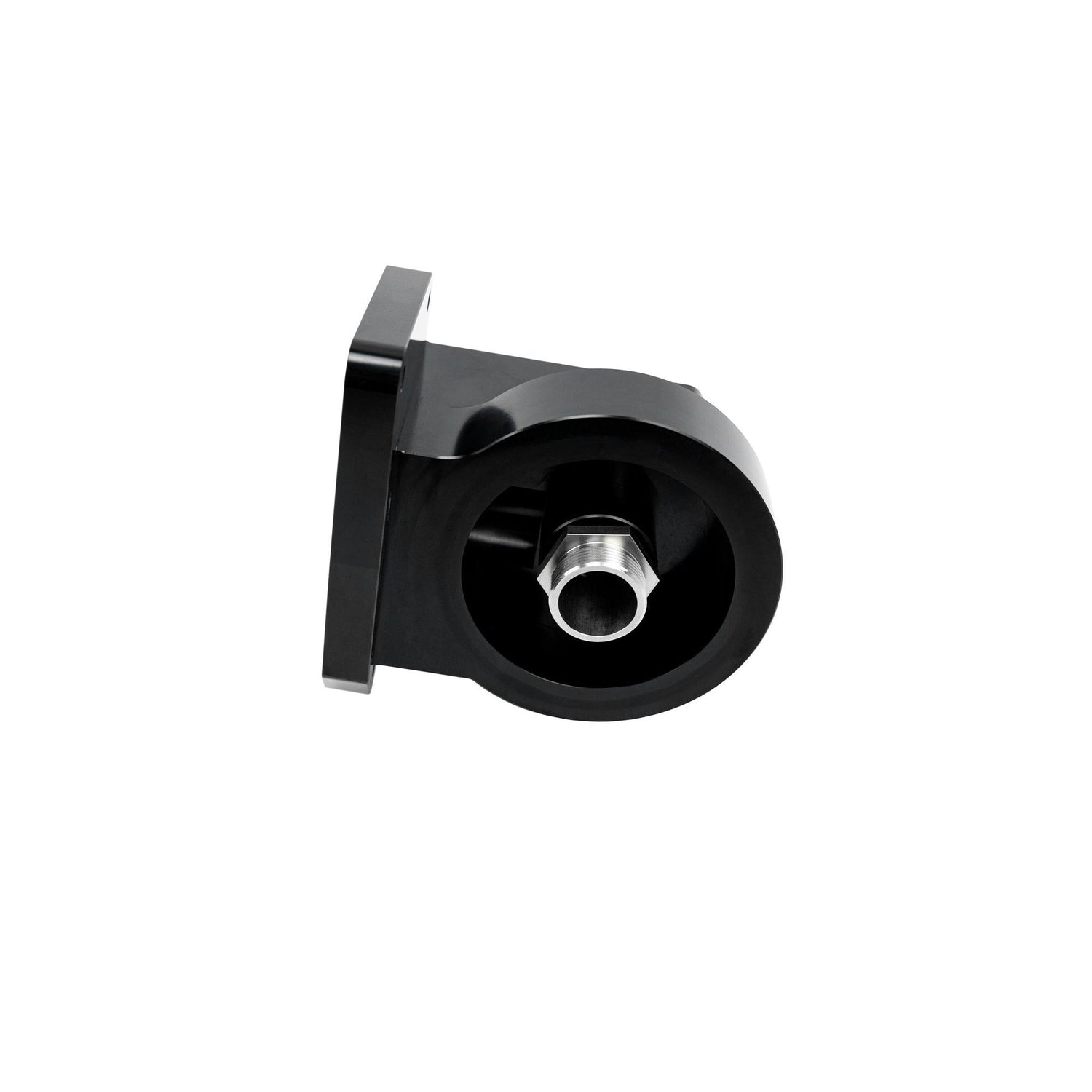

• Billet stainless oil adapter bung

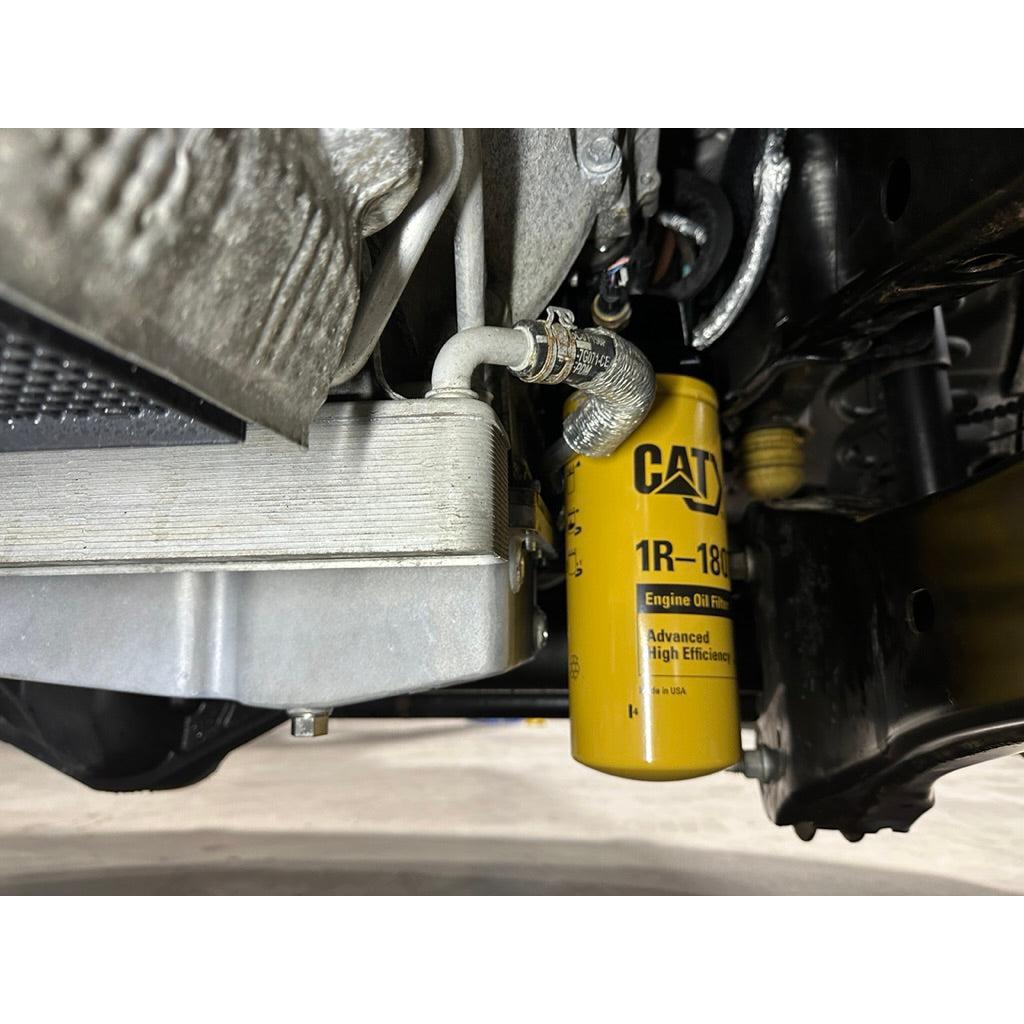

• CAT Filter (1R-1807 OR 324-2598- based on customer selection)
• ¼” NPT plug
• ⅛” NPT plug
• Installation hardware

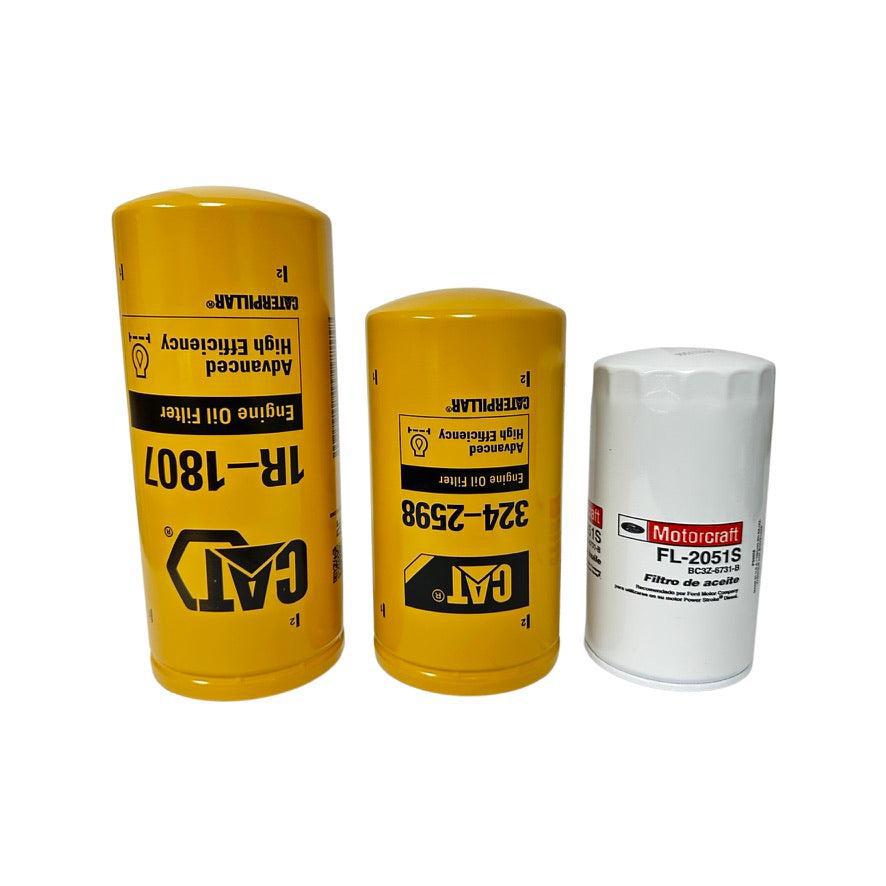

WHICH FILTER DO I CHOOSE?
The CAT 1R-1807 is the ideal option for longer oil change intervals due to the customer using better oils etc.  The advantage to the CAT 324-2598 is the shorter length for off-road or lowered applications. Even though it's the shorter of the two it is still much larger than the FoMoCo factory FL2051s in terms of capacity.  Running either CAT filter option is a huge upgrade from the factory one.

• Most NEW engines will require this filter housing

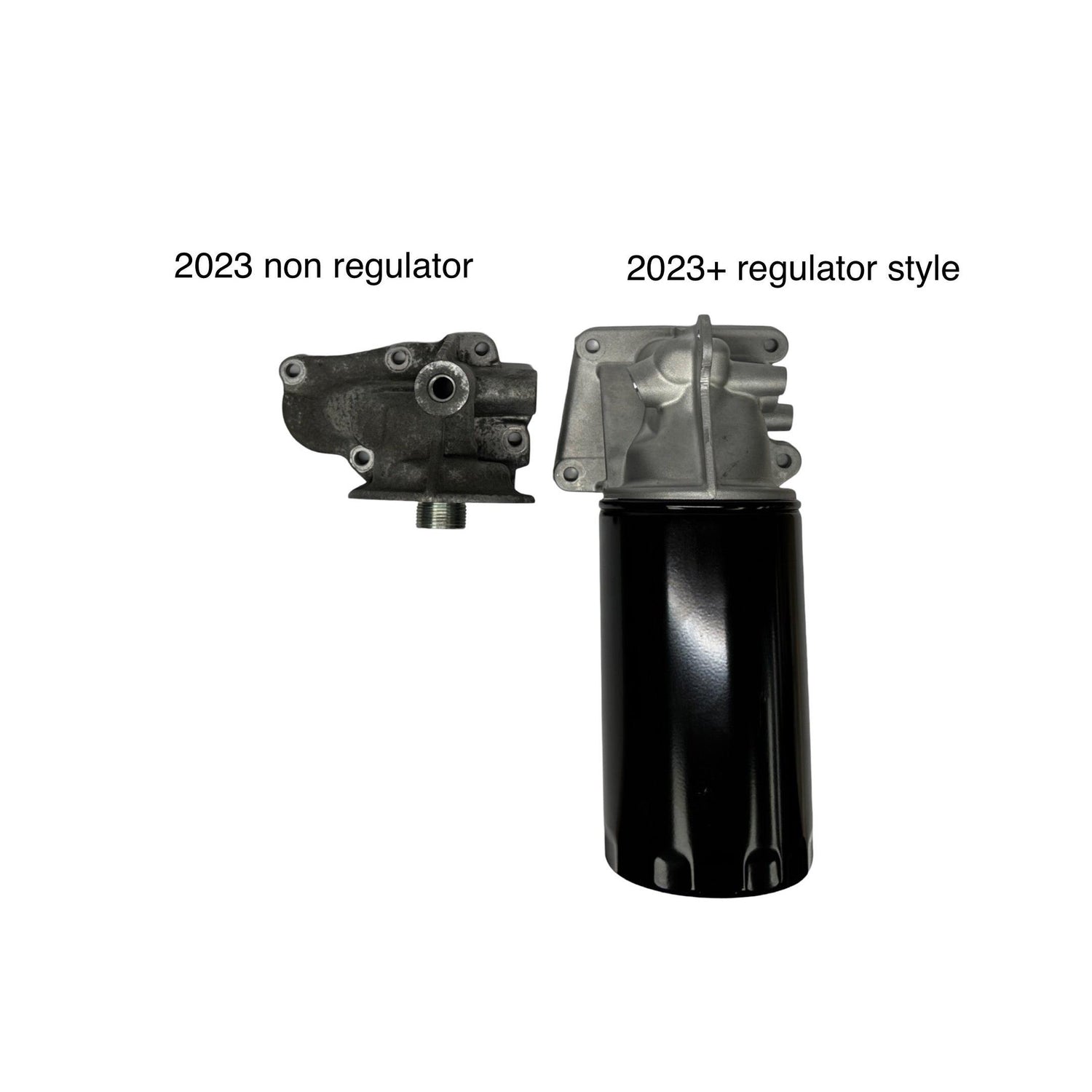

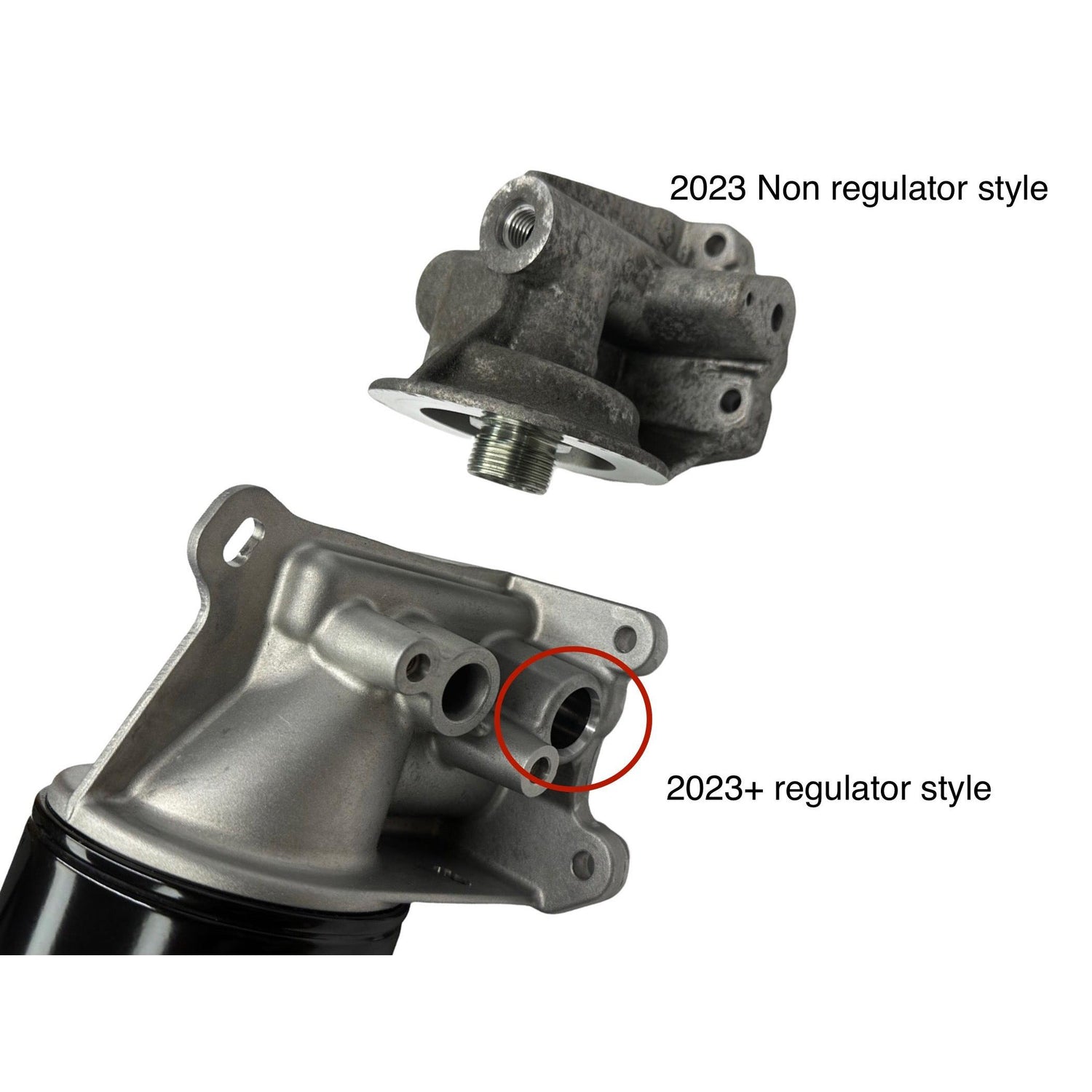

• Some 2023-2024 trucks are using the 2020-2022 style oil filter housing so we recommend checking the housing & gasket shape prior to purchasing to ensure you have the correct parts.
