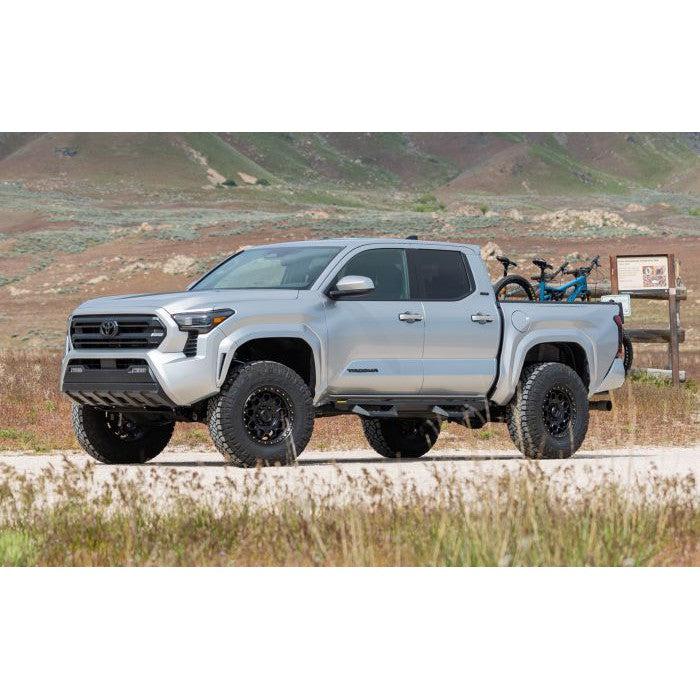

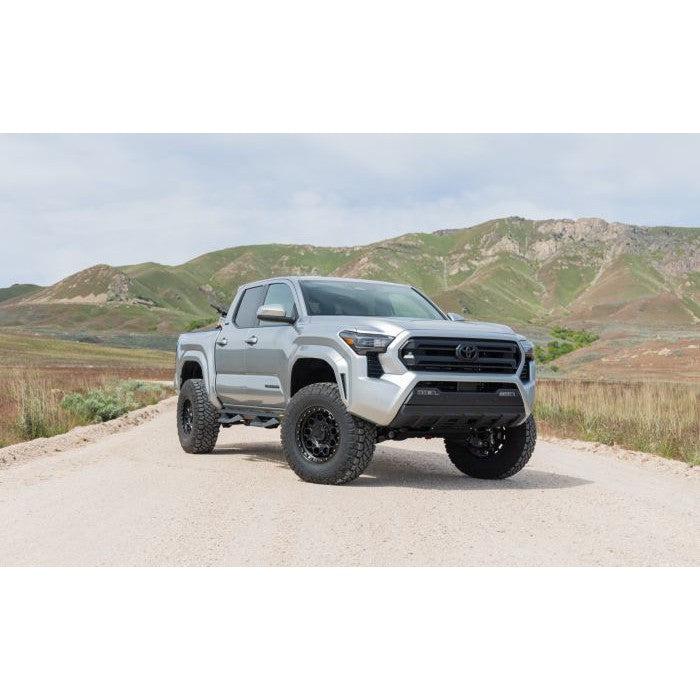

2024 Tacoma 3" SST Lift Kit W/ Falcon 1.1 Monotube Rear Shocks (69-54320)

Fits

Part Number: 69-54320

• Bolt-on installation – no modifications required.
• 3” front lift with a 2” rear coil spring spacers.
• Rear Falcon 1.1 Monotube Shocks.
• Allows for up to 285/75R17 on an 8" wide and +35 offset.
• Allows for up to 295/55R20 on an 8.5" wide and +35 offset.
• Allows for 315/70R17 with minor trimming.
•  Allows for 35x12.50 R17 with minor trimming.
• Includes strong tubular steel Upper Control Arms with market best heavy-duty high-angle proprietary ball joint.
• No cutting of OEM parts or welding.
• Maintains factory ride.

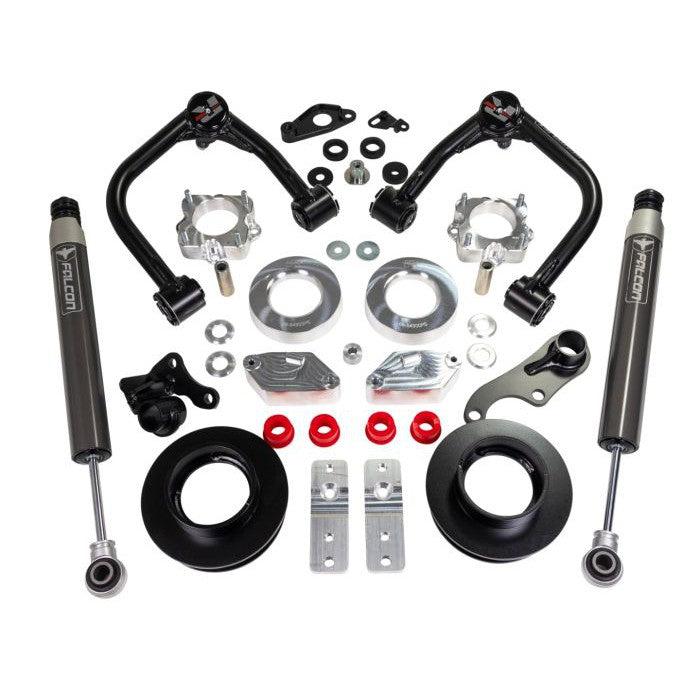

Includes:

• HARDENED STEEL WASHER QTY 2
• 24 TACOMA DIFF REAR SPACER QTY 1
• 24 TACOMA DIFF FRONT SPACER QTY 4
• 24 TACOMA 3/8" LASER CUT WASHER QTY 1
• 24 TACOMA REAR BRAKE LINE BRACKET QTY 1
• 24 TACOMA DDC 1/8" LASER CUT WASHER QTY 1
• 24 TACOMA FRT DIFF DROP, CTR SLEEVE QTY 1
• 24 TACOMA FRT DIFF DROP, CTR BUSH QTY 2
• 24 TACOMA FRT DIFF DROP, CENTER QTY 1
• 0.87" OD X 0.56 ID X 2.65"L CRUSH SLEEVE QTY 2
• 1.52" OD X 0.85"ID POLYURETHANE BUSHING QTY 4
• 24 TACOMA FRT DIFF DROP, RH QTY 1
• 24 TACOMA FRT DIFF DROP, LH QTY 1
• 24 TACOMA RR BUMP STOP EXT, LH QTY 1
• 24 TACOMA RR BUMP STOP EXT, RH QTY 1
• 24 TACOMA RR SWAYBAR BRACKET QTY 2
• 24 TACOMA FR PRELOAD SPCR QTY 2
• 24 TACOMA RR SHOCK EXT CRUSH SLV QTY 2
• 23 TACOMA FRT UCA ASSY, LH QTY 1
• 24 TACOMA FRT UCA ASSY, RH QTY 1
• 24 TACOMA RR SHOCK EXT, RH QTY 1
• 24 TACOMA RR SHOCK EXT, LH QTY 1
• 24 TACOMA RR SPRG SPCR 2IN QTY 2
• 24 TACOMA FRT STRUT SPACER QTY 2
• HARDWARE PACK FOR 69-54300 QTY 1

• Estimated Install Time: 4 Hours +/- .5 Hours  (excluding alignment and wheel/tire assembly)
• Click Here

Wheel Tire

• Stock (17x7 +60)  285/70R17  No Trim (Widest tire you can put on, Knuckle clearance)
• 17x8 +35  285/70R17  No Trim
• 17x8 +35  285/75R17  No Trim
• 17x8.5 +47  285/70R17  No Trim
• 17x8.5 +47  285/75R17  No Trim
• 17x8.5 +25  285/70R17  No Trim
• 17x9 +1  285/70R17  May require trimming. (4mm clearance)

Tire Size Comparison

• 18x8 +35  285/65R18  No Trim
• 18x8 +35  285/70R18  No Trim
• 18x8.5 +47  285/65R18  No Trim
• 18x8.5 +47  285/70R18  No Trim
• 18x8.5 +25  285/65R18  No Trim
• 18x9 +1 285/65R18  May require trimming. (4mm clearance)

• 20x8.5 +35  295/55R20  No Trim
• 20x9 +18  295/55R20  No Trim
• 20x9 +1   295/55R20  May require trimming. (4mm clearance)

Notes:

Installation Alignment Note:  Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.

Installation Headlamp Aim Note:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.

 Installation Advanced Driver Assistance Systems (ADAS) Note:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

• Kit does not fit Tacoma’s equipped with rear leaf springs, TRD PRO, and Trail Hunter. ReadyLIFT has not tested or confirmed fitment on the optional sway bar disconnect.
