2024 Tacoma 3" SST2.1 Suspension System W/ Falcon 2.1 Struts/Shocks (62-54340)

Fits

Introducing ReadyLIFT's latest product - the 3" SST2.1 Suspension System for the 2024 Toyota Tacoma! This lift kit offers a perfect balance of lifted style and factory ride and handling. Includes new upper control arms and an innovative Falcon 2.1 strut and shock system, opens the wheel wells up to increased wheel and tire sizes with the 3” front and a 1” rear lift over the stock ride height. Its upgraded DOM tube steel upper control arms have corrected ball joint angles for maximum strength and flexibility. Pair with a 285/75R17 on an 8" wide and +35 offset wheel for the ultimate lifted look.

The new 62-54340 was designed for the 2024 Toyota Tacoma trucks outfitted with factory rear coil springs. Lots of the premium features that come with the classic Tacoma kit have hopped over to the innovative 62-54340 lift kit. For those looking to roll with bigger wheels, the Toyota Tacoma 3" SST lift kit is a primo pick.

Part Number: 62-54340

•  3” front lift with a 2” rear coil springs.
•  Allows for up to 285/75R17 on an 8" wide and +35 offset.
• Allows for up to 295/55R20 on an 8.5" wide and +35 offset.
• Allows for 315/70R17 with minor trimming.
• Allows for 35x12.50 R17 with minor trimming.
• Skid plate upfront and rear springs
• Includes strong tubular steel Upper Control Arms with market best heavy-duty high-angle proprietary ball joint.
• Unmatched curb-appeal and rugged mid-size truck capability delivered in an affordable yet innovative Smart Suspension Technology “no-cut” lift kit.
• “High-Value Performance” is the driving force behind our new vehicle-specific Falcon shocks.
• Falcon shock absorber systems are tuned for comfort with predictive handling, control, and stability on road and through the canyons as well as controlled steering during off-road driving on washboard roads, through whoops, and over rocks.
• Rear adjustable 3-position Falcon 2.1 shocks tune for daily, sport, or work duties.
• Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners.
• Improved dynamic roll control and low-speed damping.
• Dramatic improvement in on-road comfort and off-road performance.
• Optimized fitment for unobstructed suspension travel and articulation.
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components.
• Smooth-honed internal shock body surface for long-term performance.
• 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling.
• Large shaft diameter provides a wide range of adjustments on adjustable shocks.
• Hard anodized 6061-T6 aluminum alloy billet piston.
• 1-piece Teflon bronze piston wear band w/ O-ring.

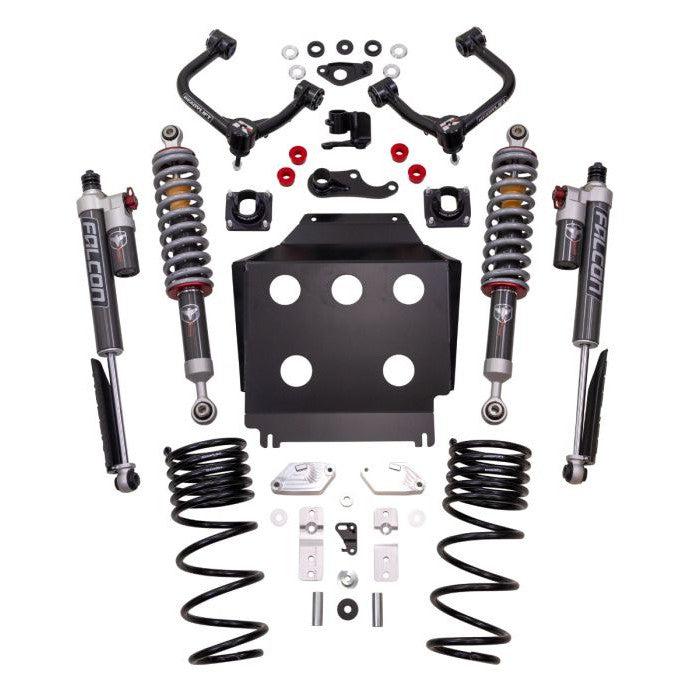

Includes:

• 24 TACOMA RR SWAYBAR BRACKET
• 24+ TACOMA RR SPRG
• 24+ TACOMA SKD PLT
• 24 TACOMA DIFF REAR SPACER
• 24 TACOMA DIFF FRONT SPACER
• 24 TACOMA 3/8" LASER CUT WASHER
• 24 TACOMA REAR BRAKE LINE BRACKET
• 24 TACOMA DDC 1/8" LASER CUT WASHER
• 24 TACOMA FRT DIFF DROP, CTR SLEEVE
• 24 TACOMA FRT DIFF DROP, CTR BUSH
• 24 TACOMA FRT DIFF DROP, CENTER
• 0.87" OD X 0.56 ID X 2.65"L CRUSH SLEEVE
• 1.52" OD X 0.85"ID POLYURETHANE BUSHING
• 24 TACOMA FRT DIFF DROP, RH
• 24 TACOMA FRT DIFF DROP, LH
• 24 TACOMA RR BUMP STOP EXT, LH
• 24 TACOMA RR BUMP STOP EXT, RH
• 23 TACOMA FRT UCA ASSY, LH
• 24 TACOMA FRT UCA ASSY, RH
• 24+ TACOMA FRT CO, SRS 2 TYP 1
• 24+ TACOMA RR LT DMPER, SRS 3 TYP 2
• 24+ TACOMA RR RT DMPER, SRS 3 TYP 2
• HARDENED STEEL WASHER
• HARDWARE PACK

• Estimated Install Time: 6 Hours +/- 1 Hours  (excluding alignment and wheel/tire assembly)
• Click Here

Notes:

Installation Alignment Note:  Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.

Installation Headlamp Aim Note:  In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation.  You may incur additional costs to adjust the headlamp system.

 Installation Advanced Driver Assistance Systems (ADAS) Note:  If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation.   In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.  You may incur additional costs to adjust ADAS systems.

SAEJ2492 WARNING: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

Wheel Tire:

• Stock (17x7 +60)  285/70R17  No Trim (Widest tire you can put on, Knuckle clearance)
• 17x8 +35  285/70R17  No Trim
• 17x8 +35  285/75R17  No Trim
• 17x8.5 +47  285/70R17  No Trim
• 17x8.5 +47  285/75R17  No Trim
• 17x8.5 +25  285/70R17  No Trim
• 17x9 +1  285/70R17  May require trimming. (4mm clearance)

Tire Size Comparison:

• 18x8 +35  285/65R18  No Trim
• 18x8 +35  285/70R18  No Trim
• 18x8.5 +47  285/65R18  No Trim
• 18x8.5 +47  285/70R18  No Trim
• 18x8.5 +25  285/65R18  No Trim
• 18x9 +1 285/65R18  May require trimming. (4mm clearance)

• 20x8.5 +35  295/55R20  No Trim
• 20x9 +18  295/55R20  No Trim
• 20x9 +1   295/55R20  May require trimming. (4mm clearance)

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.
