Universal HP625 Series HD 24V Vertical Air Compressor Kit w/ Basic Unloader Block (HP10633)

Fits: Universal

The Pacbrake HP625 Series 24 Volt Heavy Duty Air Compressor Kit is intended for filling air tanks for both the on and off-road markets. This compressor will provide quick and effortless inflation power thanks to its 3/4HP air compressor that has a 100% duty cycle (1 hour @ 100psi). All AMP compressors have a max working pressure of 150psi, feature an oil-less design, and are mountable in any orientation. So whether you are wanting to fill your air suspension, supply air to your train horns, fill flat tires, or power small air tools, the HP625 Series Air Compressor will get the job done!

Part Number: HP10633

• Provides quick and effortless inflation
• Copper wire wound permanent magnet motor
• Oil-less design
• Sealed bearings
• PTFE piston ring
• Cast aluminum cylinder head
• Hard anodized aluminum cylinder and aluminum sleeve.
• Mountable in any location

Compressor Specifications:

• 24V DC
• 100 percent duty cycle at 100 PSI
• 3/4 HP
• Vertical head configuration
• Size is 11.5 inch x 6 inch x 9.5 inch or 293 mm x 153 mm x 242 mm (LxWxH)
• Weight is 17.7 lbs

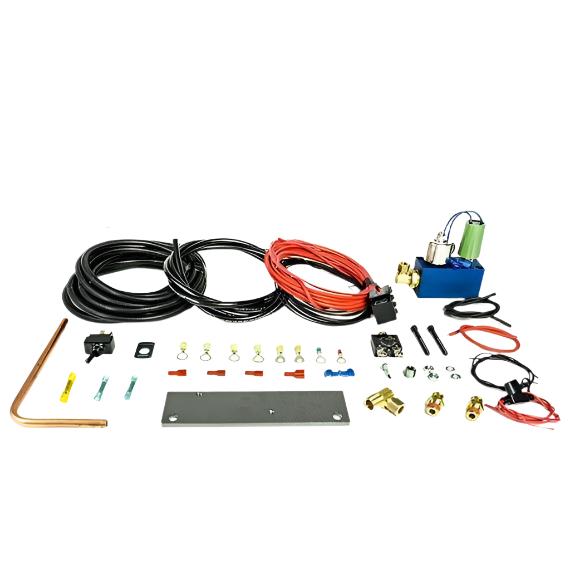

Includes:

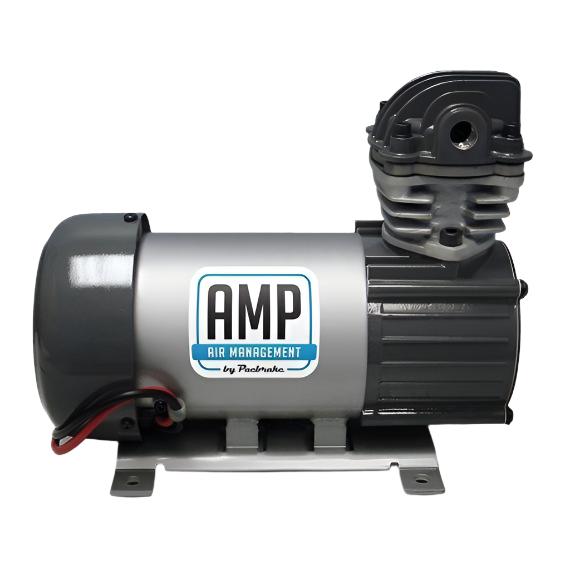

• HP625 Series 24 Volt Compressor With A Vertical Pump Head
• Basic Components Of The Unloader Block Assembly

• This kit does NOT include the pre-built wiring harnesses

• For Installation Instructions, Please Click Here
