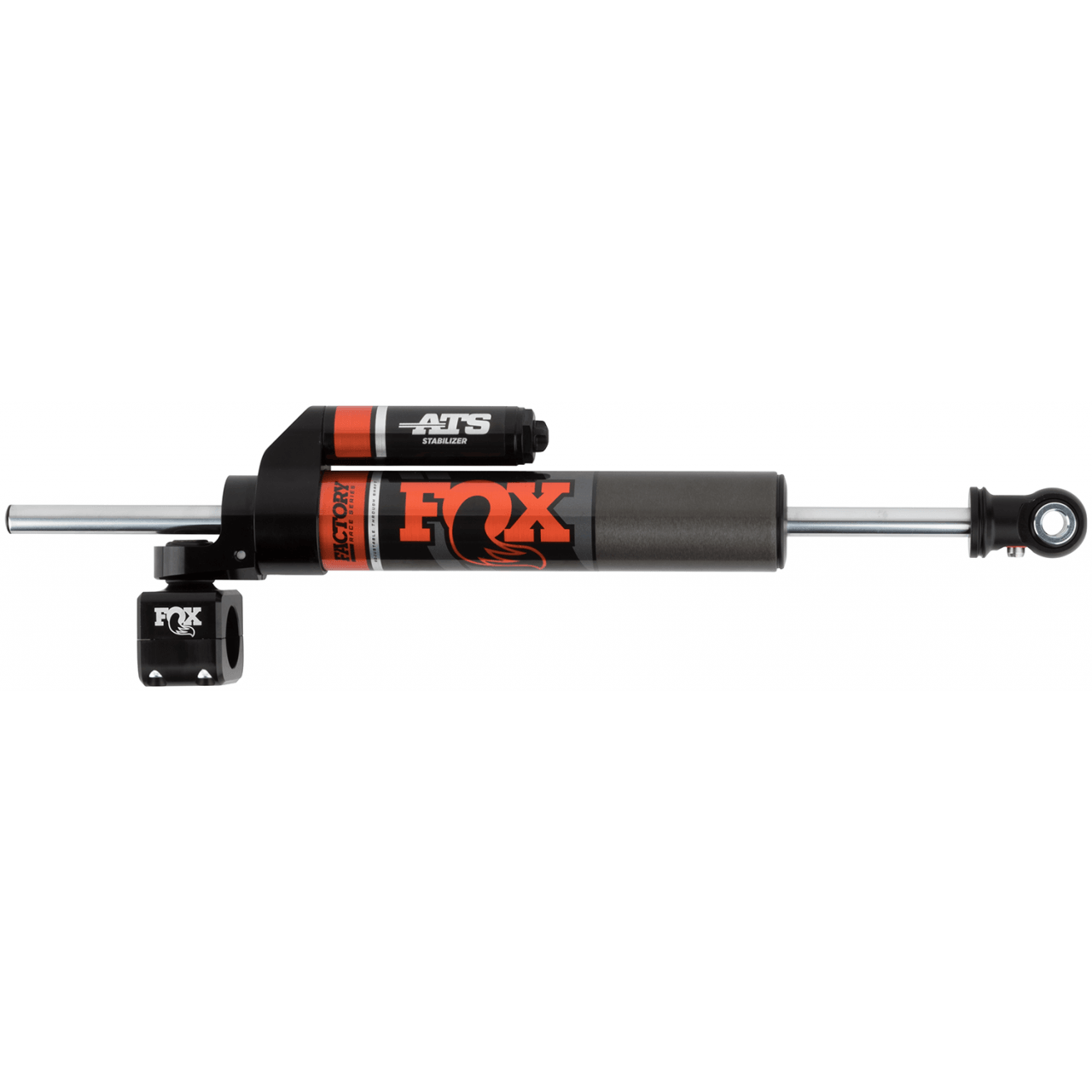

2007-2019 Jeep FOX ATS Steering Stabilizer (983-02-142)

Fits

Experience unmatched steering control and a stylishly high-tech look with the FOX ATS Steering Stabilizer. This innovative stabilizer cancels out unwanted steering forces in both directions, replacing the need for two conventional stabilizers. With 24 external adjustment clicks, you can fine tune the feel to your liking. Its integrated reservoir increases fluid capacity and enhances cooling during intense use. Plus, with FOX's unique relocating hardware, you can easily move the stabilizer out of the way using a new track bar relocation bolt and tie-rod mounting clamp. The ATS sets a new standard for stabilizers - don't miss out on this revolutionary design!

Part Number: 983-02-142

• Body - Aluminum shock body dissipates heat three times faster than steel
• Components - Black anodized 6061-T6 billet aluminum
• Shaft - 5/8" hard chrome plated heat treated alloy steel
• Piston - Race-developed high-flow piston design
• Valving - Proprietary deburred valve shims
• Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
• Oil - Specially formulated for ultimate performance at variable temperatures
• Reservoir - External reservoir design separates shock oil from the high-pressure nitrogen
• Mounting - Applications available for stock and aftermarket lifts kits
• Nitrogen Pressure Adjuster
• 24 Clicks of Adjustability

•  If installing stabilizer on 2012 and newer model with stock suspension or with less than a 2.5'' lift and aftermarket 1-1/4'' bump stop extension, the stabilizer reservoir must be rotated for clearance. Loosen pinch bolt on L-bracket between stabilizer and track bar clamp, rotate reservoir approximately 135 degrees down and toward rear of vehicle.
• For Use with Synergy 8525-01

• Click Here

1994-2013 Ram Synergy Tie Rod: When running a dual stabilizer configuration you can use any Fox ATS stabilizers with (2) Synergy ATS clamp Adapters 4051-01.
