Universal HP325 Series 2½ Gallon Onboard Air Kit (HP10164)

Fits: Universal

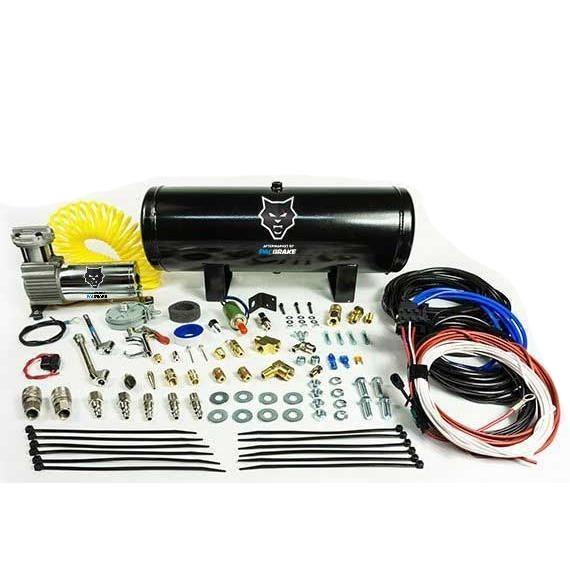

The Pacbrake HP10164 HP325 Series Onboard Air Kit is perfect for utilizing accessories such as air horns, air lockers, blow air for cleaning, filling up to 33" tires, and more! This kit consists of an air compressor, 2½ gallon air tank, fittings, pressure switch, relay(s), electrical connectors, curly hose, accessory kit in a heavy-duty bag, and all the required accessories.

Part Number: HP10164

• 33% Duty Cycle (20 minutes @ 100 PSI)
• 150 PSI Max Working Pressure
• 1.2 SCFM
• 158°F Max / -40°F Ambient Temperature Range
• Size: 8.7″ x 4″ x 6.2″ (LxWxH)
• Weight: 5.5 lbs
• Mountable in any orientation

Air Tank Specifications:

• (HP10013)-2 ½ gallon capacity
• 5x -3/8' NPT ports
• Rust inhibitor applied to the inside of the tank
• Max working pressure 150 PSI
• Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH)
• Weight is 9.8 lbs
• Welded on mounting brackets.

Includes:

• HP325 Series 12V DC compressor (Part Number HP10143)
• 2½ Gallon air tank (Part Number HP10013)
• Fittings
• Pressure switch
• Relay(s)
• Electrical connectors and all applicable accessories
• Curly hose
• Air accessory kit housed in a heavy-duty zipped canvas bag for easy on-the-go storage

• For installation instructions, Please Click Here
