1998.5-2002 Cummins 3.5" Mega Intake System & Cross-Air Kit (PDC9802MCA)

Fits

Most Pusher Products will be a special order and can take up to 1-2 weeks for delivery. If you need it sooner, contact us for our stock levels!

The Cross-Air system adapts to an existing port at the rear of the intake plenum that is normally sealed off from the factory with a freeze-plug style fitting. To better supply air to cylinders 5 and 6, it splits off the driver-side charge tube and creates another parallel path. In turn, this will greatly help balance the engine temperatures and load at each cylinder. In order to produce optimal penetration without impacting airflow, Pusher fully Tig welded this whole set-up with precise settings. So why the extra .5"? The circumference of the 3.5" tubing is nearly the exact same size as the perimeter of the square-shaped inlet of the factory 5.9L Cummins Plenum plate. So by increasing the circumference to 3.5".

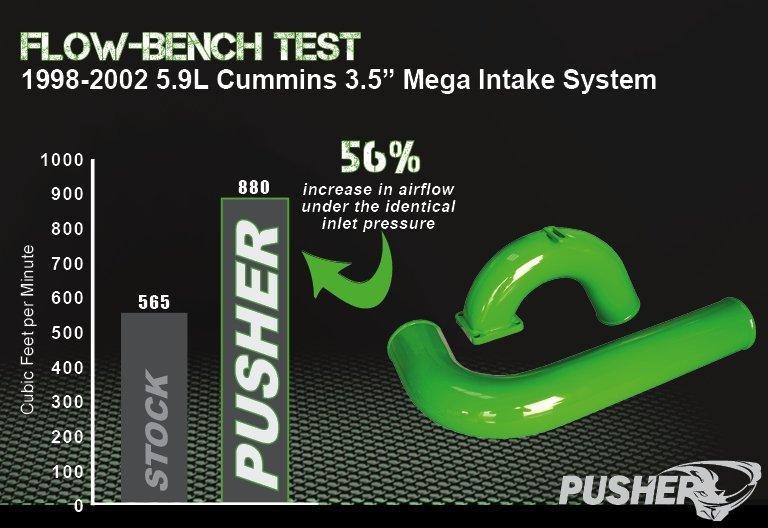

This system provides the most airflow possible to the factory Cummins's head. For durability, Pusher has constructed this system from 3.5" mandrel-bent tubing, a 1/2" thick flange, and 1/4" thick dipstick mounting bracket. The results you can expect to see from this fine craftsmanship is a decrease in EGT's, Increased MPG, faster turbo spool, increased durability, and increased throttle response!

Part Number: PDC9802MCA

• Replaces the restrictive OEM intake manifold and post-intercooler plumbing with 3.5" mandrel-bent tubing to Maximize Airflow
•  3" post-intercooler plumbing
• Adapts to existing port that is normally sealed off from the factory
• Better supplies air to cylinders 5 & 6
• Fully TIG welded to ensure optimal penetration without impacting airflow
• Increased Durability
• Lowers EGT's
• Increased Fuel Economy
• Faster Turbo Spool
• Increased Throttle Response

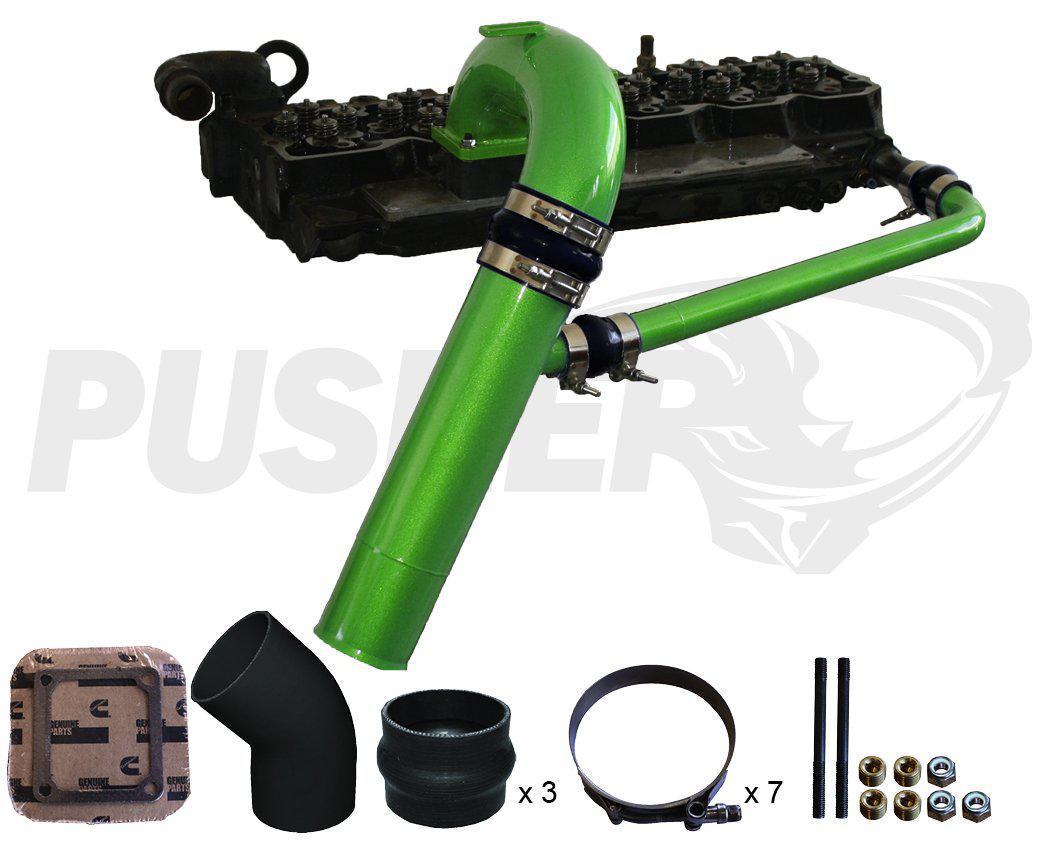

Includes:

• Fully TIG welded & mandrel-bent Intake & Cross Air System

• Laser-cut 1/2" flange

• 1/4" dipstick mount
• Four 1/8" NPT Ports for Methanol/water injection, boost gauge, and more.
• Four 1/8" port plugs
• Machined cylinder head adapters
• Heavy-duty 4-ply silicone couplers
• Stainless T-bolt clamps
• OEM gasket
• All required hardware

• For an additional charge, select powder coating colours are available on this kit.
