2001-2007 Duramax Transfer Case Pump Upgrade & Repair Kit - Seal Driver XHD (10773)

Fits

Upgrade your 2001-2007 GM transfer case with this Transfer Case Pump Upgrade. Completely prevent pump rub and dreaded fluid loss. Install the basic kit as a preventative measure or during repair to avoid future failures. Don't let pump rub ruin your ride!

This kit is designed to include the parts necessary to perform an upgrade and repair to a transfer case that has suffered a pump rub failure requiring replacement of the rear case half for vehicles using the NP261XHD and NP263XHD transfer cases with Duramax diesel LB7, LLY, and LBZ engines as well as 8.1L gas engines when equipped with the Allison transmission. When properly installed this kit is backed by a Limited Lifetime Warranty against pump rub failure from Merchant Automotive.

Part Number: 10773

• All-Inclusive Upgrade Kit
• Prevents Future Failures

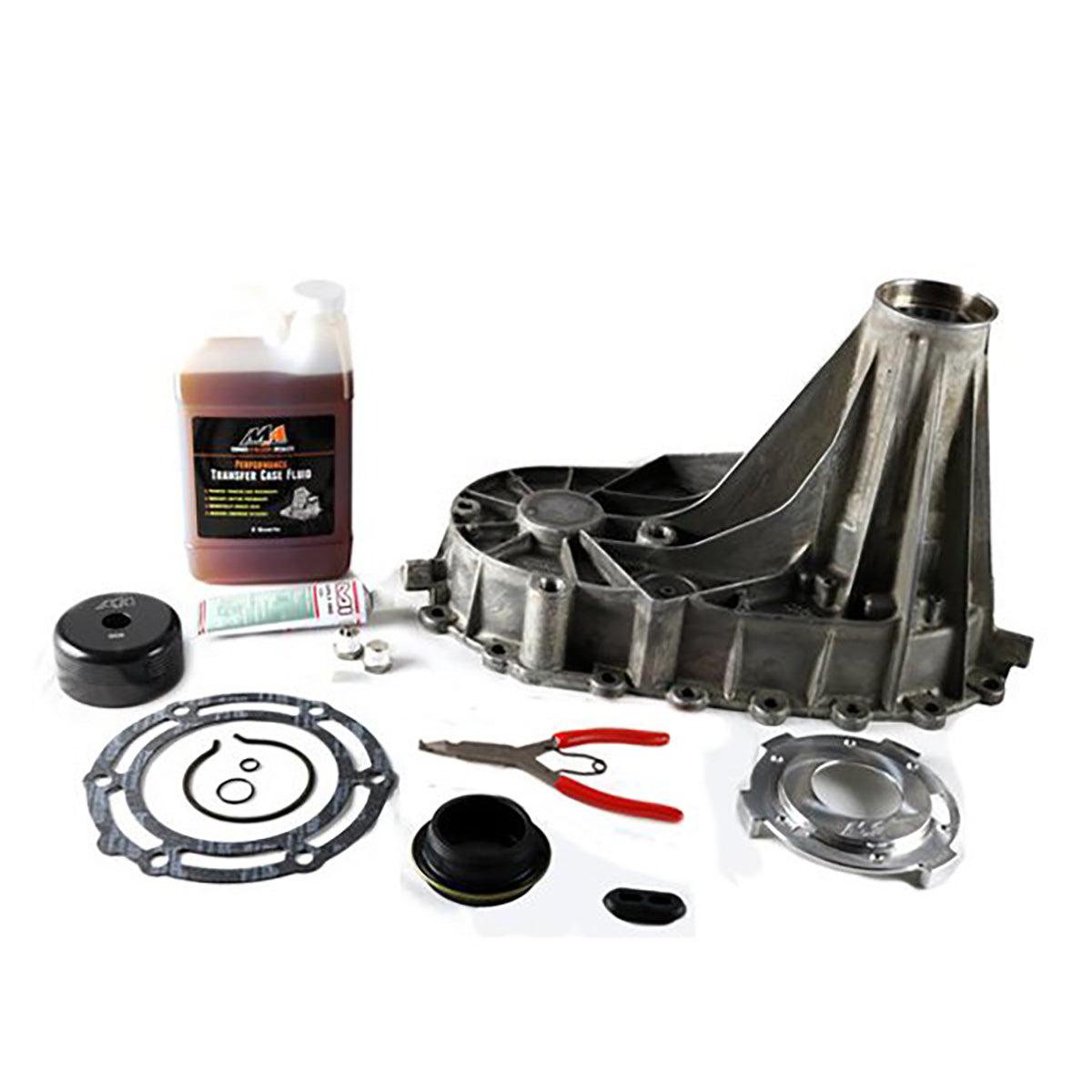

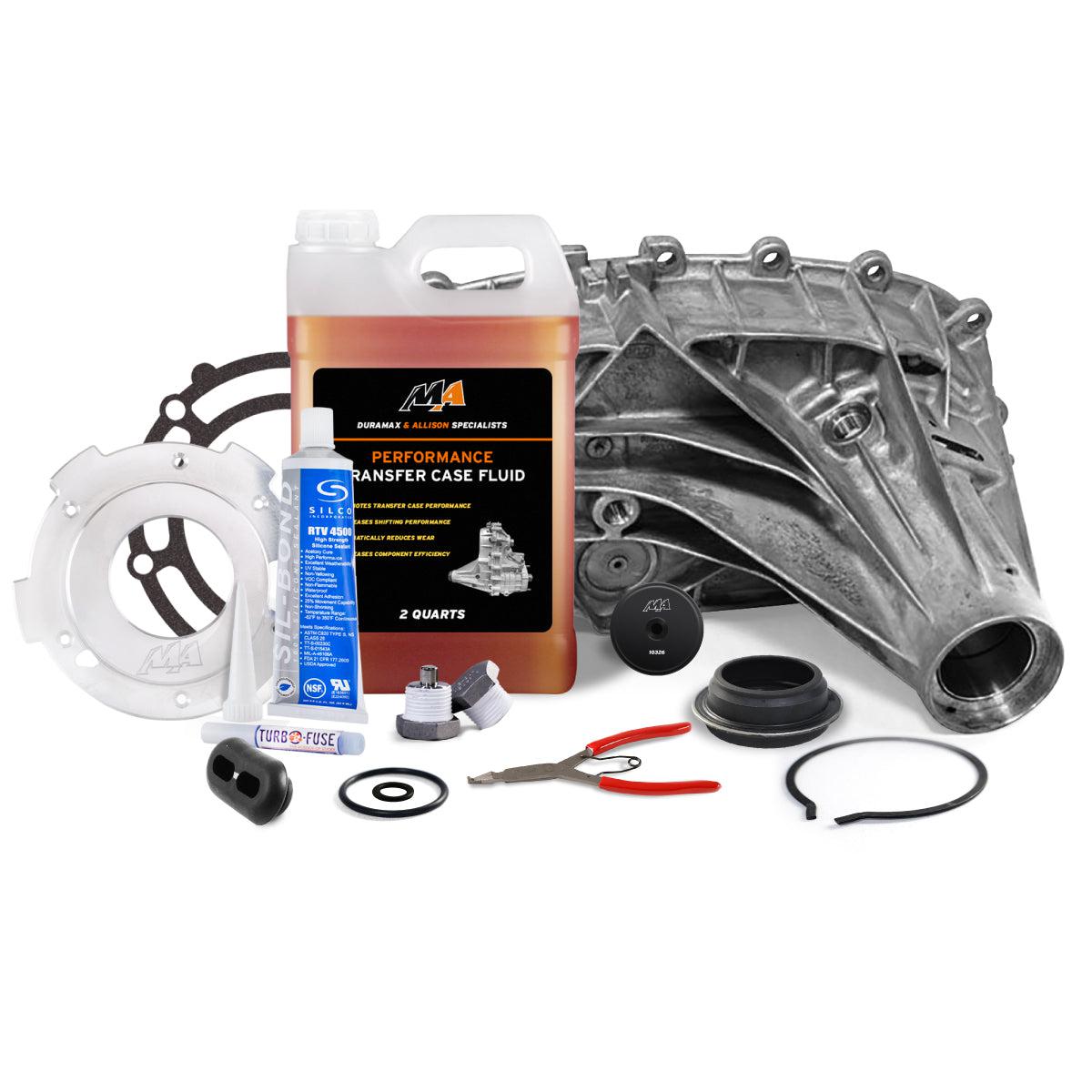

Includes:

• MA Billet T-6061 Aluminum CNC-Machined Transfer Case Pump Housing
• MA Performance Transfer Case Fluid
• MA Magnetic Drain Plug Kit
• Transfer Case Adapter Gasket
• RTV Silicone with applicator nozzle
• Blue Threadlock
• OEM Magnesium Rear Transfer Case Housing
• Rear Output Seal
• Pickup Tube Seal
• Speed Sensor Seal
• Snap Ring for the Output Shaft Bearing
• Snap Ring Grommet
• Snap Ring Pliers
• Rear Output Seal Driver

• Click Here

• Note that transfer cases operated without lubrication may also have additional internal damage that will not be evident from external inspection and could require additional parts.

Parts Only

• Limited Lifetime Warranty

What do I do with the OEM anti rattle clip when installing this upgrade?

Discard the factory clip during installation of the MA Transfer Case Pump Upgrade kit. It's been designed and precision machined to work with the clip removed.

What other parts will I need to install this upgrade and repair kit?

MA tried to make the kit all-inclusive for an upgrade and repair installation after pump rub failure has occurred without including internal parts (like bearings, shafts, planetary gears, etc...) that may not necessarily be required. Unfortunately, there is no real way to know the extent of the damage inside the case until it is completely disassembled. In many instances, as long as the case has not run out of fluid, it can be repaired with the new rear housing and components included in this kit to prevent pump rub from ever happening again. Be sure to refill the transfer case with the MA Performance Transfer Case Fluid included in this kit for excellent lubrication and performance and replace your original drain and fill plugs with the MA Magnetic Drain Plug kit also included with this kit as an additional layer of protection to catch metal debris from the fluid circulating inside the transfer case as well as replacing the factory plugs which are often rounded off or damaged.

I hear a grinding noise at low speed after installing the kit. What could that be?

A low speed grinding noise is most commonly caused by the rear output bearing snap ring not being fully seated causing the bearing to move out of proper alignment. Verify that the snap ring is fully engaged and properly seated in the rear housing and the locating groove in the bearing.

What would cause a speed sensor correlation code after installing this upgrade?

A speed sensor correlation code is often accompanied by a low speed grinding noise and is frequently caused by the rear output bearing snap ring not being fully seated causing the bearing to move out of proper alignment. Verify that the snap ring it fully engaged and properly seated in the rear housing and the locating groove in the bearing.
