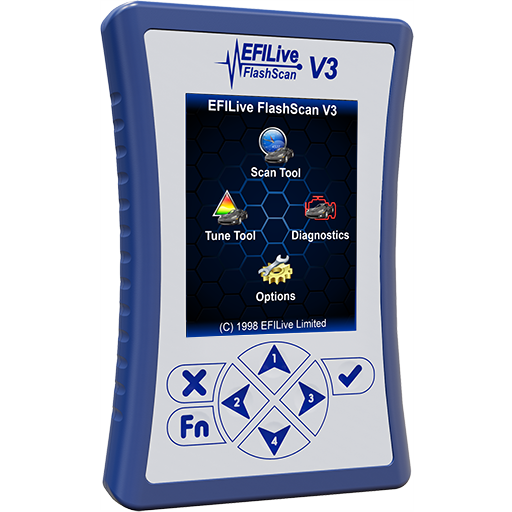

Universal Cummins EFI-Live FlashScan V3

Fits

The EFI-Live FlashScan V3; is a scan tool, data logger & calibration reader for select engine controllers, this Dodge Cummins tuning option will include calibration flashing to suit any Dodge Cummins application. You can use this device in either standalone mode (FlashScan V3 to vehicle connection), or in pass-through mode (PC/laptop to FlashScan V3 to vehicle connection).

You will need:

• PC or laptop capable of running Win7 or higher
• USB port
• Color screen with 1280x960 or greater resolution
• 1GB of available disk space

Part Number: FS3-DC

• Dodge Cummins Tuning - to tune supported Dodge Cummins controllers. Customers who purchase Dodge Cummins Tuning should also consider purchasing the following:

• FlashScan V3 Expansion Cable to connect a remote switch to FlashScan V3 that allows remote activation/deactivation of data logging.

• EFILive FlashScan interface
• OBDII cable (RJ45 to SAE-J1962)
• PC cable (USB A to B)
• Large, easy to read color screen.
• Built-in 512MB micro SD Card.
• Built-in audible alarms.
• Upgradeable bootblock and firmware.
• Vehicle Input Voltage - Min 9V, Max 28V.
• Battery backed real-time clock.
• Appears as a Windows USB drive.
• Built-in power supply prevents data corruption if the external power supply is interrupted.

If you have no tuning options, the following features are available to you

• Quick Setup
• Configure and program all device settings and scan settings in a single process.
• Save Quick Setup configurations for easy reuse.
• Email BBX configurations to support remote customers.
• BBX
• Read FlashScan V3⇄Connected Vehicle between 30 seconds and 7 mins (vehicle dependent).
• Store read & log files to internal SD card.
• Read & clear DTC codes.
• High speed data logging.
• Display data while logging.
• Read calibration and/or operating system data.
• Pass-Thru
• PC⇄FlashScan V3⇄Connected Vehicle read between 30 sec & 7 minutes (vehicle dependent).
• Store read & log files onto PC.
• Read and clear DTC codes.
• High speed data logging.
• Gauges & charts display in real time.
• Read calibration and/or operating system data.
• Tools
• Search files using key vehicle data (VIN, OS, segment).
• Customize software settings – Scan file save templates, displays, units, dashboards.

When you activate tuning the following additional features are available to you

• Security
• Prevent unauthorized reading, editing and flashing of custom tune files.
• Tune files are encrypted with EFILive proprietary routines.
• Use Locking options to prevent tune files from being read from the ECM/TCM.
• Licensing
• Multi-vehicle licensing.
• Each Tuning Option ships with 2 VIN licenses.
• Each VIN license supports one engine controller. Supported transmission controllers do not require a VIN license.
• Additional VIN licenses (up to 600) can be purchased.
• Tools
• Integrate your own tuning parameters.
• Command Line Interface (CLI) and gang programming automate processes and programs up to five devices simultaneously.

• Ships with 1 OBDII cable and 1 USB cable
• Each Tuning Option ships with 2 VIN Licenses to tune 2 supported controllers
