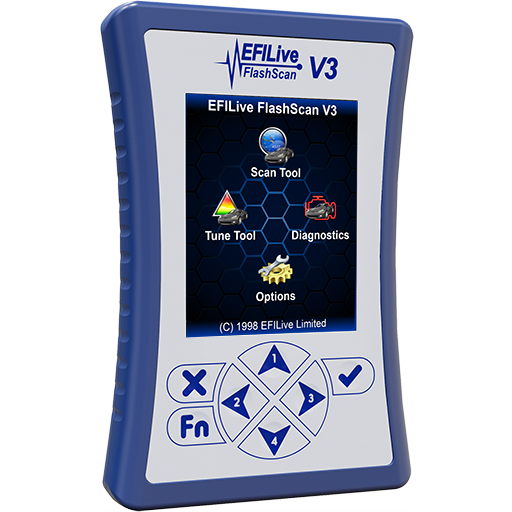

Universal Cummins & Duramax EFI-Live FlashScan V3

Fits

The EFI-Live FlashScan V3; is a scan tool, data logger & calibration reader for select engine controllers, this GMC/Chevrolet & Dodge Cummins tuning option will include calibration flashing to suit any GM & Dodge Cummins application. You can use this device in either standalone mode (FlashScan V3 to vehicle connection), or in pass-through mode (PC/laptop to FlashScan V3 to vehicle connection).

You will need:

• PC or laptop capable of running Win7 or higher
• USB port
• Color screen with 1280x960 or greater resolution
• 1GB of available disk space

Part Number: FS3-GM-DC

• Dodge Cummins Tuning - to tune supported Dodge Cummins controllers. Customers who purchase Dodge Cummins Tuning should also consider purchasing the following:

• FlashScan V3 Expansion Cable to connect a remote switch to FlashScan V3 that allows remote activation/deactivation of data logging.
• GM Tuning - tune supported GM Gas and Diesel controllers. Customers who purchase GM Tuning should also consider purchasing the following:

• FlashScan V3 Serial Cable to integrate with serial wide band O2 devices for GM Gas applications.

• WO2 Serial Adapter (Null Modem) Male required when connecting
• FlashScan's serial cable to supported wide band serial cables.

• FlashScan V3 Expansion Cable to connect a remote switch to FlashScan V3 that allows remote activation/deactivation of data logging

• EFILive FlashScan interface
• OBDII cable (RJ45 to SAE-J1962)
• PC cable (USB A to B)
• Large, easy to read color screen.
• Built-in 512MB micro SD Card.
• Built-in audible alarms.
• Upgradeable bootblock and firmware.
• Vehicle Input Voltage - Min 9V, Max 28V.
• Battery backed real-time clock.
• Appears as a Windows USB drive.
• Built-in power supply prevents data corruption if the external power supply is interrupted.

If you have no tuning options, the following features are available to you

• Quick Setup
• Configure and program all device settings and scan settings in a single process.
• Save Quick Setup configurations for easy reuse.
• Email BBX configurations to support remote customers.
• BBX
• Read FlashScan V3⇄Connected Vehicle between 30 seconds and 7 mins (vehicle dependent).
• Store read & log files to internal SD card.
• Read & clear DTC codes.
• High speed data logging.
• Display data while logging.
• Read calibration and/or operating system data.
• Pass-Thru
• PC⇄FlashScan V3⇄Connected Vehicle read between 30 sec & 7 minutes (vehicle dependent).
• Store read & log files onto PC.
• Read and clear DTC codes.
• High speed data logging.
• Gauges & charts display in real time.
• Read calibration and/or operating system data.
• Tools
• Search files using key vehicle data (VIN, OS, segment).
• Customize software settings – Scan file save templates, displays, units, dashboards.

When you activate tuning the following additional features are available to you

• Security
• Prevent unauthorized reading, editing and flashing of custom tune files.
• Tune files are encrypted with EFILive proprietary routines.
• Use Locking options to prevent tune files from being read from the ECM/TCM.
• Licensing
• Multi-vehicle licensing.
• Each Tuning Option ships with 2 VIN licenses.
• Each VIN license supports one engine controller. Supported transmission controllers do not require a VIN license.
• Additional VIN licenses (up to 600) can be purchased.
• Tools
• Integrate your own tuning parameters.
• Command Line Interface (CLI) and gang programming automate processes and programs up to five devices simultaneously.

• Ships with 1 OBDII cable and 1 USB cable
• Each Tuning Option ships with 2 VIN Licenses to tune 2 supported controllers
