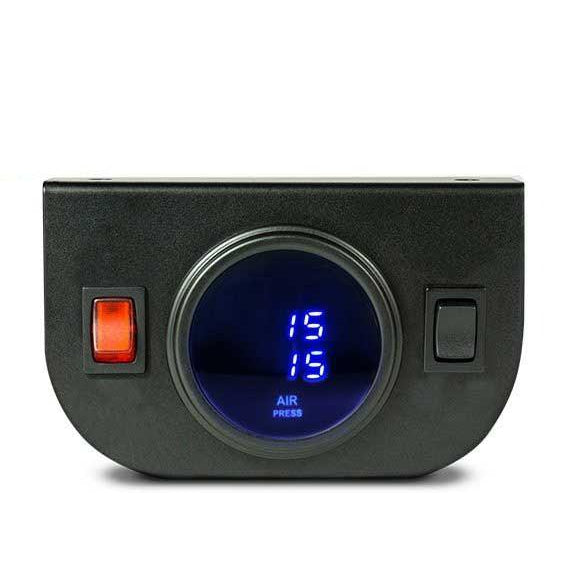

Universal Electrical In-Cab Control Kit W/ Digital Gauge Simultaneous Actuation (HP10274)

Fits: Universal

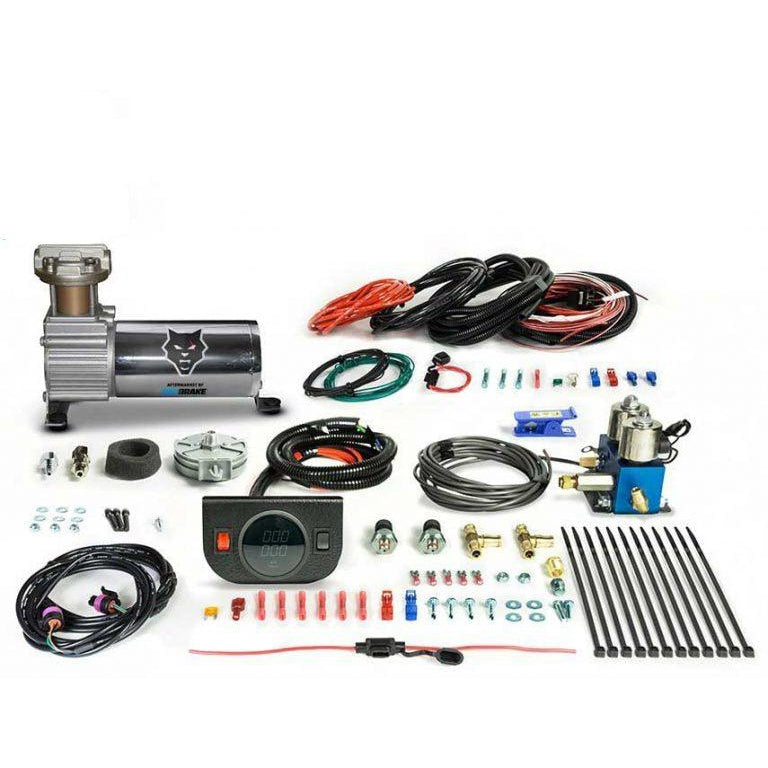

 Take your towing, hauling, 4X4 ing and all other onboard air management to the next level with Pacbrake in-cab controls. In-cab control kits come with everything you need to operate your air springs (or other pneumatic accessories) from the driver’s seat. Various dash activation switch kits featuring the digital gauge are available depending on your air spring operation requirements.

Part Number: HP10274

• ‘Simultaneous’ inflation inflates/deflates both air springs at the same time.
• ‘Independent’ inflation allows inflation/deflation of each air spring individually.

Air Spring Dash Switches (Independent Activation)

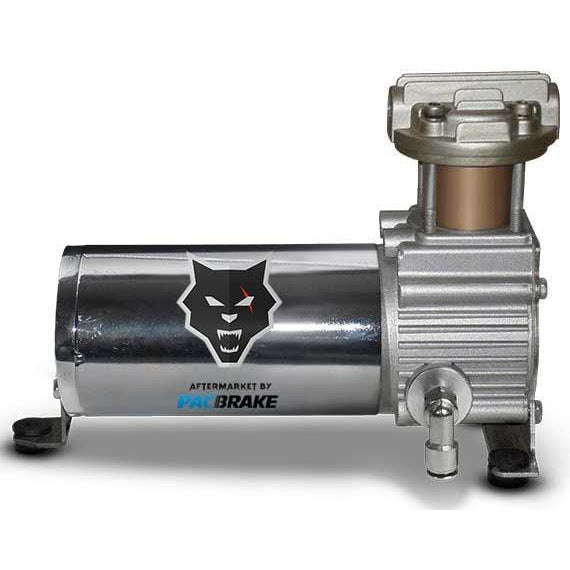

• HP325 Air Compressor Specifications:
• 12 VDC
• 33% duty cycle (20 Minutes @ 100 psi), 1.2 CFM
• 150 psi max operating pressure, draws 18 Pacbrakes

Air tank options:

• ½ gallon air tank (HP10053)
• 2 ½ gallon air tank (HP10050)

• Click Here

• If adding an air tank, a pressure switch is required HP10110 is for 105-135 psi, HP10111 is for 85-105 psi
