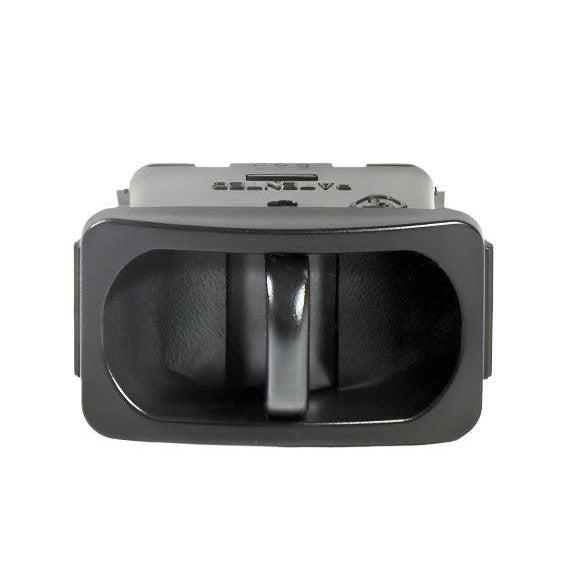

Universal Paddle Valve Switch (HP1204)

Fits: Universal

3-way dead center paddle style actuator

Part Number: HP1204

• 27.5° throw
• Black thermoplastic construction - meets FMVSS 302 flammability requirements
• Supply and delivery ports: barbed fitting - accepts 3/16" ID tube - vented to atmosphere through the rear of the switch
• Fits .89" X 1.61" [22.6 mm X 40.9 mm] openings, R.063" [R1.6 mm] max corner radii, .084" to .125" [2.13 mm to 3.18 mm] panel thickness
• Rated for steady state direct current (DC) of 7.5 A maximum
• Maximum voltage of 15 VDC at zero current
• Maximum 25% duty cycle - maximum "on" time 60 seconds
• Voltage drop across the lead wire terminal will not exceed 0.52 VDC at 7 A direct current
• 24" [609 mm] wire leads
