*Discontinued* Universal Wireless Control Onboard Air Combo Kit (HP10406)

Discontinued

Fits: Universal

Take complete command of your vehicle with the wireless control onboard air combo kit from Pacbrake, featuring Pacbrake's popular wireless control kit and 0.5-gallon onboard air kit into one package!

The Pacbrake Wireless Controls are a universal fit – They fit the frame of any vehicle, work with any air spring on the market or with any existing onboard air system with a MAX of 150psi. They can also be easily installed with common mechanic tools under 1 hour - no lines or wires to the cab and no drilling required

Part Number: HP10406

Wireless Control Specs (HP10325)

• An easy-to-use app that reads real-time pressure feedback within each air spring. The app has 3 built-in memory presets so you can quickly achieve your desired air spring pressure.
• Military-grade solenoids designed to withstand extreme environments
• IP67-rated controller that is waterproof and debris resistant
• Accessible components offer ease of serviceability and replacement of parts
• Pre-assembled plug-and-play harnesses for easy install

Included for install:

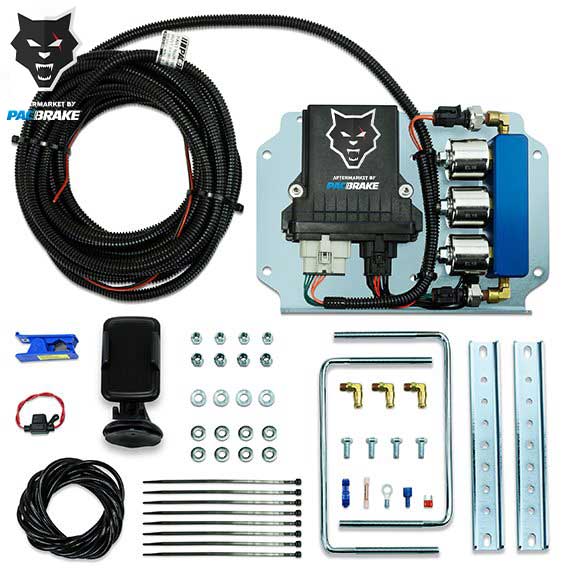

• Pacbrake Wireless Controls air board assembly (controller, solenoid block, pressure sensors and harnesses)
• Phone app (For use with iOS™ and Android™ devices)
• Air lines, pressure connectors & mounting hardware

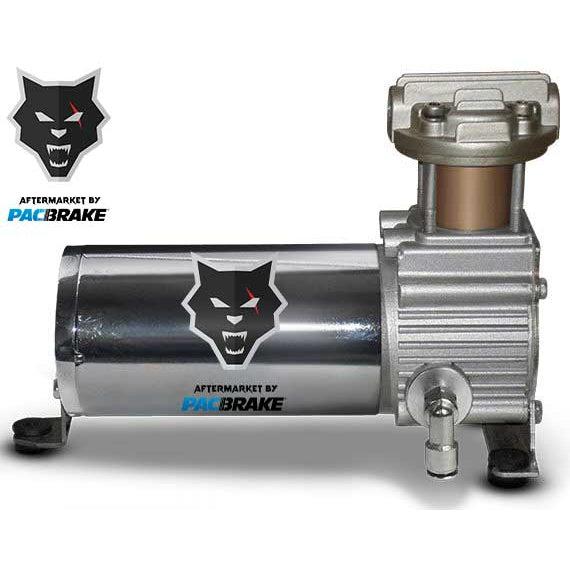

Compressor Specs (HP10143)

• 33% Duty Cycle (20 minutes @ 100 PSI)
• 150 PSI Max Working Pressure
• 1.2 SCFM
• 158°F Max / -40°F Ambient Temperature Range
• Size: 8.7″ x 4″ x 6.2″ (LxWxH)
• Weight: 5.5 lbs
• Mountable in any orientation

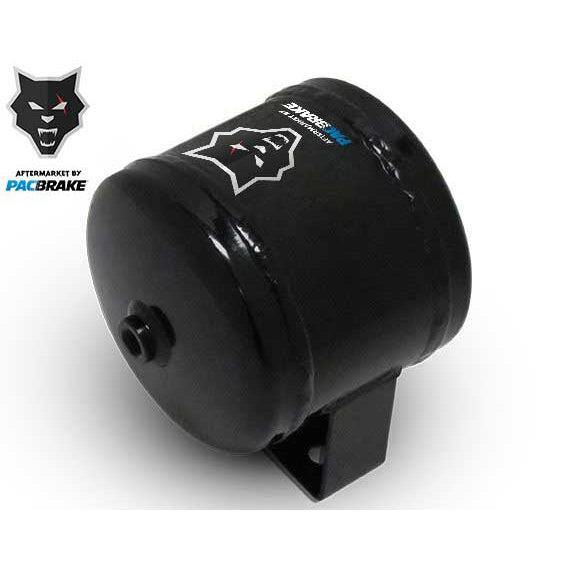

Tank Specs (C11940)

• Ports: 2 x ¼” (-4) NPT
• Rust Inhibitor: Applied to inside of tank
• Max Working Pressure: 150 psi
• Size: 6.4″ x 5.5″ x 6.5″ (LxWxH) [163 mm x 140 mm x 152 mm]
• Weight: 3.4 lbs [1.54 kg]
• Welded on Mounting Brackets

Curly hose & Air Accessories Kit (C11657)

• Fill your tires and check tire pressure
• Inflate air mattresses, sports balls, beach toys, etc.
• Blow air for cleaning, dusting and quick removal of
  dust and debris
