Description

Discontinued

Fits: Universal

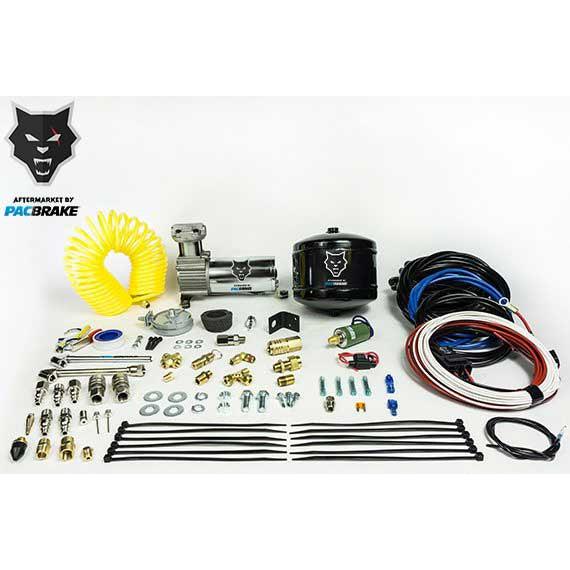

Take complete command of your vehicle with the wireless control onboard air combo kit from Pacbrake, featuring Pacbrake's popular wireless control kit and 0.5-gallon onboard air kit into one package!

The Pacbrake Wireless Controls are a universal fit – They fit the frame of any vehicle, work with any air spring on the market or with any existing onboard air system with a MAX of 150psi. They can also be easily installed with common mechanic tools under 1 hour - no lines or wires to the cab and no drilling required

Part Number: HP10406

Features

Wireless Control Specs (HP10325)

An easy-to-use app that reads real-time pressure feedback within each air spring. The app has 3 built-in memory presets so you can quickly achieve your desired air spring pressure.
Military-grade solenoids designed to withstand extreme environments
IP67-rated controller that is waterproof and debris resistant
Accessible components offer ease of serviceability and replacement of parts
Pre-assembled plug-and-play harnesses for easy install

Included for install:

Pacbrake Wireless Controls air board assembly (controller, solenoid block, pressure sensors and harnesses)
Phone app (For use with iOS™ and Android™ devices)
Air lines, pressure connectors & mounting hardware

Compressor Specs (HP10143)

33% Duty Cycle (20 minutes @ 100 PSI)
150 PSI Max Working Pressure
1.2 SCFM
158°F Max / -40°F Ambient Temperature Range
Size: 8.7″ x 4″ x 6.2″ (LxWxH)
Weight: 5.5 lbs
Mountable in any orientation

Tank Specs (C11940)

Ports: 2 x ¼” (-4) NPT
Rust Inhibitor: Applied to inside of tank
Max Working Pressure: 150 psi
Size: 6.4″ x 5.5″ x 6.5″ (LxWxH) [163 mm x 140 mm x 152 mm]
Weight: 3.4 lbs [1.54 kg]
Welded on Mounting Brackets

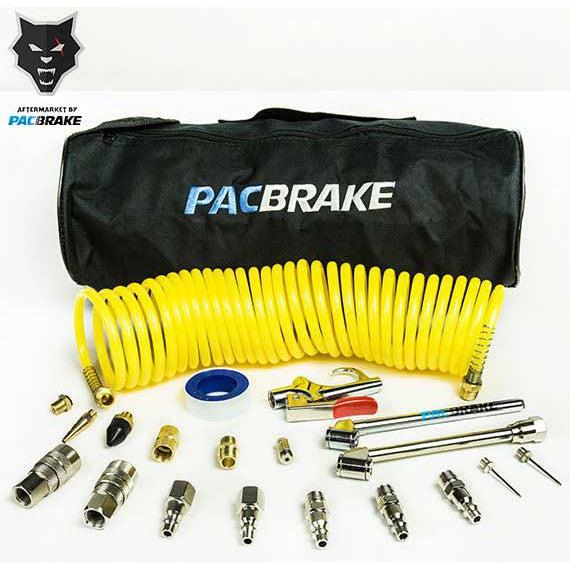

Curly hose & Air Accessories Kit (C11657)

Fill your tires and check tire pressure
Inflate air mattresses, sports balls, beach toys, etc.
Blow air for cleaning, dusting and quick removal of
dust and debris
